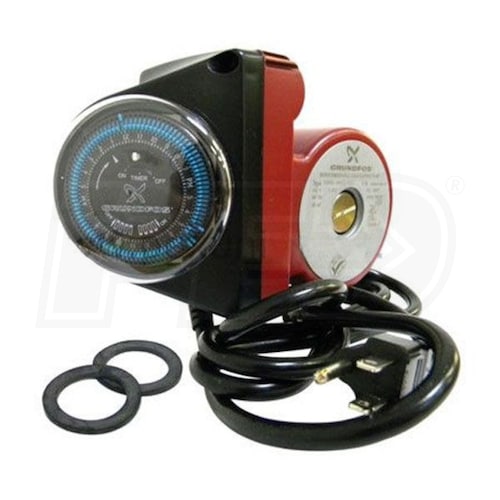

Grundfos UP - 1/12 HP - Single-Speed Circulation Pump - Stainless Steel - GU 125 Union - Check Valve + Timer

Grundfos UP - 1/12 HP - Single-Speed Circulation Pump - Stainless Steel - GU 125 Union - Check Valve + Timer
Our Price
Compare Prices
Shipping Info
Model: 59896777
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (10)
Write A Review
$282.00
In-Stock
Ships Monday, Oct 22nd
Free Shipping

In-Stock
Ships Monday, Oct 22nd
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 10
    Reviews
  • 3
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UP15-29SUC/TLC is a single speed circulator with an integrated flow check valve, limiting water flow to a single direction. Solid stainless steel construction guarantees years of reliable performance with minimal maintenance needs, while a line cord electrical connection supplies power to the pump with a simple outlet.
  • Durable Stainless Steel Construction
  • The Grundfos UP15-29SUC/TLC is crafted from stainless steel, which gives the pump both extended lifespan and protection against corrosion.
  • Whisper Quiet Operation
  • The UP15-29SUC/TLC pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
  • Resilient Wet-Rotor Fluid Movement
  • The wet rotor design of the UP15-29SUC/TLC lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.
Specifications
General Information
Product Line
UP15-29
Speed Settings
Single-Speed
Control Type
Timer
Connection Type
NPSM Union
Mount Type
In-Line
Material
Stainless Steel
Check Valve
Yes
Drive Type
Wet Rotor
Performance
Maximum Head
9.84 Feet
Maximum Flow Rate
20.7 GPM
Maximum Operating Pressure
145 PSI
Minimum Fluid Temperature
35.6 F
Maximum Fluid Temperature
230 F
Horsepower
0.083333333
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.75 Amps
Dimensions
Product Height
5.875 Inches
Product Width
4.65625 Inches
Product Depth
5.5 Inches
Product Weight
6.2 Pounds
Flange Connection
GU 125
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Features
Features
    Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UP15-29SUC/TLC is a single speed circulator with an integrated flow check valve, limiting water flow to a single direction. Solid stainless steel construction guarantees years of reliable performance with minimal maintenance needs, while a line cord electrical connection supplies power to the pump with a simple outlet.
  • Durable Stainless Steel Construction
  • The Grundfos UP15-29SUC/TLC is crafted from stainless steel, which gives the pump both extended lifespan and protection against corrosion.
  • Whisper Quiet Operation
  • The UP15-29SUC/TLC pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
  • Resilient Wet-Rotor Fluid Movement
  • The wet rotor design of the UP15-29SUC/TLC lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.
Specifications
General Information
Product Line
UP15-29
Speed Settings
Single-Speed
Control Type
Timer
Connection Type
NPSM Union
Mount Type
In-Line
Material
Stainless Steel
Check Valve
Yes
Drive Type
Wet Rotor
Performance
Maximum Head
9.84 Feet
Maximum Flow Rate
20.7 GPM
Maximum Operating Pressure
145 PSI
Minimum Fluid Temperature
35.6 F
Maximum Fluid Temperature
230 F
Horsepower
0.083333333
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.75 Amps
Dimensions
Product Height
5.875 Inches
Product Width
4.65625 Inches
Product Depth
5.5 Inches
Product Weight
6.2 Pounds
Flange Connection
GU 125
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Product Specs
+
Specifications
General Information
Product Line
UP15-29
Speed Settings
Single-Speed
Control Type
Timer
Connection Type
NPSM Union
Mount Type
In-Line
Material
Stainless Steel
Check Valve
Yes
Drive Type
Wet Rotor
Performance
Maximum Head
9.84 Feet
Maximum Flow Rate
20.7 GPM
Maximum Operating Pressure
145 PSI
Minimum Fluid Temperature
35.6 F
Maximum Fluid Temperature
230 F
Horsepower
0.083333333
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.75 Amps
Dimensions
Product Height
5.875 Inches
Product Width
4.65625 Inches
Product Depth
5.5 Inches
Product Weight
6.2 Pounds
Flange Connection
GU 125
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Reviews
(10)
+
Grundfos 59896777 Reviews & Ratings
100% of Reviewers Recommend This Product
Product Q&A
(3)
+
Search Product Q&A's Answered by Bob, the Heating Product Expert
icon-social-fb1
+
Can this pump work upside down? That is installed vertically but the flow goes from above to below?
Robert
from Illinois
December 31, 2015
Answer
The pump can be installed in any orientation as long as the motor shaft is located horizontally. It is also best practice to have the terminal box on one side of the pump with the conduit entry facing down. Details can be found in the installation manual on page 7.
+
How do I set the timer?
Maryann
from California
October 21, 2015
Answer
You can find instructions for setting and operating the Grundfos UP-15 timer control on page two of this manual.

Thanks for your question!
+
My pump froze. Is there more to changing out the pump than shutting both gate valves and undoing the 4 bolts?
Mike
from California
September 19, 2015
Answer
As long as there are isolation valves on either side of the pump, you should be okay. You might need new flanges if they are leaking. Please refer to the Grundfos UP Installation Manual for more details.
