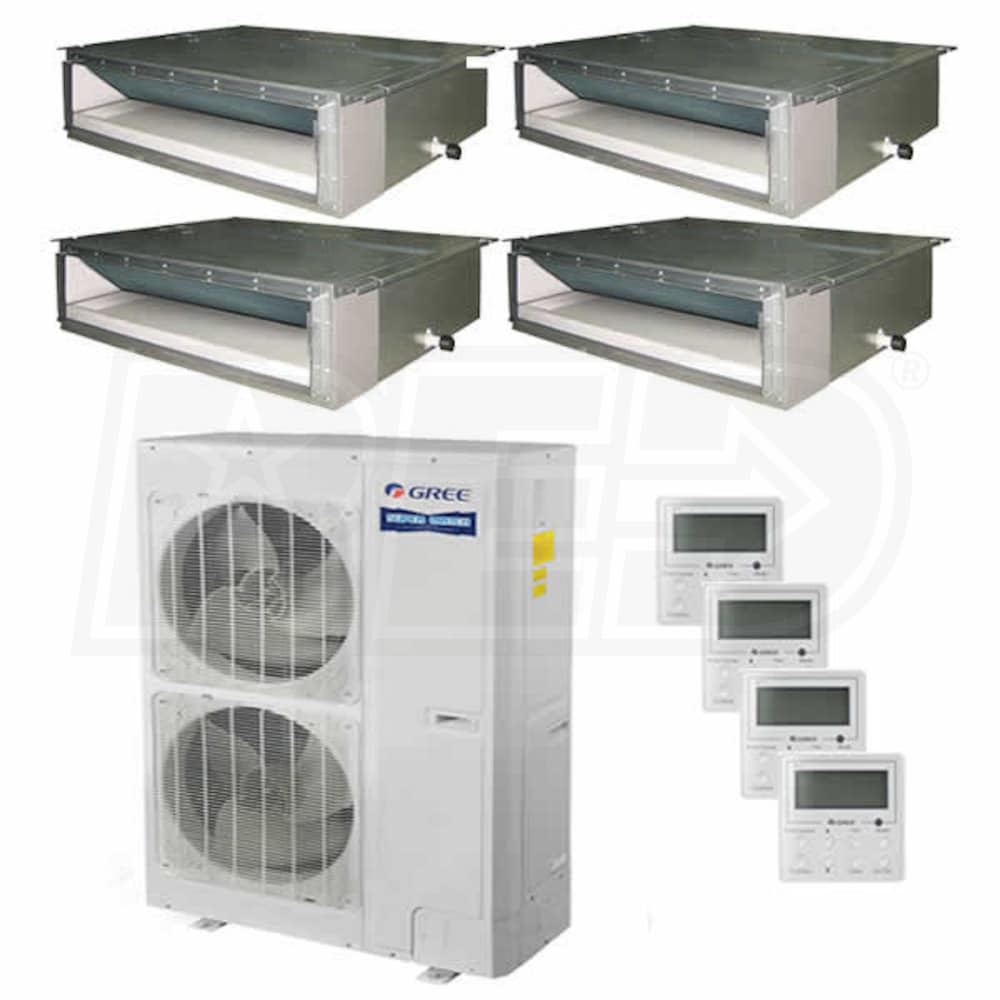

Gree Concealed Duct 4-Zone System - 56,000 BTU Outdoor - 9k + 12k + 18k + 18k Indoor - 16.0 SEER
Model:
G4H56D09121818
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
5
These accessories are required to properly setup/install this product.
Model: UC1636-3
$44.00
In-Stock
Model: MSPLTKIT2-143850
Length (ft)
$486.61
In-Stock
$36.00
In-Stock
$13.94
In-Stock
$105.62
In-Stock
Optional Accessories
6
Model: MLS143812-25
Length (ft)
$200.00
In-Stock
Model: MSCABLE144-25
$45.00
In-Stock
Model: DRAINTUBING-25
$28.00
In-Stock
$35.00
In-Stock
Model: WS-1
$75.00
In-Stock
$13.94
In-Stock
Features
- Intelligent Defrost
- By monitoring the outdoor coil for frost build up, the Intelligent Defrost function increases room comfort and saves energy by eliminating unnecessary defrost cycles.
- Time Guard
- The Time Guard function prevents damaging rapid cycling of the MULTI56HP230V1AO. A protective three-minute time delay restricts compressor restarts after shutoff.
- Gold Fin Condenser
- This corrosion-resistant coating is made with a gold-colored anti-corrosion epoxy. This maintains excellent heat transfer properties while extending coil life and protecting against damage from salty coastal air.
- Flexible Return Air From Bottom Or Rear
- With the ability have return air enter through the bottom or rear of the unit, Gree's concealed duct units give you multiple installation options.
- Condensate Sentry
- This fail safe mechanism recgonizes when there is a high level in the condensate pan and shuts off the system to prevent overflow problems.
- Multiple Fan Speeds
- The indoor fan can run at up to three different speeds (Low, Medium or High) for either cooling or heating mode.
- Built-In Condensate Lift Pump
- The DUCT indoor unit features a built-in drain pump that lifts condensation up to 11 inches above the drain pan to assist in removing condensate.
- Timer Mode
- The G2H18D09090000 system can be programmed to turn ON or OFF after a specific anount of time. The time period is adjustable between half an hour and 24 hours.
- (1) Gree - 56k BTU - Outdoor Condenser - For 2-9 Zones (MULTI56HP230V1AO)

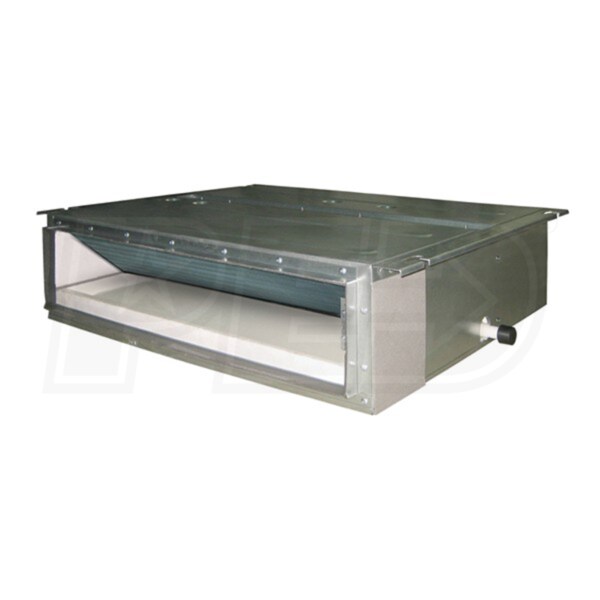

- (2) Gree - 18k BTU - Concealed Duct Unit - For Multi-Zone (DUCT18HP230V1AD)

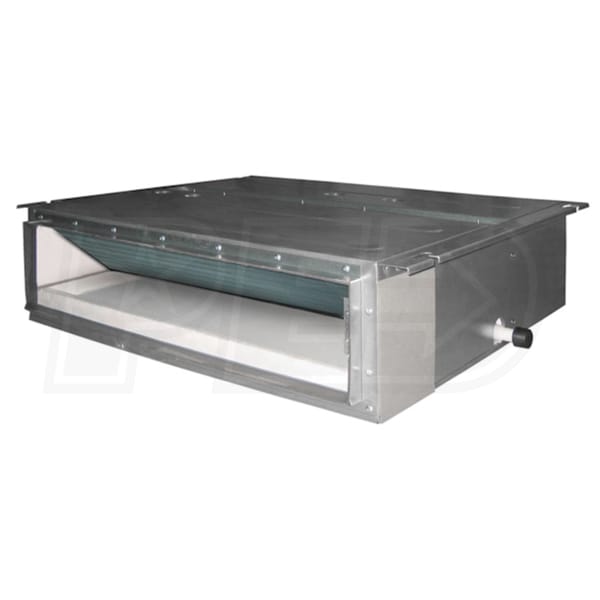

- (1) Gree - 12k BTU - Concealed Duct Unit - For Multi-Zone (DUCT12HP230V1AD)
- (1) Gree - 9k BTU - Concealed Duct Unit - For Multi-Zone (DUCT09HP230V1AD)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Branch Box - A Gree branch box is required to connect this condenser to Gree mini split indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
- Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
- Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
A global leader in home comfort, Gree has manufactured one in every three air conditioners in the world. The G4H56D09121818 pairs a Gree +Multi outdoor condenser with concealed duct indoor units for a whole-home comfort solution. The indoor concealed duct units are designed to be concealed above suspended ceilings or within open closet spaces to deliver ducted air through ceiling or wall grilles. Concealed duct units offer greater flexibility in terms of air distribution and diffuser used. With its included wired remote controls the G4H56D09121818 provides easy to control comfort in any multi-zone application
Product Includes
Product Note
Each indoor unit will include any port adapters necessary for multi-zone installation. This product requires the following accessories for installation:
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Gree - 56k BTU - Outdoor Condenser - For 2-9 Zones (MULTI56HP230V1AO)
- (2) Gree - 18k BTU - Concealed Duct Unit - For Multi-Zone (DUCT18HP230V1AD)
- (1) Gree - 12k BTU - Concealed Duct Unit - For Multi-Zone (DUCT12HP230V1AD)
- (1) Gree - 9k BTU - Concealed Duct Unit - For Multi-Zone (DUCT09HP230V1AD)
G4H56D09121818
General Information
Type
Ducted
Product Line
+Multi
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
4
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9 + 12 + 18 + 18
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
9.4
HSPF
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
8.2
Dimensions
Product Weight
476 Pounds
Shipping Weight
558 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
7117355
MULTI56HP230V1AO
General Information
Type
Outdoor Condenser
Product Line
Super Multi
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
9
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Branch Box Required
Branch Box Required
By making a single connection to the outdoor condenser, a branch box can supply the right amount of refrigerant to multiple indoor units. Learn More
Yes
Performance
Cooling BTU
56000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
57 dB
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
50 Amps
Dimensions
Maximum Line Length
476 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
53 Inches
Product Width
35 Inches
Product Depth
15 Inches
Product Weight
256 Pounds
Shipping Width
39 Inches
Shipping Height
55 Inches
Shipping Depth
18 Inches
Shipping Weight
276 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
DUCT18HP230V1AD
General Information
Type
Air Handler
Product Line
DUCT
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A

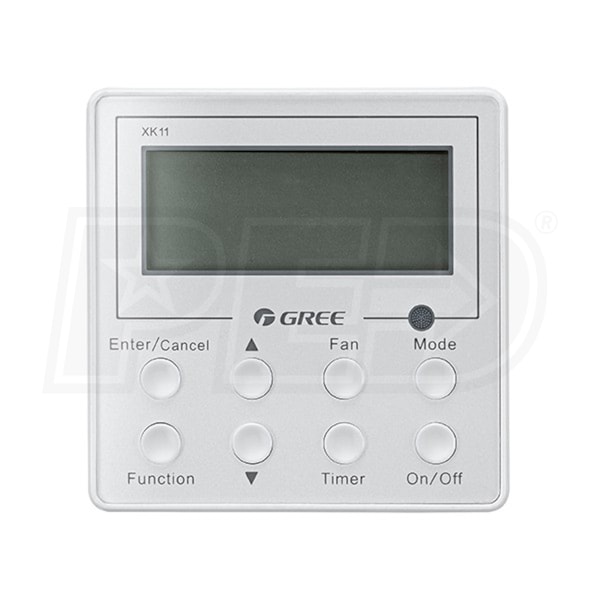

Remote Control
Wired
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Installation Location
Indoor
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Maximum Air Flow
412 CFM
Minimum Air Flow
294 CFM
Minimum Sound Level
33 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
41 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
7 43/48 Inches
Product Width
35 19/48 Inches
Product Depth
24 5/24 Inches
Product Weight
69.4 Pounds
Shipping Width
44 Inches
Shipping Height
29 Inches
Shipping Depth
12 Inches
Shipping Weight
79.2 Pounds
Liquid Valve Connection Size
1/4 Inch
Suction Valve Connection Size
1/2 Inch
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
DUCT12HP230V1AD
General Information
Type
Air Handler
Product Line
DUCT
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wired
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
324 CFM
Minimum Air Flow
177 CFM
Minimum Sound Level
32 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
39 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
7 43/48 Inches
Product Width
27 29/48 Inches
Product Depth
24 5/24 Inches
Product Weight
50.6 Pounds
Shipping Width
35 Inches
Shipping Height
29 Inches
Shipping Depth
12 Inches
Shipping Weight
63.8 Pounds
Liquid Valve Connection Size
1/4 Inch
Suction Valve Connection Size
3/8 Inch
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
DUCT09HP230V1AD
General Information
Type
Air Handler
Product Line
DUCT
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wired
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Maximum Air Flow
265 CFM
Minimum Air Flow
147 CFM
Minimum Sound Level
31 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
37 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
7 43/48 Inches
Product Width
27 29/48 Inches
Product Depth
24 5/24 Inches
Product Weight
48.4 Pounds
Shipping Width
35 Inches
Shipping Height
29 Inches
Shipping Depth
12 Inches
Shipping Weight
69.4 Pounds
Liquid Valve Connection Size
1/4 Inch
Suction Valve Connection Size
3/8 Inch
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
