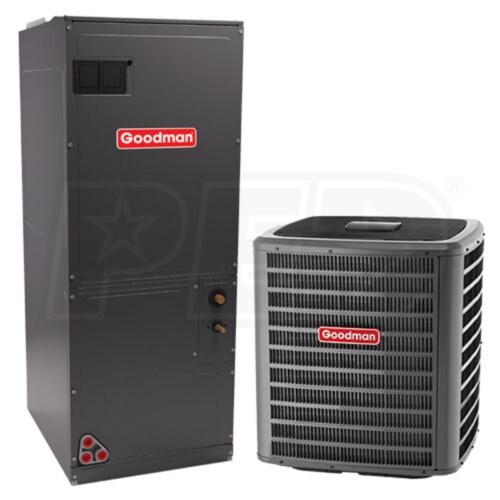

Goodman - 5 Ton Cooling - 59k BTU/Hr Heating - Heat Pump + Air Handler Kit - 17 SEER - 9.5 HSPF

Model:

GSZC180601 AVPTC61D14

Write a Review
Add to Cart for Best Price
Was $6,798.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 4-6 Weeks
synchrony card logo
$77 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Goodman - 5 Ton Cooling - 59k BTU/Hr Heating - Heat Pump + Air Handler Kit - 17 SEER - 9.5 HSPF
Goodman - 5 Ton Cooling - 59k BTU/Hr Heating - Heat Pump + Air Handler Kit - 17 SEER - 9.5 HSPF
Model: GSZC180601 AVPTC61D14
Add to Cart for Price
Was $6,798.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Chris, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing building the most reliable and refreshingly affordable indoor comfort products in the market. The complete line of Goodman brand products are built on the principles of founder Harold Goodman, a former air conditioning contractor. Building Goodman products to Harold's standards, and protecting those products with some of the best limited warranties in the industry, has helped to make the Goodman brand widely recognized as a leading brand in the residential and light commercial heating, ventilation and air conditioning industry today.
    Product Includes
    • (1) Goodman GSZC18 - 5 Ton - Heat Pump - 18 Nominal SEER - Two-Stage - R-410a Refrigerant (GSZC180601)
    • (1) Goodman AVPTC - 5.0 Ton - Air Handler - Multi-Position - Variable Speed ECM Blower (AVPTC61D14)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Goodman GSZC18 - 5 Ton - Heat Pump - 18 Nominal SEER - Two-Stage - R-410a Refrigerant (GSZC180601)
  • (1) Goodman AVPTC - 5.0 Ton - Air Handler - Multi-Position - Variable Speed ECM Blower (AVPTC61D14)
GSZC180601 AVPTC61D14
specs product image PID-89640
General Information
Operating Mode Learn More
Heating and Cooling
Configuration Learn More
Multi-Position
DOE Regional Compliance Learn More
Nationwide
Installation Available
Yes
Performance
Capacity Learn More
5.0 Tons
Cooling Capacity
56000 BTU
Nominal Cooling Capacity
60000 BTU
Heating Capacity
59000 BTU
SEER Learn More
17.0
EER Learn More
12.5
HSPF Learn More
9.5
Maximum Air Flow
1790 CFM
Dimensions
Product Weight
486 Pounds
Shipping Weight
506 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
10570274
GSZC180601
General Information
Type
Condenser
Product Line
GSZC18
Operating Mode Learn More
Heating and Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages Learn More
Two Stage
DOE Regional Compliance Learn More
Nationwide
Installation Available
Yes
Performance
Capacity Learn More
5.0 Tons
Cooling BTU
60000
Cooling Capacity
57000 BTU
Heating Capacity
60000 BTU
SEER Learn More
18.0
Maximum Sound Level Learn More
75 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
31 Amps
Recommended Breaker Size
50 Amps
Dimensions
Suction Connection Size
1 1/8 Inches
Liquid Connection Size
3/8 Inch
Product Height
40 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Product Weight
319 Pounds
Shipping Weight
339 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Limited* 10 Years Years
Compressor Warranty
LIFETIME Years
AVPTC61D14
General Information
Type
Air Handler
Product Line
AVPTC
Refrigerant Type
R-410A
Blower Motor
Variable-Speed
Motor Type
ECM
Configuration Learn More
Multi-Position
Installation Location
Indoor
Installation Available
Yes
Performance
Capacity Learn More
5.0 Tons
Cooling BTU
60000
Maximum Air Flow
2035 CFM
Minimum Air Flow
1360 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
9 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
58 Inches
Product Width
24 1/2 Inches
Product Depth
21 Inches
Product Weight
112 Pounds
Shipping Weight
167 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
5 Years
Parts Warranty Learn More
10 Limited Years
