Goodman GSZC180601
Goodman GSZC180601
Hover to zoom
1 Of 5

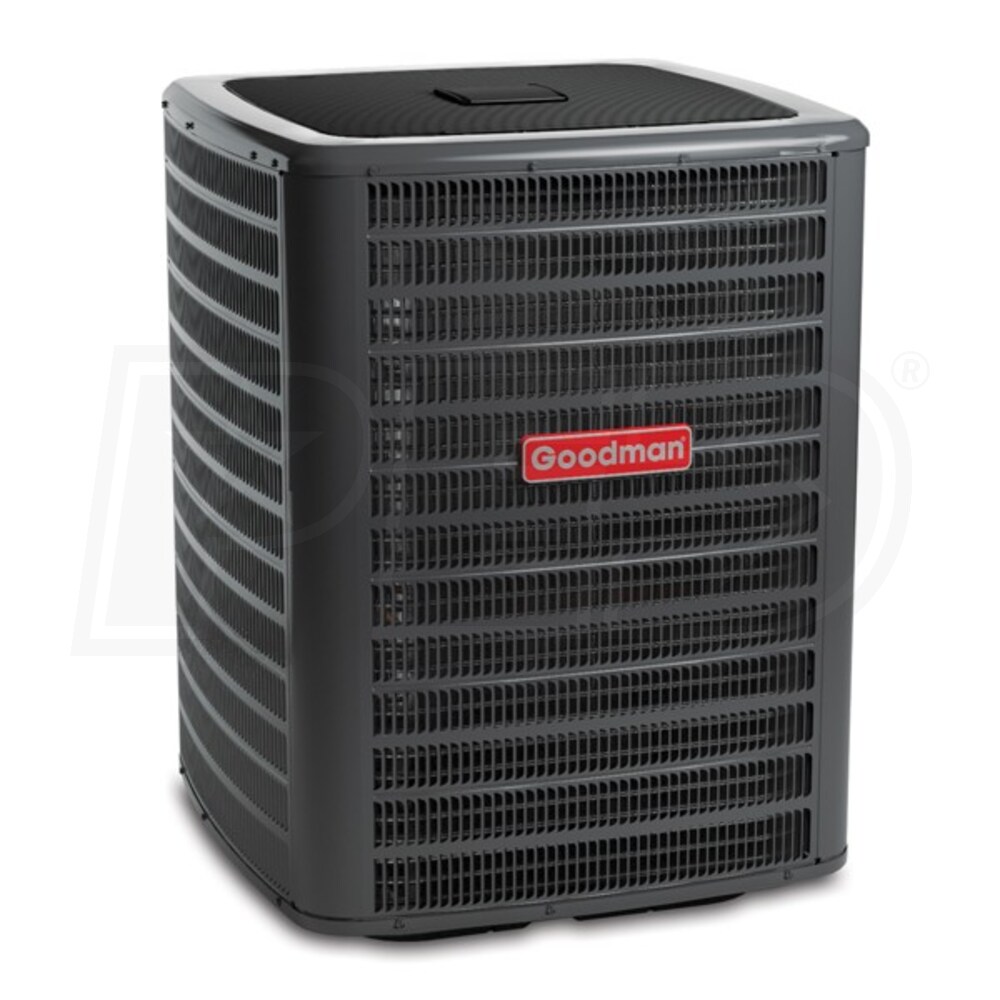

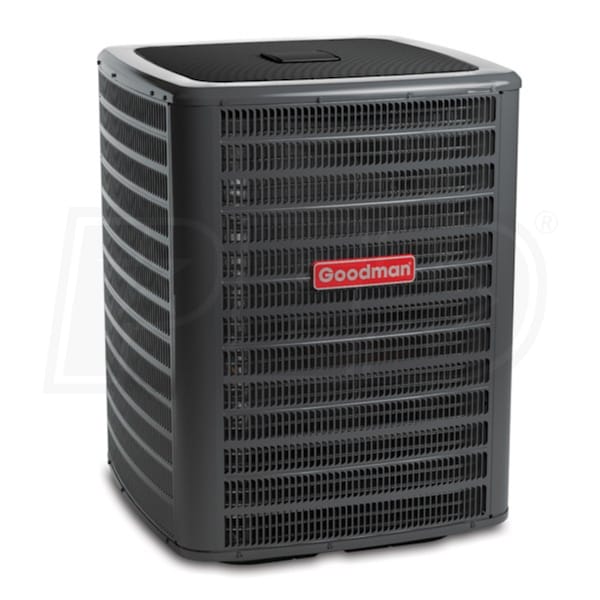

Goodman GSZC18 - 5 Ton - Heat Pump - 18 Nominal SEER - Two-Stage - R-410a Refrigerant

Model:

GSZC180601

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Goodman GSZC18 - 5 Ton - Heat Pump - 18 Nominal SEER - Two-Stage - R-410a Refrigerant
Goodman GSZC18 - 5 Ton - Heat Pump - 18 Nominal SEER - Two-Stage - R-410a Refrigerant
Model: GSZC180601
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Goodman established itself as the largest HVAC manufacturer in the US by producing high-quality, efficient equipment for homeowners at a great value. The GSZC18 heat pump is an incredibly efficient heating and cooling solution. With a SEER rating of 18 and an HSPF rating up to 10.0, you can count on low energy usage regardless of the application. The savings don't stop at energy costs though; the GSZC180601's design reduces installation and service times. It features a two-stage compressor to ensure steady comfort and includes advanced components that protect the coil and compressor for peace of mind and reliable operations.
  • Quiet Comfort
  • The wire fan discharge grille and condenser fan motor of the GSZC180601 were designed to reduce noise levels without compromising performance. A discharge muffler and a foam sound blanket reduce vibrational and compressor noise, respectively.
  • Filter Drier
  • A biflow filter drier is installed in the liquid line of this heat pump. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the heat pump.
  • Secure Cabinet
  • The cabinet of the GSZC180601 is built to last. Galvanized steel construction, a durable powder paint finish, rust-resistant screws, and a steel coil guard protect your equipment from wear and tear, increasing its longevity.
  • SmartShift
  • Goodman's SmartShift technology, combined with ambient and coil temperature sensors, gives this unit a quiet and effective defrost system. SmartShift also helps to prevent short-cycling, increasing the efficiency of defrost operations.
  • UltraTech Compressor
  • A two-stage Copeland UltraTech scroll compressor provides the GSZC180601 with incredibly reliable refrigerant flow. The second stage increases efficiency by allowing the compressor to operate at a lower capacity when your demand is low.
  • Compressor Protection
  • Goodman installed two layers of compressor protection in the GSZC180601. A suction accumulator collects excess refrigerant, while a crankcase heater ensures that the compressor stays well-oiled by maintaining a temperature that limits oil migration.
  • ComfortAlert
  • The included ComfortAlert compressor diagnostics module reduces the average time of maintenance calls and virtually eliminates misdiagnoses by experienced technicians, saving you money throughout the life of the heat pump.
  • ComfortBridge Compatible
  • This heat pump is compatible with Goodman's ComfortBridge communicating controls. A ComfortBridge control shortens the installation and maintenance processes further by automatically detecting your equipment and providing diagnostics and troubleshooting.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Product Note
    The recommended line set size for this unit will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. | The US Department of Energy regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions. We are required to abide by these regulations when selling products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please call or email us for help.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

GSZC180601
specs product image PID-82417
Overview
Product Category
Heat Pump
UPC
663051563872
General Information
Type
Heat Pump Condenser
Product Line
GSZC18
Product Category
Heat Pump
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5.0 Tons
Cooling BTU
60000
Cooling Capacity
57000 BTU
Heating Capacity
60000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
18.0
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
75 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
31 Amps
Recommended Breaker Size
50 Amps
Dimensions
Suction Connection Size
1 1/8 Inches
Liquid Connection Size
3/8 Inch
Product Height
40 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Product Weight
319 Pounds
Shipping Weight
339 Pounds
Certifications
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years Years
Compressor Warranty
LIFETIME Years

Reviews

(7)
Goodman GSZC180601 Reviews & Ratings
