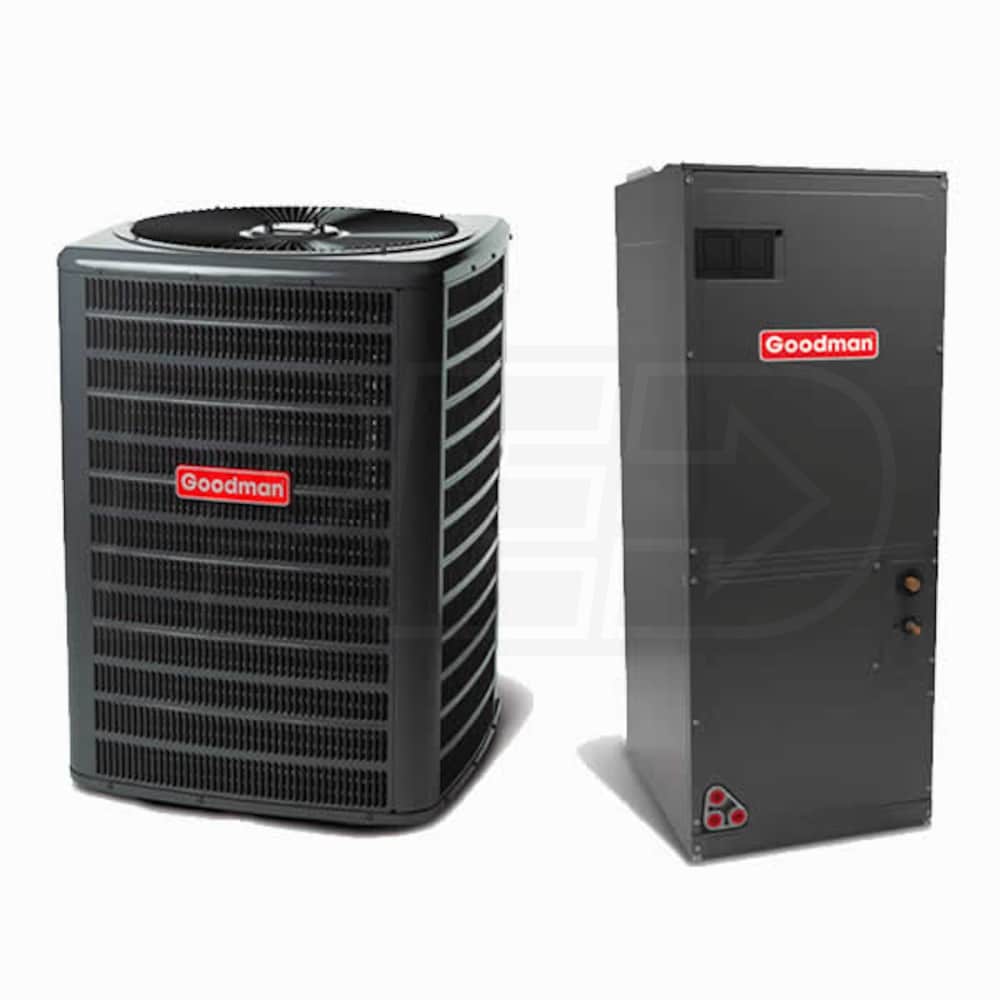

Goodman - 2.0 Ton Cooling - 24k BTU/Hr Heating - Heat Pump + Air Handler System - 16.0 SEER - 9.0 HSPF

Model:

GSZ1624ASPT

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Goodman - 2.0 Ton Cooling - 24k BTU/Hr Heating - Heat Pump + Air Handler System - 16.0 SEER - 9.0 HSPF
Goodman - 2.0 Ton Cooling - 24k BTU/Hr Heating - Heat Pump + Air Handler System - 16.0 SEER - 9.0 HSPF
Model: GSZ1624ASPT
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    A Goodman central air package is the perfect way to upgrade your home's HVAC system. The GSZ1624ASPT features a GSZ16 heat pump to provide both heating and cooling for your entire home. Goodman heat pumps feature aluminum fins with increased surface area, designed to maximize efficiency. When paired with a multi-speed air handler, specifically picked to optimize the heat pump with multiple air speed settings, this system provides efficient, economic comfort year round.
  • Advanced Coil Design
  • The condenser coil of this heat pump is designed with aluminum fins and rifled copper tubing to maximize efficiency. The fins and rifling serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.
  • Quiet Comfort
  • Goodman takes great pride in providing comfort that doesn't disrupt your home. The louvered top and three-bladed fan of the GSZ160241 were designed to reduce noise levels without compromising performance.
  • SmartShift
  • Goodman's SmartShift technology, combined with ambient and coil temperature sensors, gives this unit a quiet and effective defrost system. SmartShift also helps to prevent short-cycling, increasing the efficiency of defrost operations.
  • High-Efficiency Compressor
  • This unit utilizes a high-efficiency scroll compressor to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
  • All-Aluminum Coil
  • Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area for the air handler and optimizes heat transfer for efficient comfort.
  • Energy-Efficient Circulation
  • PSC blower motors are energy hogs. The ECM motor in the ASPT29B14 provides more efficient, more intelligent airflow for your home.
  • Dehumidification
  • Goodman's air handlers make it easy to stay cool. The ASPT29B14 is designed to remove moisture from the air, letting you feel cool at higher temperatures.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Internal Thermostatic Expansion Valve
  • The ASPT Series Air Handler has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.
  • Product Includes

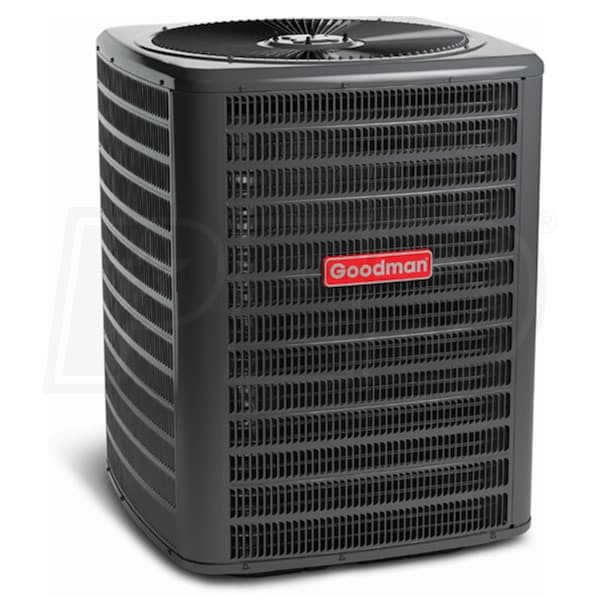

    • (1) Goodman GSZ16 - 2 Ton - Heat Pump - 16 Nominal SEER - Single-Stage - R-410A Refrigerant (GSZ160241)
    • (1) Goodman ASPT - 2 Ton - Air Handler - Multi-Position - ECM Motor (ASPT29B14)
    Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Goodman GSZ16 - 2 Ton - Heat Pump - 16 Nominal SEER - Single-Stage - R-410A Refrigerant (GSZ160241)
  • (1) Goodman ASPT - 2 Ton - Air Handler - Multi-Position - ECM Motor (ASPT29B14)
GSZ1624ASPT
specs product image PID-76010
Overview
Product Category
Heat Pump & Air Handler Package
General Information
Product Category
Heat Pump & Air Handler Package
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling Capacity
24000 BTU
Nominal Cooling Capacity
24000 BTU
Heating Capacity
24000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
13.0
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
9.0
Maximum Air Flow
800 CFM
Dimensions
Product Weight
309 Pounds
Shipping Weight
329 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
8331270
GSZ160241
General Information
Type
Heat Pump Condenser
Product Line
GSZ16
Product Category
Heat Pump
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling BTU
24000
Cooling Capacity
24000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
75 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15 Amps
Recommended Breaker Size
25 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
34 5/8 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Product Weight
180 Pounds
Shipping Weight
200 Pounds
Certifications
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years Years
Overview
Product Category
Heat Pump
ASPT29B14
General Information
Type
Air Handler
Product Line
ASPT
Product Category
Air Handler
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Motor Type
EEM
Mount Type
Multi-Position
Installation Location
Indoor
Electric Heat
Available
Installation Available
Yes
TXV Installed
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling BTU
24000
Maximum Air Flow
1505 CFM
Minimum Air Flow
595 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
6 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
17 1/2 Inches
Product Height
53 7/16 Inches
Product Width
17 1/2 Inches
Product Depth
21 Inches
Product Weight
105 Pounds
Shipping Weight
129 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
Overview
Product Category
Air Handler
