Features
- All-Aluminum Coil
- Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
- Energy-Efficient Circulation
- PSC blower motors are energy hogs. The ECM motor in the ASPT29B14 provides more efficient, more intelligent airflow for your home.
- Dehumidification
- Goodman's air handlers make it easy to stay cool. The ASPT is designed to remove moisture from the air, letting you feel cool at higher temperatures.
- SmartFrame™
- This air handler features Goodman's SmartFrame™ sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.
- Secure Cabinet
- This air handler enjoys reduced noise levels, less than 2% air leakage, and enhanced durability as a result of its insulated, embossed cabinet design.
- Condensate Management
- The ASPT's design includes molded diverters, foil-faced insulation, and screw-less construction that help prevent the formation of condensation and keep your system running smoothly.
- Extended Warranty
- Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
- Internal Thermostatic Expansion Valve
- The ASPT Series Air Handler has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.

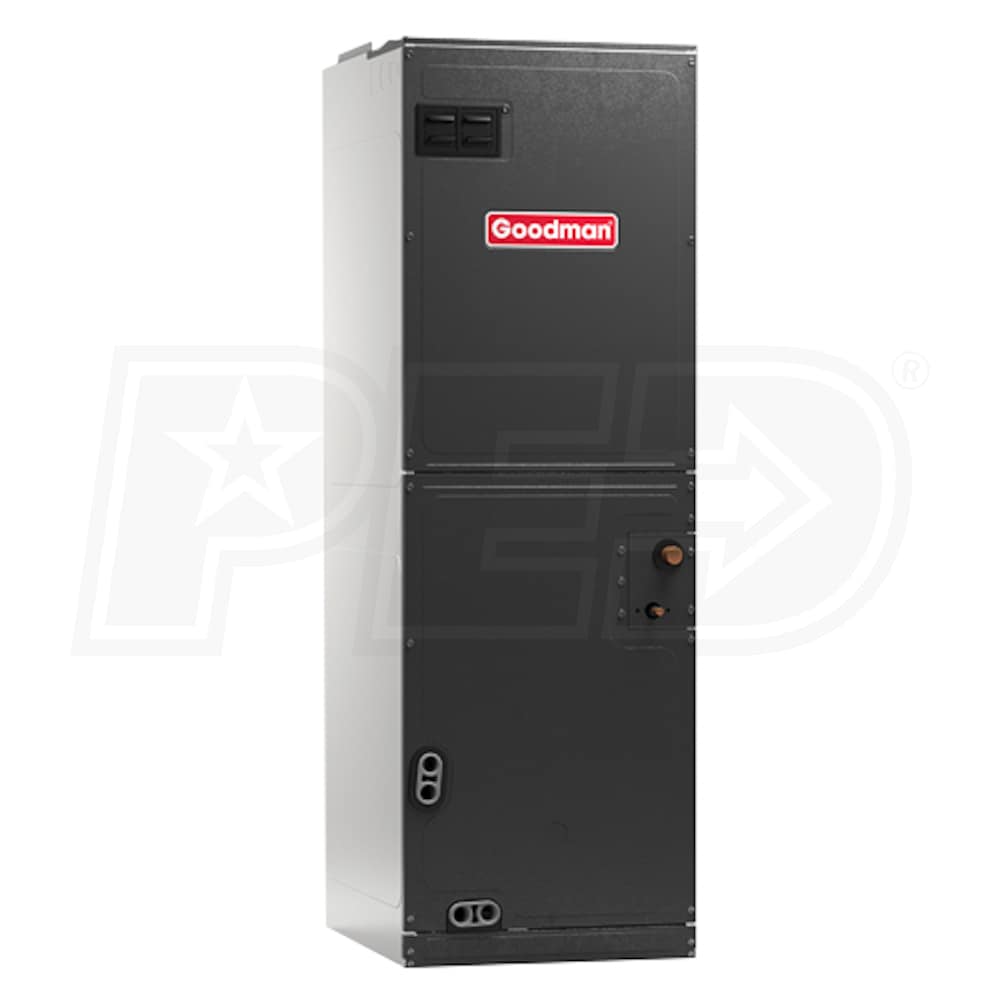

Overview for Goodman ASPT29B14 Air Conditioner Air Handler
The Goodman ASPT29B14 Air Conditioner Air Handler is factory-sealed to achieve a 2% or less leakage rate and the cabinet is fully painted in an Architectural Gray finish. The Goodman ASPT29B14 Air Conditioner Air Handler feature a direct-drive, multi-speed ECM blower motor. Also the Goodman ASPT29B14 Air Conditioner Air Handler reduces the likelihood of hot and cold spots in the house and provides increased efficiency over standard efficiency motors. All functional parts are covered by a 10-Year Parts Limited Warranty.
The Goodman ASPT ASPT29B14 Multi speed, Multi position Air Handler Electric Furnace with ECM Motor
The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort.
The Goodman ASPT29B14 Air Conditioner Air Handler is factory-sealed to achieve a 2% or less leakage rate and the cabinet is fully painted in an Architectural Gray finish. The Goodman ASPT29B14 Air Conditioner Air Handler feature a direct-drive, multi-speed ECM blower motor. Also the Goodman ASPT29B14 Air Conditioner Air Handler reduces the likelihood of hot and cold spots in the house and provides increased efficiency over standard efficiency motors. All functional parts are covered by a 10-Year Parts Limited Warranty.
The Goodman ASPT ASPT29B14 Multi speed, Multi position Air Handler Electric Furnace with ECM Motor
The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
ASPT29B14
Overview
Product Category
Air Handler
UPC
663051550001
Additional Model Numbers
ASPT29B14, ASPT29B14
General Information
Type
Air Handler
Product Line
ASPT
Product Category
Air Handler
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Motor Type
EEM
Mount Type
Multi-Position
Installation Location
Indoor
Electric Heat
Available
Installation Available
Yes
TXV Installed
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling BTU
24000
Maximum Air Flow
1505 CFM
Minimum Air Flow
595 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
6 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
17 1/2 Inches
Product Height
53 7/16 Inches
Product Width
17 1/2 Inches
Product Depth
21 Inches
Product Weight
105 Pounds
Shipping Weight
129 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
Reviews
(3)
Goodman ASPT29B14 Reviews & Ratings
Powerful And Doing The Job Nicely
By Kyle D
Southborough, Massachusetts
Purchased 06/06/2019 |
Review Posted 07/24/2019
This air handler has been installed and is adequately serving the purpose it was intended to serve. We aren't using it's full capacity and I am happy that it is suitably doing it's job.
Kyle D Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
5/5
Pros:
Easy To Use, Price
Love Goodman and eComfort
By Paul S
NORTH ANDOVER, Massachusetts
Purchased 08/21/2018 |
Review Posted 09/21/2018
I was skeptical about Goodman. I’ve always had Carrier but I have to say this is equal quality and performance at a fraction of the cost. eComfort has also been a great company to work with. You can’t go wrong with Goodman. I would definitely recommend
Paul S Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Easy to configure unit.
By William G.
Boca Raton, Florida
Purchased 07/07/2018 |
Review Posted 08/01/2018
This unit works in vertical or horizontal positions. I removed the horizontal drain pan, as directed by the manual, to optimize vertical air flow. It states it is not required but I want better air flow. The A coil in my 5 ton unit is massive but slides out easily. This is a well constructed unit.
William G. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
