Hover to zoom
1 Of 5

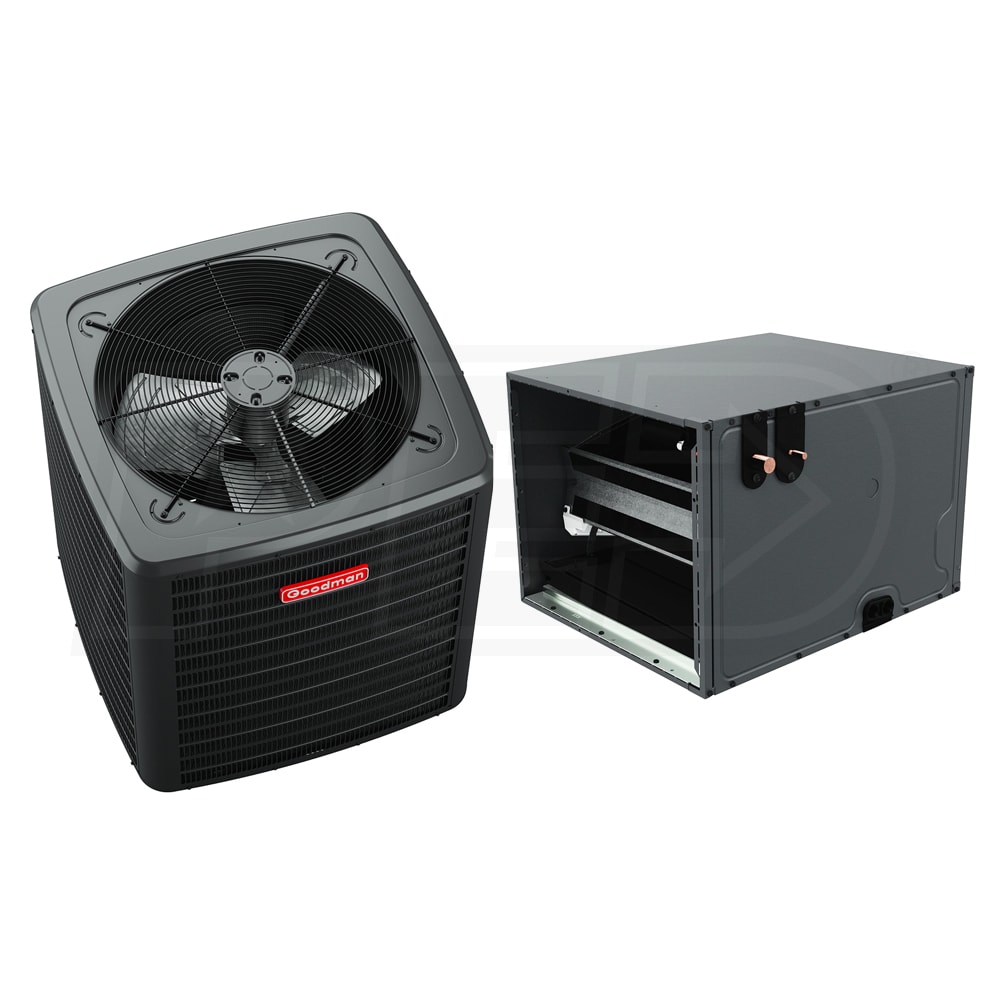

Goodman - 2.0 Ton Cooling - Air Conditioner + Coil Kit - 14.3 SEER2 - 21" Coil Width - For Horizontal Installation
Model:
GSXM402410 CHPTA2426C4
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Energy-Efficient Compressor
- This unit utilizes an energy-efficient compressor to provide refrigerant flow.
- Copper Tube/Enhanced Aluminum Fin Coil
- The condenser coil of this air conditioner is designed with aluminum fins and copper tubing to maximize efficiency. The fins serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.
- Factory-Installed Filter Drier
- A filter drier is installed in the liquid line of this air conditioner. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the air conditioner.
- Heavy-Gauge Galvanized-Steel Cabinet
- This cabinet is built to last. Galvanized steel construction, a durable and attractive architectural gray powder-paint finish with 500-hour salt-spray approval, and a steel louver coil guard that protects your equipment from wear and tear.
- All-Aluminum Coil
- Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
- Secure Cabinet
- A galvanized, embossed, and insulated cabinet protects this coil and prevents air leakage, providing superior longevity and efficiency.
- Condensate Management
- The CHPTA features foil-faced insulation to inhibit the formation of condensate and a UV-resistant DecaBDE-free thermoplastic drain pan with secondary drain connections, keeping your system safe and operational.
- Optimized For R-410A Refrigerant
- The CHPTA is compatible with R-410A refrigerant and makes it the perfect fit for any homeowner.
- Internal Thermostatic Expansion Valve
- The CHPTA has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.
- Extended Warranty
- Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
- (1) Goodman GSXM4 - 2.0 Ton - Air Conditioner - 14.3 SEER2 - Single Stage - R-410A Refrigerant - Multi-Family (GSXM402410)
- (1) Goodman CHPTA - 2.0 Ton - Horizontal A Coil - Cased - TXV Included - 21" Width (CHPTA2426C4)
The Goodman GSXM402410 CHPTA2426C4 kit includes an outdoor condenser and evaporator coil to complete your home's central air system. The powerful GSXM4 air conditioner features an advanced condenser coil design that provides efficient and reliable cooling. The CHPTA2426C4 evaporator coil fits directly onto your existing 21" furnace or air handler cabinet, allowing conditioned air to be circulated into your home. The GSXM4's galvanized steel construction paired with the all-aluminum evaporator coil design ensures your cooling system stays effective and efficient for years to come.
Product Includes
Product Note
The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Goodman GSXM4 - 2.0 Ton - Air Conditioner - 14.3 SEER2 - Single Stage - R-410A Refrigerant - Multi-Family (GSXM402410)
- (1) Goodman CHPTA - 2.0 Ton - Horizontal A Coil - Cased - TXV Included - 21" Width (CHPTA2426C4)
GSXM402410 CHPTA2426C4
General Information
Product Category
Air Conditioner & Coil Package
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Coil Width
21 Inches
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling Capacity
24000 BTU
Nominal Cooling Capacity
24000 BTU
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
14.3
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
11.7
Dimensions
Product Weight
248 Pounds
Shipping Weight
228 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
208790089
GSXM402410
General Information
Type
Condenser
Product Line
GSXM4
Product Category
Air Conditioning Condensers
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling BTU
24000
Cooling Capacity
24000 BTU
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
73 dB
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
14.3
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15.4 Amps
Recommended Breaker Size
25 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
29 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
151 Pounds
Shipping Weight
169 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
No
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years Years
Compressor Warranty
LIFETIME Years
CHPTA2426C4
General Information
Type
Evaporator Coil
Product Line
CHPTA
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Installation Available
Yes
TXV Installed
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling BTU
24000
Nominal Minimum Cooling Capacity
24000 BTU
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
21 Inches
Product Height
21 Inches
Product Width
26 Inches
Product Depth
21 Inches
Product Weight
44 Pounds
Shipping Weight
59 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
