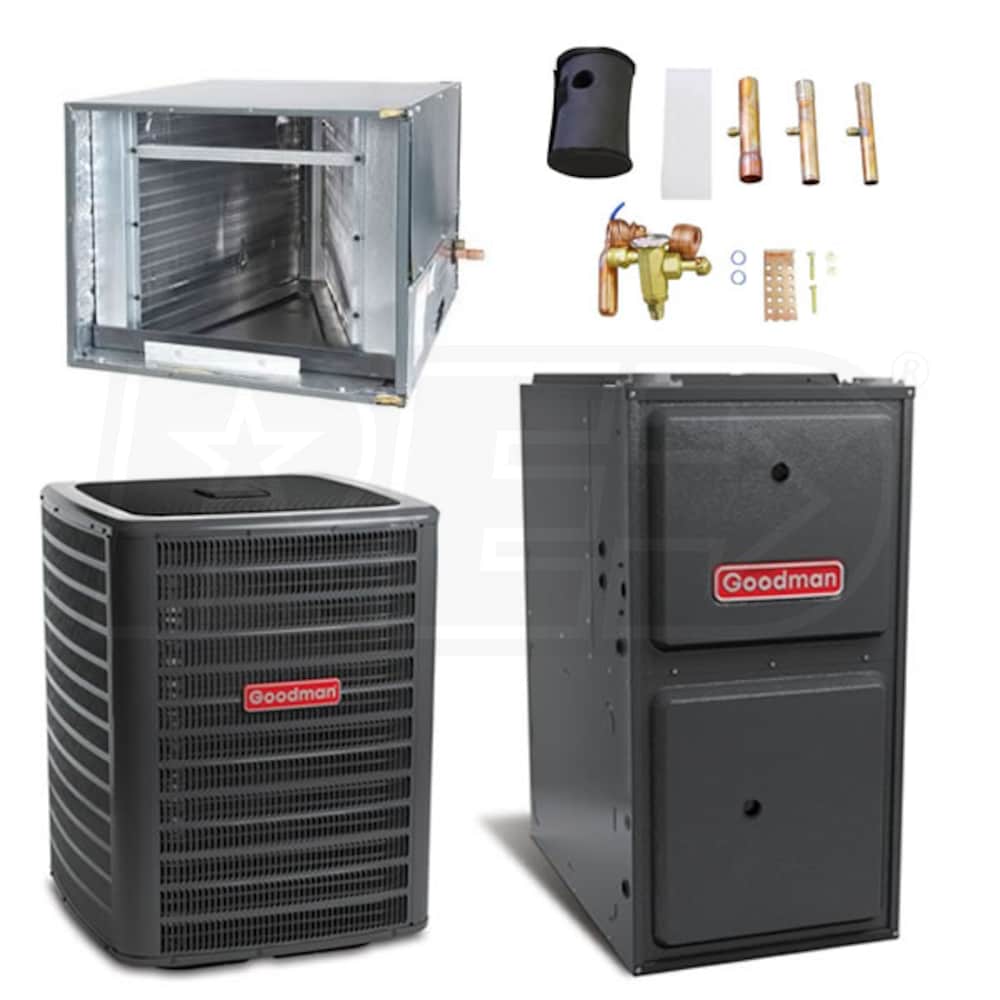

Goodman - 2.0 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 18.0 SEER - 80% AFUE - For Horizontal Installation
Model:
GSXC1824GMVC8080H
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
2
These accessories are required to properly setup/install this product.
Model: CLS383438-25
Length (ft)
$205.00
In-Stock
Model: UC3636-3
$72.00
In-Stock
Optional Accessories
4
Model: 173-600-011
Quality
Quality
Quality is determined by the type of particulates filtered out of the air. The higher the MERV the better the filtration. Learn More
Frequency
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity
Quantity
This will be how many filters you receive per delivery.
Quality
Quality
Quality is determined by the type of particulates filtered out of the air. The higher the MERV the better the filtration. Learn More
Quantity
$6.99
In-Stock
$94.00
In-Stock
Model: CSR-U-1
$38.00
$39.00
Features
- Energy Efficient ECM Motor
- PSC blower motors are energy hogs. The ECM motor in the GMVC80805CX provides more efficient, more intelligent airflow for your home.
- UltraTech Compressor
- A two-stage Copeland UltraTech scroll compressor provides the GSXC18 with incredibly reliable refrigerant flow. The second stage increases efficiency by allowing the compressor to operate at a lower capacity when your demand is low.
- Filter Drier
- A filter drier is installed in the liquid line of this air conditioner. It serves two important purposes: removing moisture and trapping impurities. This prevents corrosion, freezing, and blockages that can negatively impact operation.
- ComfortAlert
- The included ComfortAlert compressor diagnostics module reduces the average time of maintenance calls and virtually eliminates misdiagnoses by experienced technicians, saving you money throughout the life of the air conditioner.
- ComfortBridge Compatible
- This air conditioner is compatible with Goodman's ComfortBridge communicating controls. A ComfortBridge control streamlines the installation and maintenance processes further by automatically detecting your equipment and providing diagnostics.
- Advanced Heat Exchanger Design
- The GMVC80805CX furnace employs a reliable dual-diameter tubular heat exchanger design. Aluminized steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability.
- Secondary Heat Exchanger
- This furnace produces additional heat without using more fuel by directing combustion gases through a secondary heat exchanger before they are vented.
- Venting Options
- The GMVC80805CX offers several venting options to streamline installation in a variety of applications. It can be used in either a two-pipe direct vent setup or a single-pipe configuration with combustion air provided from within your home.
- All-Aluminum Coil
- Goodman's evaporator coils use a reliable all-aluminum design featuring sine fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
- Extended Warranty
- Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
- (1) Goodman GSXC18 - 2 Ton - Air Conditioner - 18 Nominal SEER - Two-Stage - R-410a Refrigerant (GSXC180241)
- (1) Goodman GMVC80 - 80k BTU - Two-Stage Gas Furnace - 80% AFUE (GMVC800805CX)
- (1) Goodman CHPF - 3-3.5 Ton - Horizontal A Coil - Cased - 21" Width Cabinet (CHPF3642C6)
- (1) Goodman TXV Kit - 1.5-2 Ton - R-410A (TX2N4A)
A Goodman high efficiency central air and furnace kit is the perfect way to update your home's HVAC system. This kit contains a GSXC18 air conditioner, a GMVC80805CX furnace, and a cased evaporator coil. With a SEER rating of 18 and a two-stage compressor, it is more efficient and consistent than a single stage counterpart. Each of these components is designed with a focus on ease-of-installation and durability to provide you with upfront and long-term value. If you're looking for a complete comfort solution backed by superior craftsmanship, the Goodman GSXC1824GMVC8080H air conditioner and furnace kit fits the bill perfectly.
Product Includes
Product Note
The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. NOTE: Model GMVC800805CX has been temporarily suspended from production.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Goodman GSXC18 - 2 Ton - Air Conditioner - 18 Nominal SEER - Two-Stage - R-410a Refrigerant (GSXC180241)
- (1) Goodman GMVC80 - 80k BTU - Two-Stage Gas Furnace - 80% AFUE (GMVC800805CX)
- (1) Goodman CHPF - 3-3.5 Ton - Horizontal A Coil - Cased - 21" Width Cabinet (CHPF3642C6)
- (1) Goodman TXV Kit - 1.5-2 Ton - R-410A (TX2N4A)
GSXC1824GMVC8080H
General Information
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Two Stage
Blower Motor Type
ECM Variable-Speed
Coil Width
21 Inches
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide (Except CA)
Installation Available
Yes
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
80 %
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling Capacity
23600 BTU
Nominal Cooling Capacity
24000 BTU
Heating BTU
80000
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
18.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
13.5
Maximum Air Flow
800 CFM
Dimensions
Product Weight
408 Pounds
Shipping Weight
422 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
204635779
GSXC180241
General Information
Type
Condenser
Product Line
GSXC18
Product Category
Air Conditioning Condensers
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two Stage
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling BTU
24000
Cooling Capacity
24000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
18.0
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
71 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15 Amps
Recommended Breaker Size
25 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
40 Inches
Product Width
35 3/4 Inches
Product Depth
35 3/4 Inches
Product Weight
214 Pounds
Shipping Weight
236 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years
Compressor Warranty
LIFETIME Years
Overview
Product Category
Air Conditioning Condensers
GMVC800805CX
General Information
Type
Gas Furnace
Product Line
GMVC80
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Two Stage
Blower Motor Type
ECM Variable-Speed
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Horizontal
Gas Conversion Kit
Available
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide (Except CA)
Installation Available
Yes
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
80 %
Heating BTU
80000
High Fire Input
80000 BTU
High Fire Output
64000 BTU
Low Fire Input
56000 BTU
Low Fire Output
44800 BTU
Maximum Air Flow
2000 CFM
Ultra Low NOx Emissions
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
No
Low NOx Emissions
Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
10.6 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
4 Inches
Cabinet Width
21 Inches
Product Height
33 1/2 Inches
Product Width
21 Inches
Product Depth
28 Inches
Shipping Weight
121 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
202327700
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Heat Exchanger Warranty
Lifetime Years
CHPF3642C6
General Information
Type
Evaporator Coil
Product Line
CHPF
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Installation Available
Yes
TXV Installed
No
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 - 3.5 Tons
Cooling BTU
42000
Nominal Minimum Cooling Capacity
36000 BTU
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
21 Inches
Product Height
21 Inches
Product Width
26 Inches
Product Depth
21 1/8 Inches
Product Weight
63 Pounds
Shipping Weight
73 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Overview
Product Category
Evaporator Coil
TX2N4A
General Information
Type
TXV Kit
Product Line
TX
Product Category
Forced Air Accessories
Refrigerant Type
R-410A
Dimensions
Product Weight
1 Pound
Shipping Weight
2 Pounds
Overview
Product Category
Forced Air Accessories
