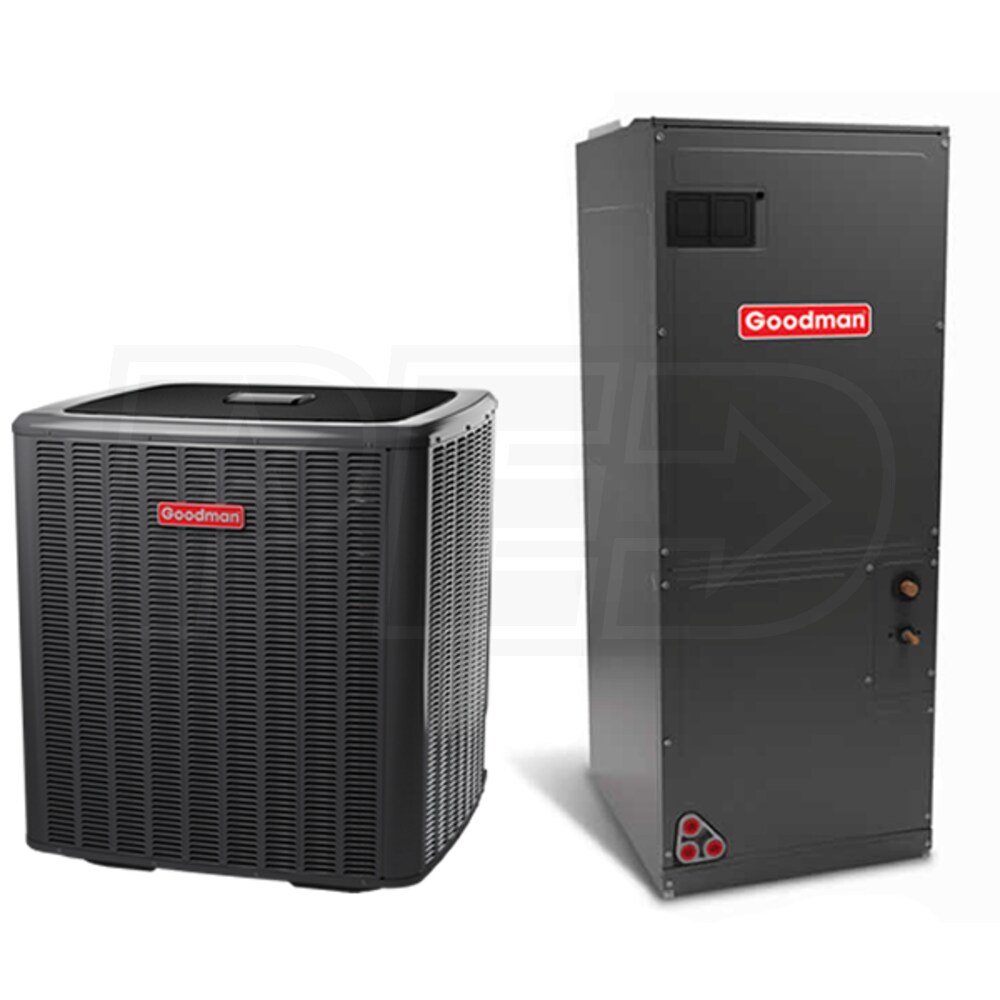

Goodman - 2.0 Ton Cooling - Air Conditioner + Air Handler Kit - 16.0 SEER

Goodman - 2.0 Ton Cooling - Air Conditioner + Air Handler Kit - 16.0 SEER
Our Price
Compare Prices
Shipping Info
Model: GSXC1624AVPTC
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (1)
Write A Review
$2,610.00
Ships in 4-7 Business Days
Free Shipping
Free Lift Gate Service -
Holiday Shipping Schedule
Holiday Schedule -
Cooling Capacity (Tons) ? Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
Add-Ons

Ships in 4-7 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    A Goodman high efficiency central air kit is the perfect way to upgrade your home's HVAC system. This kit contains a GSXC16 air conditioner and an AVPTC air handler. While each of these components enjoy the impressive durability and easy accessibility for which Goodman is famous, their energy efficiency is the real selling point. The high-efficiency 2-stage compressor helps to deliver an outstanding 16 SEER and will reduce temperature swings in your home. State-of-the-art design and technology make the GSXC1624AVPTC an excellent addition to nearly any household looking to reduce their energy spending.
  • Energy-Efficient Circulation
  • PSC blower motors are energy hogs. The ECM motor in the AVPTC provides more efficient, more intelligent airflow for your home.
  • UltraTech Compressor
  • A two-stage Copeland UltraTech scroll compressor provides the GSXC16 with incredibly reliable refrigerant flow. The second stage increases efficiency by allowing the compressor to operate at a lower capacity when your demand is low.
  • Filter Drier
  • A filter drier is installed in the liquid line of this air conditioner. It serves two important purposes: removing moisture and trapping impurities. This prevents corrosion, freezing, and blockages that can negatively impact operation.
  • Quiet Comfort
  • Goodman takes great pride in providing comfort that doesn't disrupt your home. The wire fan discharge grille and condenser fan motor of the GSXC16 were designed to reduce noise levels without compromising performance.
  • ComfortAlert
  • The included ComfortAlert compressor diagnostics module reduces the average time of maintenance calls and virtually eliminates misdiagnoses by experienced technicians, saving you money throughout the life of the air conditioner.
  • ComfortNet Compatible
  • This air conditioner is compatible with Goodman's ComfortNet communicating controls. A ComfortNet control streamlines the installation and maintenance processes. It automatically detects your equipment and then provides diagnostics while troubleshooting.
  • Energy-Efficient Circulation
  • By scaling the airflow to the unique demands and challenges of your home, the advanced variable speed blower motor in the AVPTC provides ideal airflow through shifting conditions in nearly any application.
  • Internal Thermostatic Expansion Valve
  • The AVPTC has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.
  • SmartFrame
  • This air handler features Goodman's SmartFrame sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.
  • Condensate Management
  • The AVPTC's design includes molded diverters, foil-faced insulation, and screw-less construction of the cabinet's side and rear sections. These elements help prevent the formation of condensation and keep your system running smoothly.
  • Product Includes
    • (1) Goodman GSXC16 - 2.0 Ton - Air Conditioner - 16 Nominal SEER - Two-Stage - R-410a Refrigerant (GSXC160241)
    • (1) Goodman AVPTC - 2.5 Ton - Air Handler - Multi-Position - Variable Speed ECM Blower (AVPTC31C14)
    Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
Specifications
General Information
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Compressor Stages ? Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
2
DOE Regional Compliance ? In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Cooling Capacity
23400 BTU
Tonnage ? Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.5
EER ? EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
13.5
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
10491586
GSXC160241 Specifications
General Information
Type
Outdoor Condenser
Product Line
GSXC16
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages ? Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two
DOE Regional Compliance ? In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Nominal Capacity
24000 BTU
Tonnage ? Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
71 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
13.6 Amps
Recommended Breaker Size
20 Amps
Dimensions
Product Height
32 1/2 Inches
Product Width
29 1/4 Inches
Product Depth
29 1/4 Inches
Product Weight
180 Pounds
Shipping Weight
197 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
3/4 Inch
Certifications
Country of Origin
United States
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
5 Years
AVPTC31C14 Specifications
General Information
Product Line
AVPTC
Refrigerant Type
R-410A
Speed Settings
Variable Speed
Motor Type
ECM
Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Electric Heat
Available
Performance
Tonnage ? Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Nominal Cooling Capacity
30000 BTU
Minimum Air Flow
600 CFM
Maximum Air Flow
1300 CFM
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
6.5 Amps
Recommended Breaker Size
15 Amps
Dimensions
Product Height
53 7/16 Inches
Product Width
21 Inches
Product Depth
21 Inches
Shipping Weight
144 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
7/8 Inch
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Features
Features
    A Goodman high efficiency central air kit is the perfect way to upgrade your home's HVAC system. This kit contains a GSXC16 air conditioner and an AVPTC air handler. While each of these components enjoy the impressive durability and easy accessibility for which Goodman is famous, their energy efficiency is the real selling point. The high-efficiency 2-stage compressor helps to deliver an outstanding 16 SEER and will reduce temperature swings in your home. State-of-the-art design and technology make the GSXC1624AVPTC an excellent addition to nearly any household looking to reduce their energy spending.
  • Energy-Efficient Circulation
  • PSC blower motors are energy hogs. The ECM motor in the AVPTC provides more efficient, more intelligent airflow for your home.
  • UltraTech Compressor
  • A two-stage Copeland UltraTech scroll compressor provides the GSXC16 with incredibly reliable refrigerant flow. The second stage increases efficiency by allowing the compressor to operate at a lower capacity when your demand is low.
  • Filter Drier
  • A filter drier is installed in the liquid line of this air conditioner. It serves two important purposes: removing moisture and trapping impurities. This prevents corrosion, freezing, and blockages that can negatively impact operation.
  • Quiet Comfort
  • Goodman takes great pride in providing comfort that doesn't disrupt your home. The wire fan discharge grille and condenser fan motor of the GSXC16 were designed to reduce noise levels without compromising performance.
  • ComfortAlert
  • The included ComfortAlert compressor diagnostics module reduces the average time of maintenance calls and virtually eliminates misdiagnoses by experienced technicians, saving you money throughout the life of the air conditioner.
  • ComfortNet Compatible
  • This air conditioner is compatible with Goodman's ComfortNet communicating controls. A ComfortNet control streamlines the installation and maintenance processes. It automatically detects your equipment and then provides diagnostics while troubleshooting.
  • Energy-Efficient Circulation
  • By scaling the airflow to the unique demands and challenges of your home, the advanced variable speed blower motor in the AVPTC provides ideal airflow through shifting conditions in nearly any application.
  • Internal Thermostatic Expansion Valve
  • The AVPTC has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.
  • SmartFrame
  • This air handler features Goodman's SmartFrame sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.
  • Condensate Management
  • The AVPTC's design includes molded diverters, foil-faced insulation, and screw-less construction of the cabinet's side and rear sections. These elements help prevent the formation of condensation and keep your system running smoothly.
  • Product Includes
    • (1) Goodman GSXC16 - 2.0 Ton - Air Conditioner - 16 Nominal SEER - Two-Stage - R-410a Refrigerant (GSXC160241)
    • (1) Goodman AVPTC - 2.5 Ton - Air Handler - Multi-Position - Variable Speed ECM Blower (AVPTC31C14)
    Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
Specifications
General Information
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Compressor Stages ? Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
2
DOE Regional Compliance ? In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Cooling Capacity
23400 BTU
Tonnage ? Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.5
EER ? EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
13.5
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
10491586
GSXC160241 Specifications
General Information
Type
Outdoor Condenser
Product Line
GSXC16
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages ? Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two
DOE Regional Compliance ? In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Nominal Capacity
24000 BTU
Tonnage ? Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
71 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
13.6 Amps
Recommended Breaker Size
20 Amps
Dimensions
Product Height
32 1/2 Inches
Product Width
29 1/4 Inches
Product Depth
29 1/4 Inches
Product Weight
180 Pounds
Shipping Weight
197 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
3/4 Inch
Certifications
Country of Origin
United States
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
5 Years
AVPTC31C14 Specifications
General Information
Product Line
AVPTC
Refrigerant Type
R-410A
Speed Settings
Variable Speed
Motor Type
ECM
Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Electric Heat
Available
Performance
Tonnage ? Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Nominal Cooling Capacity
30000 BTU
Minimum Air Flow
600 CFM
Maximum Air Flow
1300 CFM
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
6.5 Amps
Recommended Breaker Size
15 Amps
Dimensions
Product Height
53 7/16 Inches
Product Width
21 Inches
Product Depth
21 Inches
Shipping Weight
144 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
7/8 Inch
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Product Specs
+
Specifications
General Information
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Compressor Stages ? Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
2
DOE Regional Compliance ? In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Cooling Capacity
23400 BTU
Tonnage ? Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.5
EER ? EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
13.5
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
10491586
GSXC160241 Specifications
General Information
Type
Outdoor Condenser
Product Line
GSXC16
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages ? Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two
DOE Regional Compliance ? In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Nominal Capacity
24000 BTU
Tonnage ? Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
71 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
13.6 Amps
Recommended Breaker Size
20 Amps
Dimensions
Product Height
32 1/2 Inches
Product Width
29 1/4 Inches
Product Depth
29 1/4 Inches
Product Weight
180 Pounds
Shipping Weight
197 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
3/4 Inch
Certifications
Country of Origin
United States
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
5 Years
AVPTC31C14 Specifications
General Information
Product Line
AVPTC
Refrigerant Type
R-410A
Speed Settings
Variable Speed
Motor Type
ECM
Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Electric Heat
Available
Performance
Tonnage ? Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Nominal Cooling Capacity
30000 BTU
Minimum Air Flow
600 CFM
Maximum Air Flow
1300 CFM
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
6.5 Amps
Recommended Breaker Size
15 Amps
Dimensions
Product Height
53 7/16 Inches
Product Width
21 Inches
Product Depth
21 Inches
Shipping Weight
144 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
7/8 Inch
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(1)
+
Goodman GSXC1624AVPTC Reviews & Ratings
Product Q&A
+
Be the first to ask a question.
Recommended Accessories
+
Expert Recommended Accessories Hand Picked By Our Expert Chris
icon-social-fb1
Required Accessories Add All Required
Optional Accessories
How-To Articles
+
Manuals
+


×
Goodman - 2.0 Ton Cooling - Air Conditioner + Air Handler Kit - 16.0 SEER
Goodman GSXC1624AVPTC
+
Reset View
Goodman GSXC1624AVPTC
Goodman GSXC1624AVPTC
Goodman GSXC1624AVPTC
Goodman GSXC1624AVPTC
Goodman GSXC1624AVPTC
Goodman GSXC1624AVPTC
Goodman GSXC1624AVPTC
×
Customer Review Images

Visit eComfort on Facebook
View the eComfort Twitter Profile Page
Follow eComfort on Pinterest
View eComfort YouTube Channel
View eComfort LinkedIn Company Profile
