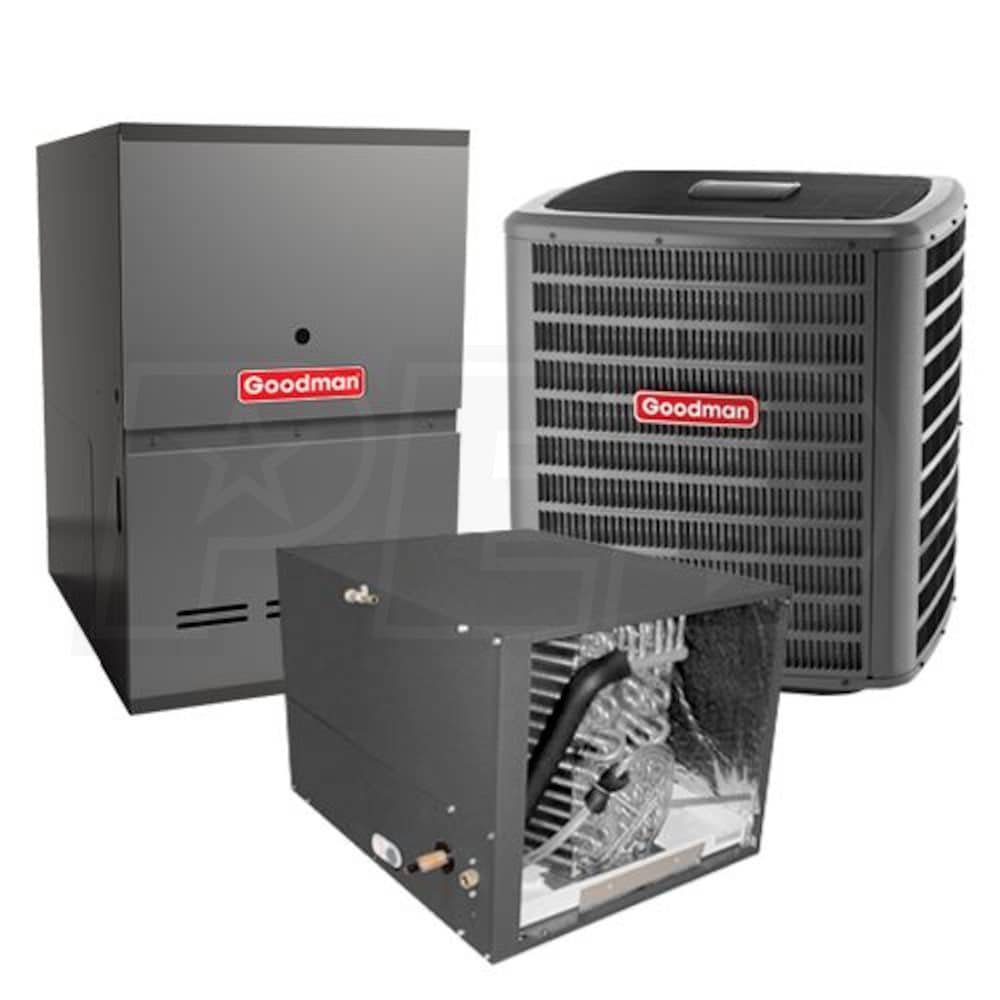

Goodman - 2.0 Ton Cooling - 100k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit - 16.0 SEER - 81% AFUE - For Horizontal Installation

Model:

GSXC160241 CHPF3743 GCVC81005

Write A Review
Add to Cart for Best Price
Was $4,636.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks
synchrony card logo
$55 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Goodman - 2.0 Ton Cooling - 100k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit - 16.0 SEER - 81% AFUE - For Horizontal Installation
Goodman - 2.0 Ton Cooling - 100k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit - 16.0 SEER - 81% AFUE - For Horizontal Installation
Model: GSXC160241 CHPF3743 GCVC81005
Add to Cart for Price
Was $4,636.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    When properly and installed, The Goodman GSXC160241 Air Conditioner Condenser offers up to 16 SEER high-efficiency performance. ”SEER” stands for Seasonal Energy Efficiency Ratio, a measure used by the U.S. Department of Energy to rate the efficiency of air conditioners. The higher the SEER, the greater the efficiency; and the lower the operating cost. In many applications, the efficiency of your Goodman brand GSXC16 Air Conditioner can be enhanced by using it in conjunction with a Goodman brand Gas Furnace that includes a variable-speed blower motor. The Goodman GSXC160241 Air Conditioner Condenser; a unit that provides you with high-efficiency, reliable performance and quiet operation.

    The Goodman GSXC16 GSXC160241 Air Conditioner Condensers

    The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That’s because Goodman air conditioner condensers live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

    A cool history for the Goodman GSXC160241 air conditioner condenser

    Long ago Goodman determined that the combination of copper tubing and aluminum fins provided the most efficient transfer of thermal heat available. Today, the Goodman GSXC160241 air conditioner has improved upon this industry standard by making the condenser coil copper tubing smaller and smarter. The result is a Goodman air conditioning unit that can offer high efficiency, use less refrigerant, and deliver money-saving and energy saving comfort to you for years.

    The Goodman GSXC160241 will keep you as cool as a cucumber

    Known as the best air conditioner the Goodman GSXC160241 is the kind you don’t have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all year long as needed. The Goodman GSXC16 GSXC160241 is loaded with features designed to provide outstanding performance for years to come. The Goodman company use’s advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that’s designed to stay for many years.

    Goodman brand air conditioners and heaters such as the GSXC160241 take pride in its company heritage.

    Goodman brand air conditioners and heaters offer a complete line of HVAC products that are priced to help add comfort to your budget. Goodman air conditioners were designed to add a smile every time you open your utility bill. The Goodman GSXC160241 air conditioners ultimately adhere to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That’s why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.

    Goodman GSXC160241 air conditioner condensers are considered as the art of precision

    Copeland Two-Stage Ultratech Scroll Compressor – – Inside of the Goodman GSXC160241 air conditioners you will find fewer moving parts and consuming less energy compared to reciprocating compressors, the compressor uses chlorine-free R-410A refrigerant and will provide years of reliable cooling comfort.

    ComfortNet Communicating System Compatible – Continuously monitors the system’s operating performance and allows remote control of system as an option. The Goodman GSXC160241 air conditioners simply work the way they’re supposed to, making each one a thing of beauty.

    ComfortAlert Diagnostics – Advanced diagnostics constantly monitor your air conditioner system, reducing failures and pinpointing trouble spots for a fast fix.

    Heavy-Gauge, Galvanized Steel Enclosure Cabinet – A louvered cabinet protects the coil, while its appliance-quality, post-paint, baked enamel finish protects your system from outdoor elements.

    Factory-Installed In-Line Filter Drier – Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.

    Quiet Operation – An acoustically engineered sound control blanket helps reduce noise levels compared to units without sound control blankets.


    Overview for Goodman CHPF3743C6 Horizontal Cased Indoor Air Conditioner Evaporator Coil

    The Goodman CHPF3743C6 Horizontal Cased Indoor Air Conditioner Evaporator Coil is made for use with split-system air conditioners or heating and Evaporator systems. The Goodman Air Conditioning and Heating Company has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market. Goodman CHPF3743C6 Horizontal Cased Indoor Air Conditioner Evaporator Coil lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

    Using this Goodman CHPF3743C6 Horizontal Cased Indoor Air Conditioner Evaporator Coil is a breeze.

    The best indoor comfort system is the kind you don't have to think or worry about. The Goodman CHPF3743C6 Horizontal Cased Indoor Air Conditioner Evaporator Coil starts to work the moment you need it and then runs quietly and efficiently year after year. The Goodman CHPF3743C6 Horizontal Cased Indoor Air Conditioner Evaporator Coils have features designed to provide outstanding performance. Goodman brand Air Conditioning Evaporator Coils use advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy efficient trend you'll love for many years.

    The Goodman CHPF3743C6 Horizontal Cased Indoor Air Conditioner Evaporator Coil is home comfort that won't blow your budget.

    The Goodman Air Conditioner and Heater manufacturer wants you to smile every time you open your utility bill, so the Goodman CHPF3743C6 Horizontal Cased Indoor Air Conditioner Evaporator Coil is designed to function with a multitude of heating and cooling Goodman branded products. Goodman utilizes cutting edge, efficient technologies such as all aluminum coils, thermoplastic drain pans and is optimized for use with R410-A refrigerant. The All-Aluminum evaporator coil is constructed from aluminum tubing, fins and end plates giving you a single metal solution for outstanding, time-tested, heat transfer performance properties.

    Goodman takes pride in its company heritage when manufacturing the Goodman CHPF3743C6 Horizontal Cased Indoor Air Conditioner Evaporator Coil.

    Goodman brand heating and cooling systems are designed to provide refreshingly affordable and energy efficient indoor comfort solutions using advanced technology. But the company ultimately adheres to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.

    Aluminum Tube and Aluminum Fin Coil Construction - Provides time-tested and proven heat transfer efficiency designed to resist potential corrosion.
    Grooved Aluminum Tubing - Offers increased surface area for efficient heat transfer performance by the unit's refrigerant.
    Every Unit Is Helium Pressure - Tested - During assembly to help ensure high levels of product quality. Helium is used, in part, because its molecules are smaller than oxygen. It's just one extra step taken to help ensure a high quality product.
    Every All-Aluminum Coil - Receives finished pressure testing and leak sniffing by hound-dog vacuum testing. This is a secondary test every unit receives before it leaves the factory.


    Overview for Goodman GCVC81005CX Gas Furnace Heater

    The Goodman GCVC80 High-Efficiency Gas Furnace with two-stage gas valve and a variable-speed circulating blower provides efficient and economical performance. Unlike single-stage gas furnaces that operate 'all on' or 'all off,' a Goodman two-stage gas furnace typically runs at the lowest possible speed to precisely maintain a constant, steady temperature in your home. A two-stage gas furnace optimizes its heating output to maximize indoor comfort and lower energy costs. When operating at low-speed levels, your Goodman gas furnace consumes less energy to keep your home comfortable. In addition, the 80% AFUE rating on this gas furnace means that 80 cents of every $1.00 of heating energy expense warms your home.

    The Goodman GCVC80 80% AFUE Two Stage, Variable Speed, Downflow or Horizontal ComfortNet Compatible Series GCVC81005CX Gas Furnace Heaters.

    The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That’s because Goodman Gas Furnace Heaters live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

    The Goodman GCVC80 80% AFUE Two Stage, Variable Speed, Downflow or Horizontal ComfortNet Compatible Series GCVC81005CX Gas Furnace Heaters will keep you as warm as you wish.

    The best gas furnace heater is the kind you don’t have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all winter long as needed. The Goodman GCVC80 80% AFUE Two Stage, Variable Speed, Downflow or Horizontal ComfortNet Compatible SeriesGCVC81005CX is loaded with features designed to provide outstanding performance for years to come. Goodman Gas Furnaces use advanced techniques and materials so you know the cozy, even heat you feel in every corner of your home is an energy efficient warming trend that’s designed to stay for many years.

    Do high utility bills make you hot blooded? Turn to a Goodman GCVC81005CX Gas Furnace!

    High heating bills burn us up, too. Goodman offers a complete line of gas furnace heaters that are priced to help add comfort to your budget. Goodman wants you to smile every time you open your utility bill, so Goodman designed the GCVC81005CX gas furnace units with proven energy efficient technology. Goodman brand heaters and air conditioners offer a complete line of HVAC products that are priced to help add comfort to your budget.

    Goodman brand heaters such as the GCVC81005CX Gas furnace take pride in its company heritage.

    The Goodman GCVC81005CX air conditioners ultimately adhere to some old-fashioned values. Goodman believes in the integrity of the American worker and that’s why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.

    The Goodman GCVC81005CX gas furnaces simply work the way they’re supposed to, making each one a thing of beauty. When you talk about the Goodman GCVC80 80% AFUE Two Stage, Variable Speed, Downflow or Horizontal ComfortNet Compatible Series GCVC81005CX it’s considered as the art of precision.

    Aluminized Steel Tubular Primary Heat Exchanger – Distinctive tubular aluminized steel construction formed using wrinkle-bend technology results in an extremely durable heat exchanger. Paired with a stainless-steel secondary heat exchanger, this combination provides reliability, durability and efficiency.

    Two-Stage Gas Valve – The Goodman GCVC80 80% AFUE Two Stage, Variable Speed, Downflow or Horizontal ComfortNet Compatible Series GCVC81005CX reduces energy needed during moderate demand to deliver outstanding comfort and efficiency as compared to single-stage gas valves.

    ComfortNet Communicating System Compatible – Continuously monitors system performance and allows remote control of system as an option.

    Self-calibrating modulating gas valve – Auto-configures for each installation.

    Durable Silicon Nitride Igniter – Eliminates the need for an energy-wasting pilot light.

    Quiet, Two-Stage, Induced-Draft Blower – Provides precise control and enhanced energy-efficient performance as compared to a natural draft furnace.

    Efficient and Quiet Variable-Speed ECM Circulator Motor – Provides quiet system startup and shutdown with highly efficient performance.

    Self-Diagnostic Control Board – Silently and consistently monitors the gas furnace to ensure the GCVC81005CX furnace components are all working properly and helps to achieve the energy efficient performance too. Also the gas furnace stores the last diagnostic codes in memory; and indicates through a flashing LED for quick troubleshooting of the Goodman GCVC80 80% AFUE Two Stage, Variable Speed, Downflow or Horizontal ComfortNet Compatible Series GCVC81005CX gas furnace.

    Thermally-Insulated Cabinet – The fully insulated cabinet means air leakage of less than 2% to maximize the heat transfer efficiency and lower blower noise.

    But best of all, this Goodman Goodman GCVC80 80% AFUE Two Stage, Variable Speed, Downflow or Horizontal ComfortNet Compatible Series GCVC81005CX gas furnace is compatible with the ComfortNet system of communicating control products. The ComfortNet control system actively monitors and analyzes the entire HVAC system for any irregular conditions. If detected, the control will take appropriate action and display the results in the diagnostic menu on the ComfortNet control unit. This allows for outstanding performance and accurate detection of any system related issue.



    Overview for Goodman TX2N4 Air Conditioner TXV Valve for R410A Refrigerant

    The Goodman Goodman TX2N4 Air Conditioner TXV or thermal expansion valve (often abbreviated as TEV, TXV or TX valve) is a component in refrigeration and air conditioning systems that controls the amount of refrigerant flow into the evaporator thereby controlling the superheating at the outlet of the evaporator. Available in R410A Refrigerant to meet your installation requirements.

    This Goodman TX2N4 Air Conditioner thermostatic expansion valve or TXV is a precision device. It is designed to regulate the rate at which liquid refrigerant flows into the evaporator from the condenser. This controlled flow is necessary to maximize the efficiency of the evaporator while preventing excess liquid refrigerant from returning to the compressor.

    How does the Goodman TX2N4 Air Conditioner TXV Valve for R410A Refrigerant work?

    As the Goodman TX2N4 Air Conditioner TXV regulates the rate at which liquid refrigerant flows into the evaporator, it maintains a proper supply of refrigerant by matching this flow rate against how quickly the refrigerant evaporates (boils off) in the evaporator coil. The Goodman TX2N4 Air Conditioner TXV responds to two variables in order to properly maintain efficiency. The temperature of the refrigerant vapor as it leaves the evaporator and the pressure in the evaporator itself. The Goodman TX2N4 Air Conditioner TXV does this by using a movable valve pin against the spring pressure to precisely control the flow of liquid refrigerant into the evaporator.

    By performing these actions the Goodman TX2N4 Air Conditioner TXV can maintain the required pressure for the SEER Rating as dictated by your system. This Goodman TX2N4 Air Conditioner TXV is a field installed accessory. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
    Product Includes
    • (1) Goodman GSXC16 - 2.0 Ton - Air Conditioner - 16 Nominal SEER - Two-Stage - R-410a Refrigerant (GSXC160241)
    • (1) Goodman GCVC80 - 100k BTU - Two-Stage Gas Furnace - 80% AFUE (GCVC801005CX)
    • (1) Goodman CHPF - 3-3.5 Ton - Horizontal A Coil - Cased - 21" Width Cabinet (CHPF3743C6)
    • (1) Goodman TXV Kit - 1.5-2 Ton - R-410A (TX2N4A)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Goodman GSXC16 - 2.0 Ton - Air Conditioner - 16 Nominal SEER - Two-Stage - R-410a Refrigerant (GSXC160241)
  • (1) Goodman GCVC80 - 100k BTU - Two-Stage Gas Furnace - 80% AFUE (GCVC801005CX)
  • (1) Goodman CHPF - 3-3.5 Ton - Horizontal A Coil - Cased - 21" Width Cabinet (CHPF3743C6)
  • (1) Goodman TXV Kit - 1.5-2 Ton - R-410A (TX2N4A)
GSXC160241 CHPF3743 GCVC81005
specs product image PID-89311
Overview
Product Category
Furnace & Air Conditioner Package
General Information
Product Category
Furnace & Air Conditioner Package
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Two Stage
Blower Motor Speed
ECM Variable-Speed
Coil Width
21 Inches
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide (Except CA)
Installation Available
Yes
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
81 %
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling Capacity
24000 BTU
Nominal Cooling Capacity
24000 BTU
Heating BTU
100000
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
13.0
Maximum Air Flow
860 CFM
Dimensions
Product Weight
374 Pounds
Shipping Weight
391 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
10491647
GSXC160241
General Information
Type
Condenser
Product Line
GSXC16
Product Category
Air Conditioning Condensers
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling BTU
24000
Cooling Capacity
24000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
71 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
14 Amps
Recommended Breaker Size
20 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
32 1/2 Inches
Product Width
29 1/4 Inches
Product Depth
29 1/4 Inches
Product Weight
180 Pounds
Shipping Weight
197 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years
Compressor Warranty
LIFETIME Years
Overview
Product Category
Air Conditioning Condensers
GCVC801005CX
General Information
Type
Gas Furnace
Product Line
GCVC80
Product Category
Furnace
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Two Stage
Blower Motor Speed
ECM Variable-Speed
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow/Horizontal
Gas Conversion Kit
Available
Installation Available
Yes
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
80 %
Heating BTU
100000
High Fire Input
100000 BTU
High Fire Output
80000 BTU
Low Fire Input
70000 BTU
Low Fire Output
56000 BTU
Maximum Air Flow
2000 CFM
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
No
Low NOx Emissions Learn More
Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
10.6 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
4 Inches
Cabinet Width
21 Inches
Product Height
33 1/2 Inches
Product Width
21 Inches
Product Depth
28 Inches
Shipping Weight
129 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
202274192
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Heat Exchanger Warranty
Lifetime Years
Overview
Product Category
Furnace
CHPF3743C6
General Information
Type
Evaporator Coil
Product Line
CHPF
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 - 3.5 Tons
Cooling BTU
42000
Nominal Minimum Cooling Capacity
36000 BTU
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
21 Inches
Product Height
21 Inches
Product Width
26 Inches
Product Depth
21 1/8 Inches
Product Weight
63 Pounds
Shipping Weight
73 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Overview
Product Category
Evaporator Coil
General Information
Type
TXV Kit
Product Line
TX
Product Category
Forced Air Accessories
Refrigerant Type
R-410A
Dimensions
Product Weight
1 Pound
Shipping Weight
2 Pounds
Overview
Product Category
Forced Air Accessories

Reviews

Goodman GSXC160241 CHPF3743 GCVC81005 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.

Product Q&A

Expert avatar photo
Be the First to Ask A Question Answered by Bob, the eComfort Product Expert

How-To Articles

Understanding Home Heating and Cooling Systems
Understanding Home Heating and Cooling Systems
When you think of a cozy home, you think of a place where you can escape a bitte...
How to Save Money This Cooling Season
How to Save Money This Cooling Season
The warm weather is here, and it's not leaving any time soon. As the outdoor te...
How to Pick the Perfect Air Conditioner
How to Pick the Perfect Air Conditioner
There are many home cooling options on the market today, but central air condit...
eComfort How-To Library
eComfort How-To Library
Articles, Tips and Buying Guides from Our Experts

Manuals


Media Gallery
Goodman - 2.0 Ton Cooling - 100k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace Kit - 16.0 SEER - 81% AFUE - For Horizontal Installation
Goodman GSXC160241 CHPF3743 GCVC81005
Goodman GSXC160241 CHPF3743 GCVC81005
Goodman GSXC160241 CHPF3743 GCVC81005
Goodman GSXC160241 CHPF3743 GCVC81005
Goodman GSXC160241 CHPF3743 GCVC81005
Goodman GSXC160241 CHPF3743 GCVC81005
Goodman GSXC160241 CHPF3743 GCVC81005
Goodman GSXC160241 CHPF3743 GCVC81005
Goodman GSXC160241 CHPF3743 GCVC81005
Customer Review Images
