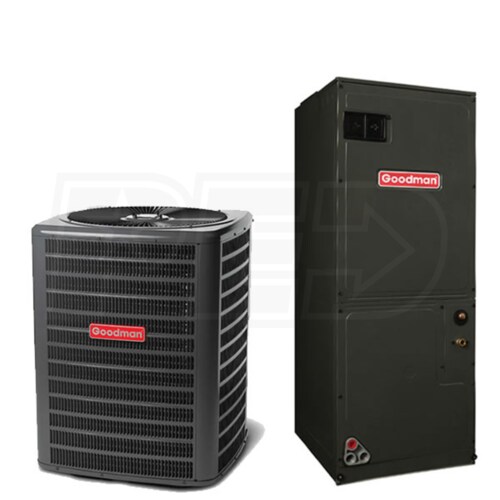

Goodman - 5.0 Ton Cooling - Air Conditioner + Air Handler Kit - 16.0 SEER

Model:

GSX1660ASPT

Write A Review
Add to Cart for Best Price
Was $4,132.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
synchrony card logo
$66 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Goodman - 5.0 Ton Cooling - Air Conditioner + Air Handler Kit - 16.0 SEER
Goodman - 5.0 Ton Cooling - Air Conditioner + Air Handler Kit - 16.0 SEER
Model: GSX1660ASPT
Add to Cart for Price
Was $4,132.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    A Goodman high efficiency central air kit is the perfect way to upgrade your home's HVAC system. This kit contains a GSX16 air conditioner and an ASPT air handler with a multi-speed blower motor. The multi-speed ECM motor provides you with energy efficient circulation. While each of these components enjoy the impressive durability and easy accessibility for which Goodman is famous, their energy efficiency is the real selling point. State-of-the-art design and technology make the GSX1660ASPT an excellent addition to nearly any household looking to reduce their energy spending.
  • Energy-Efficient Circulation
  • PSC blower motors are energy hogs. The ECM motor in the ASPT provides more efficient, more intelligent airflow for your home.
  • Advanced Coil Design
  • The condenser coil of this air conditioner is designed with aluminum fins and rifled copper tubing to maximize efficiency. The fins and rifling serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.
  • High-Efficiency Compressor
  • This unit utilizes a high-efficiency scroll compressor to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
  • Filter Drier
  • A filter drier is installed in the liquid line of this air conditioner. It serves two important purposes: removing moisture and trapping impurities. This prevents corrosion, freezing, and blockages that can negatively impact operation.
  • Quiet Comfort
  • Goodman takes great pride in providing comfort that doesn't disrupt your home. The GSX16 features a three-bladed condenser fan, wire fan discharge grille, and louvered top, all designed to reduce noise levels without compromising performance.
  • Energy-Efficient Circulation
  • PSC blower motors are energy hogs. The ECM motor in the ASPT provides more efficient, more intelligent airflow for your home.
  • Dehumidification
  • Goodman's air handlers make it easy to stay cool. The ASPT is designed to remove moisture from the air, letting you feel cool at higher temperatures.
  • SmartFrame
  • This air handler features Goodman's SmartFrame sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.
  • Condensate Management
  • The ASPT's design includes molded diverters, foil-faced insulation, and screw-less construction of the cabinet's side and rear sections. These elements help prevent the formation of condensation and keep your system running smoothly.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Internal Thermostatic Expansion Valve
  • The ASPT Series Air Handler has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.
  • Product Includes
    • (1) Goodman GSX16 - 5.0 Ton - Air Conditioner - 16 Nominal SEER - Single-Stage - R-410a Refrigerant (GSX160601)
    • (1) Goodman ASPT - 5 Ton - Air Handler - Multi-Position - ECM Motor (ASPT61D14)
    Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions. As of December 9th, 2022, we will no longer be selling 14 SEER and 16 SEER unitary products to the DOE Southern Region to comply with updated SEER2 Federal Regulations.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Goodman GSX16 - 5.0 Ton - Air Conditioner - 16 Nominal SEER - Single-Stage - R-410a Refrigerant (GSX160601)
  • (1) Goodman ASPT - 5 Ton - Air Handler - Multi-Position - ECM Motor (ASPT61D14)
GSX1660ASPT
specs product image PID-75364
Overview
Product Category
Air Conditioner & Air Handler Package
General Information
Product Category
Air Conditioner & Air Handler Package
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5.0 Tons
Cooling Capacity
54000 BTU
Nominal Cooling Capacity
60000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
13.0
Maximum Air Flow
1645 CFM
Dimensions
Product Weight
446 Pounds
Shipping Weight
468 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
7984223
GSX160601
General Information
Type
Condenser
Product Line
GSX16
Product Category
Air Conditioning Condensers
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5.0 Tons
Cooling BTU
60000
Cooling Capacity
54000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
73 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
30 Amps
Recommended Breaker Size
50 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
38 1/4 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Product Weight
279 Pounds
Shipping Weight
301 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years Years
Overview
Product Category
Air Conditioning Condensers
ASPT61D14
General Information
Type
Air Handler
Product Line
ASPT
Product Category
Air Handler
Refrigerant Type
R-410A
Blower Motor Speed
Multi-Speed
Motor Type
EEM
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Installation Location
Indoor
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5.0 Tons
Cooling BTU
60000
Maximum Air Flow
2340 CFM
Minimum Air Flow
1055 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
9 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
58 Inches
Product Width
24 1/2 Inches
Product Depth
21 Inches
Product Weight
112 Pounds
Shipping Weight
167 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
Overview
Product Category
Air Handler
