Model: 173-600-011
Quality
Quality
Quality is determined by the type of particulates filtered out of the air. The higher the MERV the better the filtration. Learn More
Frequency
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity
Quantity
This will be how many filters you receive per delivery.
Quality
Quality
Quality is determined by the type of particulates filtered out of the air. The higher the MERV the better the filtration. Learn More
Quantity
$6.99
In-Stock
$806.00
In-Stock
$96.00
Model: FB-1
$6.00
In-Stock
Model: OT18-60A
$88.00
Features
- High Airflow Model
- The GHS8 line of furnaces are designed to operate with a higher airflow then standard Goodman models. This makes them perfect for installations with more ductwork than normal, or require additional cooling.
- Advanced Heat Exchanger Design
- The GHS8 furnace employs a reliable dual-diameter tubular heat exchanger design. Aluminized steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.
- Quiet Comfort
- The blower, motor, and igniter of the GHS80403AX were selected for their incredibly low sound levels.
- Secure Cabinet
- All GHS8 furnaces are protected by a durable steel cabinet with a long-lasting powder paint finish. The heat exchanger section is lined with foil-insulation to prevent heat loss and the entire cabinet is rated for less than 2% air leakage.
- Easy Integration
- The GHS80403AX makes it simple to enhance your system with a humidifier; just wire it directly to the low-voltage terminal on the control board.
- Extended Warranty
- Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
Goodman established itself as the largest HVAC manufacturer in the US by producing high-quality, efficient equipment and providing it to homeowners at a great value. The GHS8 high airflow single-stage, multi-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. This furnace also excels at providing comfortable circulation in a variety of conditions thanks to its four-speed blower motor. Designed with some of the most dependable components available, the GHS8 furnace is built to last. It is also equipped with a self-diagnosing control board for quick maintenance, and is backed by Goodman's generous warranty. With the GHS8, you're getting comfort and peace of mind.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
GHS80403AX
General Information
Type
Gas Furnace
Product Line
GHS8
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Blower Motor Type
PSC Multi-Speed
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Horizontal
Gas Conversion Kit
Available
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide (Except CA)
Installation Available
Yes
UPC
663051517912
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
80 %
Heating BTU
40000
High Fire Input
40000 BTU
High Fire Output
32000 BTU
Maximum Air Flow
1200 CFM
Ultra Low NOx Emissions
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
No
Low NOx Emissions
Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
10.5 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
4 Inches
Cabinet Width
14 Inches
Product Height
33 3/8 Inches
Product Width
14 Inches
Product Depth
28 3/4 Inches
Product Weight
90 Pounds
Shipping Weight
90 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
5012561
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
20 Years
Reviews
(5)
Goodman GHS80403AX Reviews & Ratings
Love it!
By K. A.
Andalusia, Illinois
Purchased 08/04/2019 |
Review Posted 08/27/2019
Have only used the AC but so far I love it!
K. A. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
the best product works great keeps us warm
By David K.
Meyersdale, Pennsylvania
Purchased 12/24/2018 |
Review Posted 01/17/2019
got it home and installed it works perfect and would buy again if needed one
David K. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Good product, fast shipping
By Peter W.
Viroqua, Wisconsin
Purchased 09/24/2018 |
Review Posted 10/17/2018
Goodman has come quite a long way in quality and dependability over the past 10 years or so. This is the 4th Goodman system I have installed in as many houses. All function well, and are still in service.
They are easy to install by the experienced DIY guy. If you get stuck, there are lots of videos on you tube.
eComfort had the best price when you consider shipping costs. They included Free shipping, and Free lift gate service. Unit arrived undamaged in a couple days.
I would definitely purchase another Goodman, and I will continue to use eComfort.
They are easy to install by the experienced DIY guy. If you get stuck, there are lots of videos on you tube.
eComfort had the best price when you consider shipping costs. They included Free shipping, and Free lift gate service. Unit arrived undamaged in a couple days.
I would definitely purchase another Goodman, and I will continue to use eComfort.
Peter W. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
5/5
Great product and great customer service.
By Ted S.
St. John, Indiana
Purchased 09/03/2018 |
Review Posted 10/17/2018
E-comfort was awesome and the delivery was a snap. Th driver had a liftgate and a pallet jack and wheeled it right up to the garage.
Ted S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Happy Parents
By Del J.
Auburn, Washington
Purchased 03/04/2018 |
Review Posted 03/26/2018
I installed this for my elderly parents.Old unit kept breaking down so told them about this site and ordered for them. Same brand as in my house and also installed for my sister. Easy hookup just a lot of tin work to do. Fired right up. They are very happy with this unit.
Del J. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
How-To Articles
Choosing Between a Furnace and a Heat Pump
The battle between furnaces and heat pumps is hot right now. Although most Amer...
How to Pick the Perfect Furnace
The heart of nearly every forced air heating system is the furnace. Gas furnace...
eComfort How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

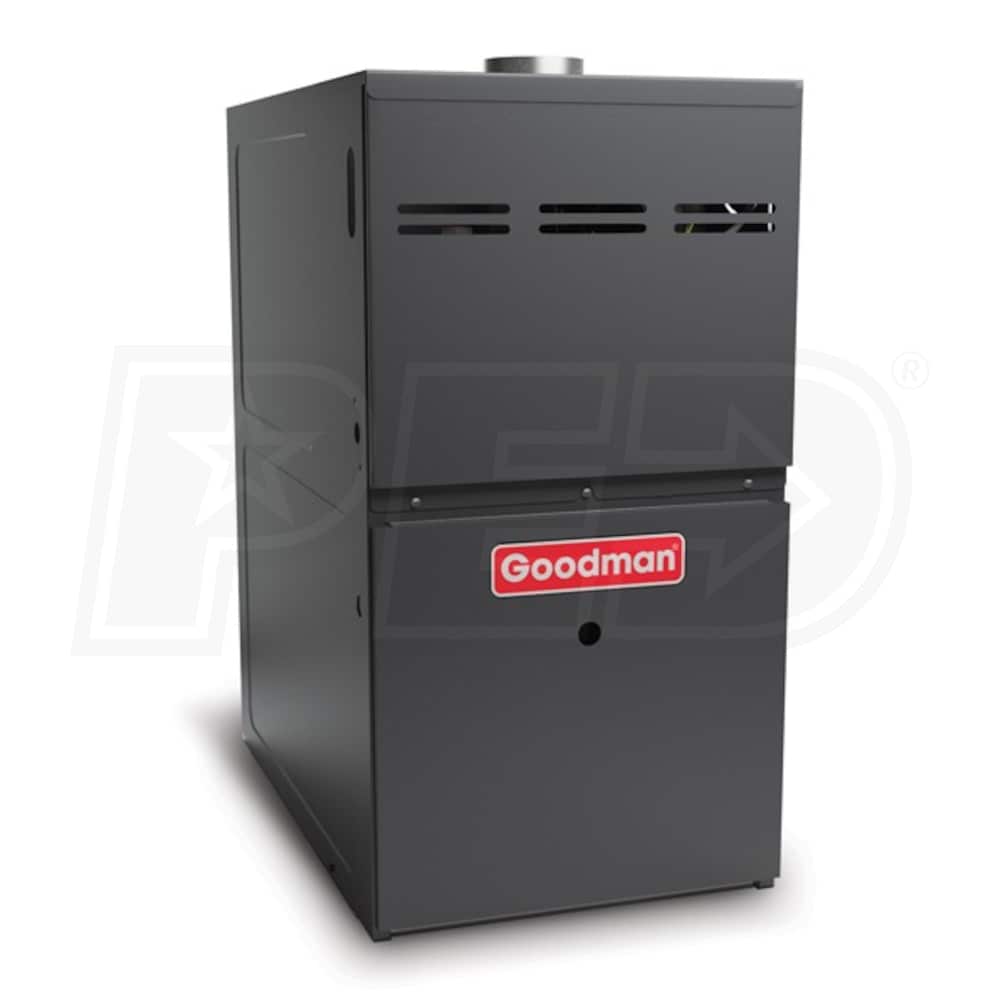

Goodman GHS8 - 40k BTU - Gas Furnace - 80% AFUE - High Airflow
