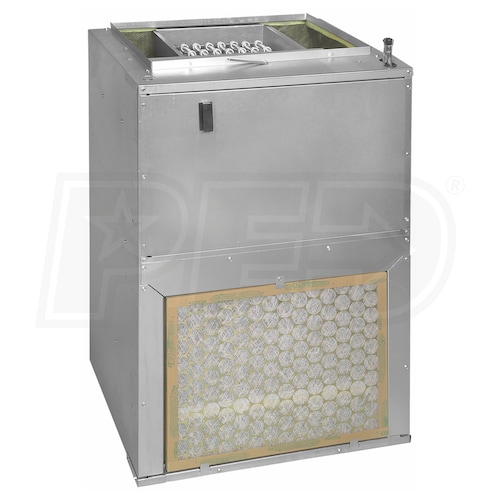

Goodman AWSF24SU1610
Goodman AWSF24SU1610
Hover to zoom
1 Of 5

Goodman AWSF - 2.0 Ton - Air Handler - Wall Mount - 208-230/1/60 - ECM Motor - 10 kW

Model:

AWSF24SU1610

Write A Review
Add to Cart for Best Price
Was $705.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 6-8 Weeks
synchrony card logo
$112 / Month
Suggested monthly payments with 6 month financing.
Goodman AWSF - 2.0 Ton - Air Handler - Wall Mount - 208-230/1/60 - ECM Motor - 10 kW
Goodman AWSF - 2.0 Ton - Air Handler - Wall Mount - 208-230/1/60 - ECM Motor - 10 kW
Model: AWSF24SU1610
Add to Cart for Price
Was $705.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Goodman air handlers are an integral part of finishing a total home environment control system. The AWSF plays a key role in reducing indoor humidity to create a much more comfortable environment. In addition, the AWSF works with the multi-speed ECM motor to efficiently move cooled or warmed air throughout your home at exactly the speed you need. AWSF air handlers come equipped with all-aluminum evaporator coils and a check flowrator to provide you with reliable, energy efficient and affordable indoor comfort.
  • All-Aluminum Evaporator Coil
  • The AWSF model comes with a durable all-aluminum evaporator coil and a fully adjustable thermostatic expansion valve to optimizes heat transfer.
  • Easy Installation
  • The AWSF air handler can be installed vertically on the wall with the provided wall hanging bracket. This air handler features a thermoplastic drain pan with bottom primary and secondary drain connections and a factory-installed, pull-type disconnect.
  • Electric Heat
  • The AWSF air handlers come with a rust-resistant nickel chromium heating elements that are sequence-controlled.
  • Built-In Filter Rack
  • The AWSF comes with a built-in filter rack and the filter is included.
  • Efficient Circulation
  • The direct-drive, multi-speed blower motor allows air volume variation for heating and cooling ensuring efficient circulation.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

AWSF24SU1610
specs product image PID-145232
General Information
Type
Air Handler
Product Line
AWSF
Product Category
Air Handler
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Motor Type
ECM
Mount Type
Wall Mounted
Installation Location
Indoor
Electric Heat
Yes
Installation Available
Yes
TXV Installed
No
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling BTU
24000
Electric Heat Capacity
10.0 kW
Maximum Air Flow
846 CFM
Minimum Air Flow
630 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
46.6 Amps
Recommended Breaker Size
50/60 Amps
Dimensions
Suction Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Drain Outlet Diameter
3/4 Inch
Product Height
36 Inches
Product Width
20 3/16 Inches
Product Depth
16 1/8 Inches
Shipping Weight
84 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
