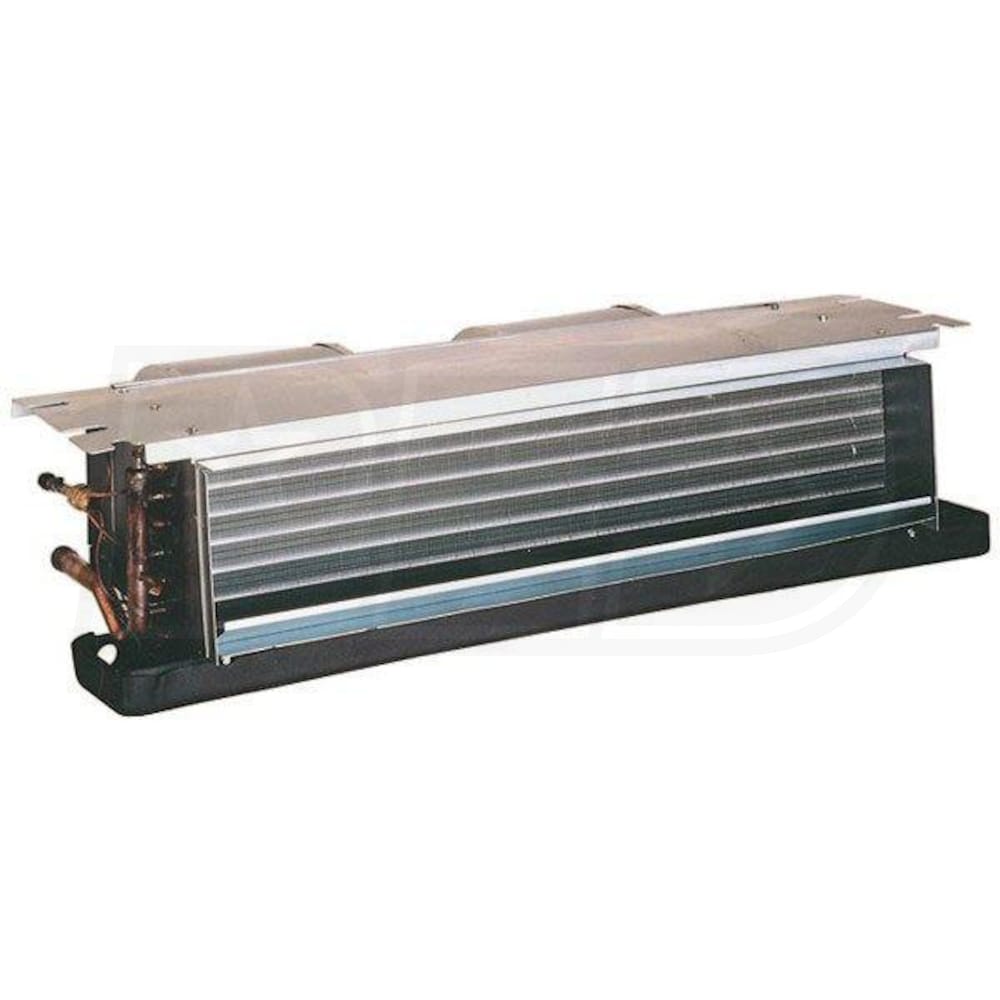

Goodman ACNF - 2 Ton - 7.3 kw Electric Heat - Air Handler - Ceiling-Mount Orientation - 208-230/1/60 - PSC Motor

Model:

ACNF240816

Write A Review
$640.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Thursday, Feb 9th
Shipping to60601
synchrony card logo
$107 / Month
Suggested monthly payments with 6 month financing.
Goodman ACNF - 2 Ton - 7.3 kw Electric Heat - Air Handler - Ceiling-Mount Orientation - 208-230/1/60 - PSC Motor
Goodman ACNF - 2 Ton - 7.3 kw Electric Heat - Air Handler - Ceiling-Mount Orientation - 208-230/1/60 - PSC Motor
Model: ACNF240816
$640.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Goodman air handlers are an integral part of finishing a total home environment control system. The ACNF plays a key role in reducing indoor humidity, creating a much more comfortable environment. In addition, the ACNF240816 works with the multi-speed PSC motor to efficiently move cooled or warmed air throughout your home at exactly the speed you need.
  • Galvanized-Steel Construction
  • Galvanized-Steel is corrosion resistant, requiring less maintenance to remain at peak efficiency.
  • Easy Installation
  • The ACNF Air Handler can be installed vertically on the wall or on the stud, giving you the freedom to pick between whichever fits your needs best.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

ACNF240816
specs product image PID-26326
Overview
Product Category
Air Handler
UPC
663051545199
General Information
Type
Air Handler
Product Line
ACNF
Product Category
Air Handler
Refrigerant Type
R-22/R-410A
Blower Motor Speed
Multi-Speed
Motor Type
PSC
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Ceiling Mounted
Electric Heat
Included
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling BTU
24000
Electric Heat Capacity
7.3 kW
Maximum Air Flow
880 CFM
Minimum Air Flow
840 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
36.1 Amps
Recommended Breaker Size
40 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Drain Outlet Diameter
3/4 Inch
Product Height
10 Inches
Product Width
43 1/4 Inches
Product Depth
11 3/8 Inches
Product Weight
54 Pounds
Shipping Weight
69 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
