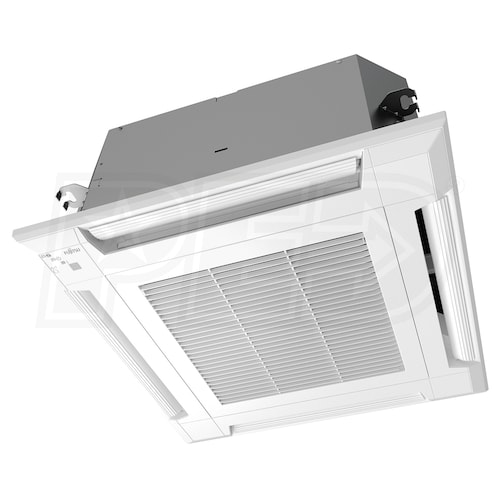

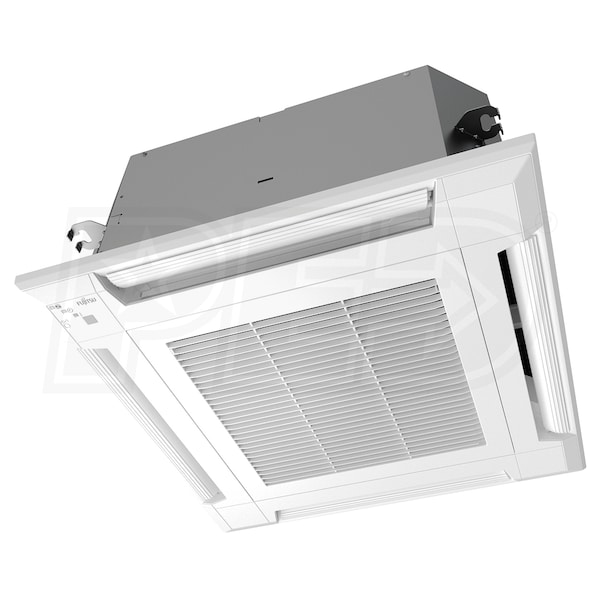

Fujitsu - 12k BTU - Compact Ceiling Cassette with Grille - For Multi or Single-Zone
Model:
ACUH12LUAS1
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Timer Function
- This unit offers 7-day programmability with two unique on/off events on each individual day. This allows you to customize heating and cooling operations to suit your personal schedule, improving energy efficiency without compromising your home's comfort.
- Dehumidify and Cool
- Dry Mode demonstrates the ACUH12LUAS1's versatility. In addition to providing moderate cooling, dry mode also dehumidifies your zone.
- Quiet Operating Mode
- The ACUH12LUAS1 may be set in a quiet operating mode. This operating mode limits airflow slightly to reduce fan noise from the unit, allowing you to enjoy supremely quiet comfort.
- Intelligent Temperature Calculation
- Rooms with raised ceilings heat differently than traditionally sized rooms. The ACUH12LUAS1 can be set to account for ceiling height when making temperature calculations. This keeps you comfortable, even in rooms with unconventional heating patterns.
- Economy Mode
- The ACUH12LUAS1 features an Economy Mode restricts the unit's maximum output to decrease energy use and increase savings. This mode also increases the unit's dehumidification capabilities during cooling operations and in Dry Mode.
- Two-Stage Turbo Fan
- Fujitsu employs a two-stage turbo fan to optimize the distribution of air over this unit's heat exchanger. By employing two separate currents of air, the turbo fan ensures even temperatures and improves both efficiency and comfort.
- (1) Fujitsu - 12k BTU - Compact Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (ACUH12LUAS1-NG)
- (1) Fujitsu - Compact Ceiling Cassette Grille (UTG-CCGFGA)
Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the ACUH12LUAS1 wall mounted designer mini split indoor unit. This mini split indoor unit has a sleek, modern design, and a front panel that slides upwards to maintain its slim profile. The ACUH12LUAS1 is capable of cooling, drying, and heating operations, none of which will disrupt your home thanks to the low operating sound levels. Between the advanced filtration technology and the additional operating modes, the ACUH12LUAS1 is a choice that promotes health and comfort year round.
Product Includes
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Fujitsu - 12k BTU - Compact Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (ACUH12LUAS1-NG)
- (1) Fujitsu - Compact Ceiling Cassette Grille (UTG-CCGFGA)
ACUH12LUAS1
Overview
Product Category
Mini Split Heat Pump System
General Information
Type
Ceiling Cassette
Product Category
Mini Split Heat Pump System
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wired
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Outdoor Unit Size
12000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Heating Capacity
16000 BTU
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
9 5/8 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
33 Pounds
Shipping Weight
40 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
ACUH12LUAS1-NG
General Information
Type
Ceiling Cassette
Product Line
Airstage LUAS
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wired
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12000
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
359 CFM
Minimum Air Flow
241 CFM
Minimum Sound Level
28 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
37 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
9 3/8 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
33 Pounds
Shipping Height
10 7/16 Inches
Shipping Width
28 3/4 Inches
Shipping Depth
24 5/8 Inches
Shipping Weight
40 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
Overview
Product Category
Mini Split System Components
UTG-CCGFGA
General Information
Type
Grille
Product Line
Halcyon
Product Category
Mini Split System Components
Installation Location
Indoor
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Overview
