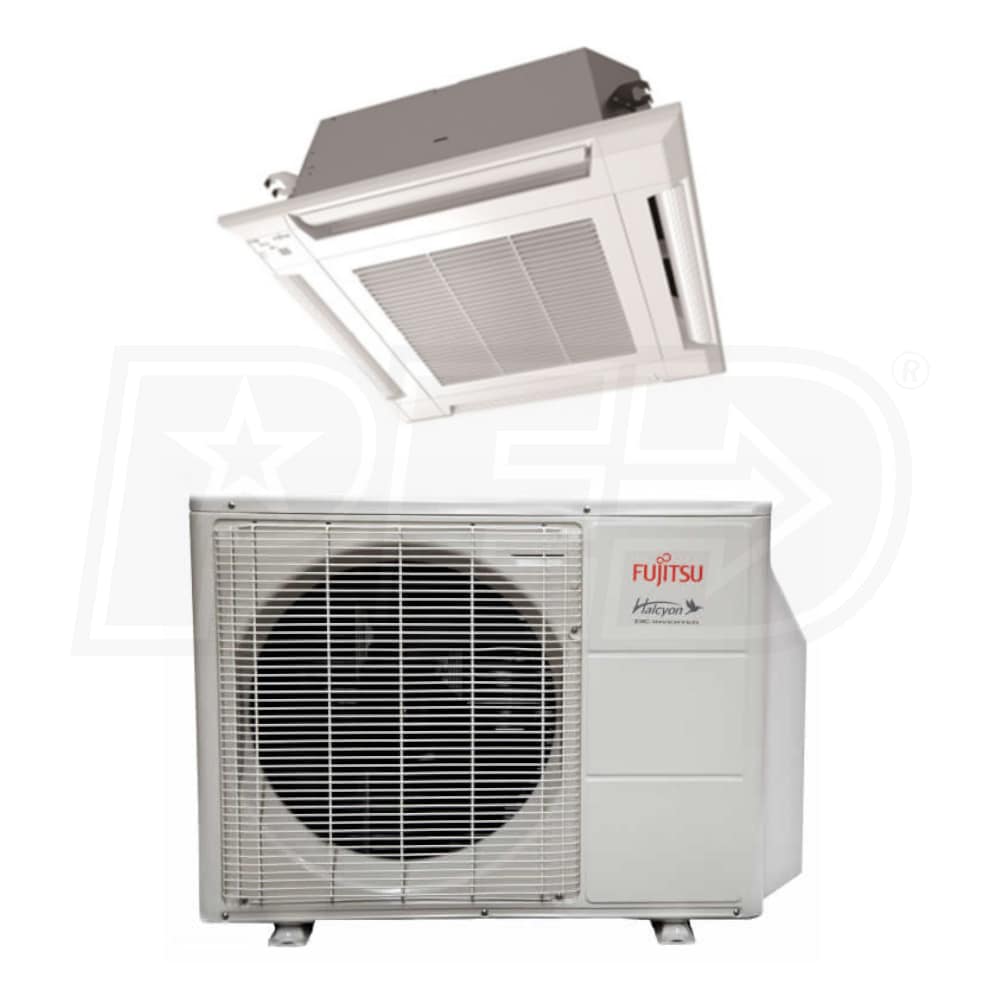

Fujitsu - 12k BTU Cooling + Heating - Compact Ceiling Cassette Air Conditioning System - 21.9 SEER
Model:
12RLFCC
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
3
These accessories are required to properly setup/install this product.
Model: UC1636-3
$44.00
In-Stock
Model: MSPLTKITCD-143825
Length (ft)
$353.62
$105.62
In-Stock
Optional Accessories
7
Model: MLS143812-25
Length (ft)
$200.00
In-Stock
Model: MSCABLE144-25
$45.00
In-Stock
Model: LHKIT-75
$86.49
Model: ASP-MW-UNI
$296.32
In-Stock
Model: 84099
$5.30
Only 5 In-Stock
Features
- Inverter Technology
- The 12RLFCC outdoor condenser uses an inverter to drive the compressor, allowing it to match its output to the amount of heating or cooling required by a space, even as conditions change.
- Low Ambient Heating
- Fujitsu's low temperature heating technology allows this condenser to safely maintain its rated capacity in outdoor temperatures as low as 20 degrees Fahrenheit. The AOU12RLFC can operate in heating mode in conditions as low as -5 degrees Fahrenheit.
- Timer Function
- This system offers seven day programmability with two unique on/off events on each individual day. This allows you to customize heating and cooling operations to suit your personal schedule, improving energy efficiency without compromising your home.
- (1) Fujitsu - 12k BTU - RLFC Outdoor Condenser - Single Zone Only (AOU12RLFC)

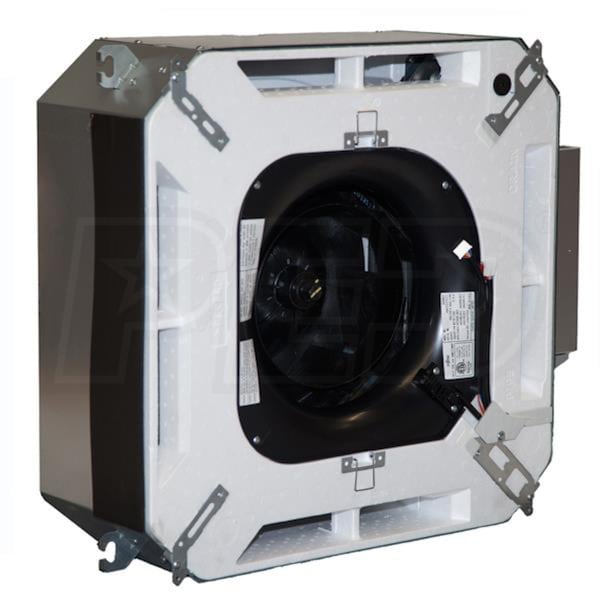

- (1) Fujitsu - 12k BTU - Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (AUU12RLF-NOGRILLE)
- (1) Fujitsu Halcyon HFI - Ceiling Cassette Grille (UTG-CCGFG)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Cable - This durable, insulated cable provides power to your indoor unit from your outdoor condenser.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the 12RLFCC ceiling cassette mini split system. If you are looking to provide heating and cooling for an individual space, or supplement existing heating and air conditioning equipment, the 12RLFCC mini split system is a reliable and efficient choice. The compact ceiling cassette unit mounts easily in your ceiling, allowing you to install the unit at the center of your zone for ideal airflow coverage. This system has an array of effective operating modes that allow you to customize operations to suit your comfort. The Fujitsu 12RLFCC is a low-profile addition to any home or business.
Product Includes
Product Note
This product requires the following accessories for installation:
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Fujitsu - 12k BTU - RLFC Outdoor Condenser - Single Zone Only (AOU12RLFC)
- (1) Fujitsu - 12k BTU - Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (AUU12RLF-NOGRILLE)
- (1) Fujitsu Halcyon HFI - Ceiling Cassette Grille (UTG-CCGFG)
12RLFCC
Overview
Product Category
Mini Split Heat Pump System
General Information
Type
Ceiling Cassette
Product Line
Halcyon
Product Category
Mini Split Heat Pump System
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Outdoor Unit Size
12000 BTU
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Heating Capacity
16000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
21.9
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.8
HSPF
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
12.2
Minimum Operating Temperature
-5 F
Maximum Operating Temperature
14 F
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
13.4 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Weight
119 Pounds
Shipping Weight
230 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
5751313
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
10 Limited Years
AOU12RLFC
General Information
Type
Outdoor Condenser
Product Line
RLFC
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
12000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
50 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
66 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
24 1/2 Inches
Product Width
31 1/12 Inches
Product Depth
11 1/3 Inches
Product Weight
86 Pounds
Shipping Width
37 3/16 Inches
Shipping Height
28 1/16 Inches
Shipping Depth
15 9/16 Inches
Shipping Weight
93 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
AUU12RLF-NOGRILLE
General Information
Type
Ceiling Cassette
Product Line
Halcyon HFI
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wired
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
359 CFM
Minimum Air Flow
241 CFM
Minimum Sound Level
28 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
37 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
9 5/8 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
33 Pounds
Shipping Width
28 3/4 Inches
Shipping Height
10 7/16 Inches
Shipping Depth
24 5/8 Inches
Shipping Weight
40 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
UTG-CCGFG
General Information
Type
Grille
Dimensions
Product Height
1 15/16 Inches
Product Width
24 7/16 Inches
Product Depth
24 7/16 Inches
Product Weight
10 Pounds
Shipping Height
4 3/4 Inches
Shipping Width
30 1/8 Inches
Shipping Depth
28 3/4 Inches
Shipping Weight
10 Pounds
Reviews
(4)
Fujitsu 12RLFCC Reviews & Ratings
Great customer service
By John J.
Newport, Minnesota
Purchased 08/11/2020 |
Review Posted 09/02/2020
I was Replacing an existing unit. Your customer service person helped me match the best new unit to utilize my existing line set and electric run.
John J. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
So Far So Good
By Don B.
Orangevale, California
Purchased 03/28/2020 |
Review Posted 04/21/2020
Have had the unit in use for 2 weeks & so far at this point have been completely pleased with the unit. We are in a moderate climate and at this time of year have not challenged at all, the heating capacity or efficiency. These units operate a little differently that say a natural gas furnace, in that it takes a few minutes for it to cycle up to begin generating heat. Example: at about 42 degrees outside temp, it takes about 15-20 minutes to fully cycle up to fully heat, although it does provide incremental heat in the process. I don't consider this a negative, it's just different than systems I am familiar with.
I have every expectation this unit will function very well for years to come. I researched mini-split units extensively before making this choice.
I have every expectation this unit will function very well for years to come. I researched mini-split units extensively before making this choice.
Don B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Excellent Mini-Split and super quiet!!!!
By Frank C.
Wilmington, North Carolina
Purchased 09/28/2016 |
Review Posted 12/01/2016
I shopped around the internet and had actually made a purchase of the Fujitsu Mini Split from another provider that indicated it was in stock and delivery promised in 3-5 business days.
After my order sat there for 5 days I decided to call only to find out it would take at least 30 days due to a back order. The unit still showed immediate delivery.
I can'd that order and found this website with a better price and they delivered within the promised timeframe. The unit is excellent.
I am very pleased with the unit operation and performance for my all season enclosure. I highly recommend this unit.
After my order sat there for 5 days I decided to call only to find out it would take at least 30 days due to a back order. The unit still showed immediate delivery.
I can'd that order and found this website with a better price and they delivered within the promised timeframe. The unit is excellent.
I am very pleased with the unit operation and performance for my all season enclosure. I highly recommend this unit.
Frank C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Fujitsu Mini Split
By Sergey S.
Lockport, New York
Purchased 10/14/2016 |
Review Posted 11/17/2016
Shipping was fast. Delivered on wood pallet. Installation took 2 days, primarily because of location of the unit inside and outside. Line set length was 46 feet, did not need to add extra 410a. For communication/power I used 14/4 mini split cable sold at hvac supply stores.
Unit runs very quiet (inside and out) in Cooling mode, while hearing,the compressor ramps up and you can hear it a little. Thermostat setting took me a while to figure out, but I should have read the manual that came with the indoor unit. It has been 3 weeks since installed, runs every day. Overall I like it. Will see how it does in winter month (it is a supplemental source of heating in case boiler is not keeping up) up here in Buffalo NY.
Unit runs very quiet (inside and out) in Cooling mode, while hearing,the compressor ramps up and you can hear it a little. Thermostat setting took me a while to figure out, but I should have read the manual that came with the indoor unit. It has been 3 weeks since installed, runs every day. Overall I like it. Will see how it does in winter month (it is a supplemental source of heating in case boiler is not keeping up) up here in Buffalo NY.
Sergey S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Easy To Use, Quiet, Light Weight, High Quality
Cons:
Expensive
