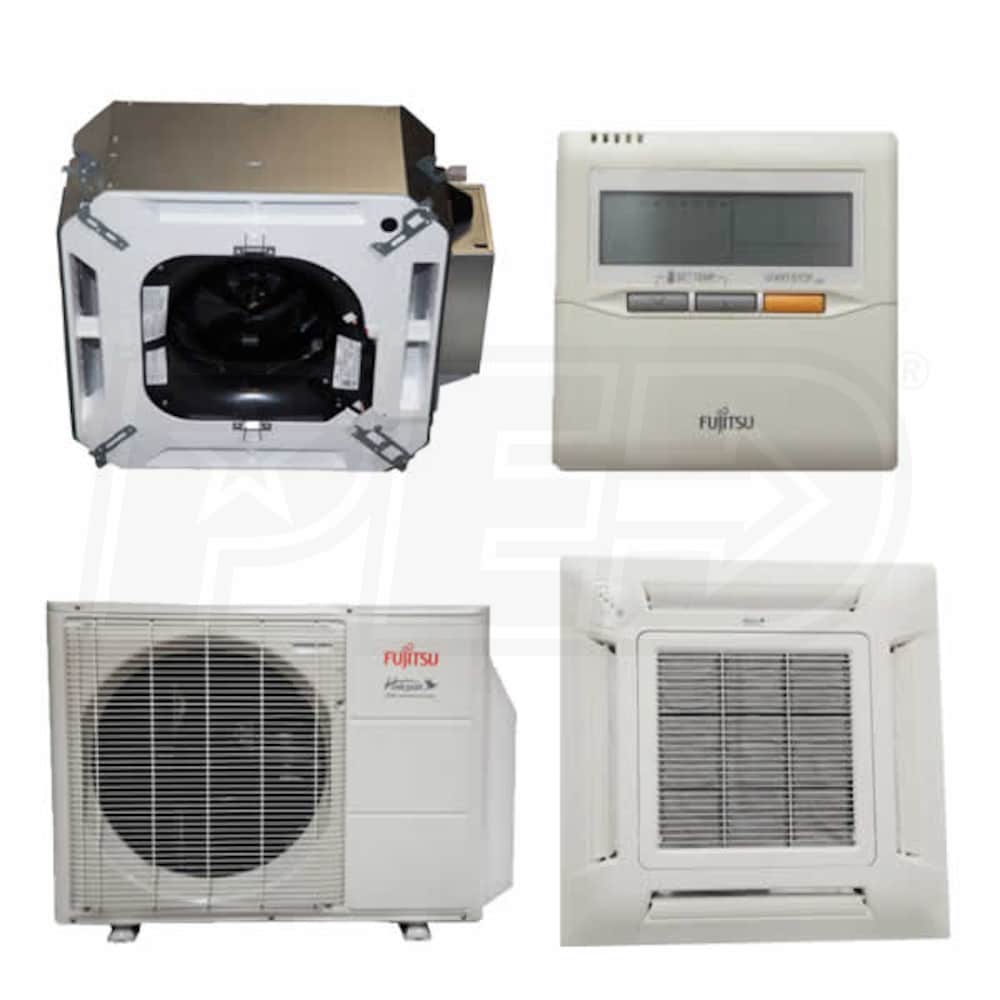

Fujitsu - 12k BTU Cooling + Heating - Compact Ceiling Cassette Air Conditioning System - 21.9 SEER

Model:

12RLFCC

Write a Review
$2,023.91
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
&
Lift Gate
  Learn More About Free Freight
In-Stock
Ships in 1-2 Business Days
Shipping to60601
synchrony card logo
$338 / Month
Suggested monthly payments with 6 month financing.
Fujitsu - 12k BTU Cooling + Heating - Compact Ceiling Cassette Air Conditioning System - 21.9 SEER
Fujitsu - 12k BTU Cooling + Heating - Compact Ceiling Cassette Air Conditioning System - 21.9 SEER
Model: 12RLFCC
$2,023.91
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Chris, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the 12RLFCC ceiling cassette mini split system. If you are looking to provide heating and cooling for an individual space, or supplement existing heating and air conditioning equipment, the 12RLFCC mini split system is a reliable and efficient choice. The compact ceiling cassette unit mounts easily in your ceiling, allowing you to install the unit at the center of your zone for ideal airflow coverage. This system has an array of effective operating modes that allow you to customize operations to suit your comfort. The Fujitsu 12RLFCC is a low-profile addition to any home or business.
  • Inverter Technology
  • The 12RLFCC outdoor condenser uses an inverter to drive the compressor, allowing it to match its output to the amount of heating or cooling required by a space, even as conditions change.
  • Low Ambient Heating
  • Fujitsu's low temperature heating technology allows this condenser to safely maintain its rated capacity in outdoor temperatures as low as 20 degrees Fahrenheit. The AOU12RLFC can operate in heating mode in conditions as low as -5 degrees Fahrenheit.
  • Timer Function
  • This system offers seven day programmability with two unique on/off events on each individual day. This allows you to customize heating and cooling operations to suit your personal schedule, improving energy efficiency without compromising your home.
  • Product Includes
    • (1) Fujitsu - 12k BTU - RLFC Outdoor Condenser - Single Zone Only (AOU12RLFC)
    • (1) Fujitsu - 12k BTU - Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (AUU12RLF-NOGRILLE)
    • (1) Fujitsu Halcyon HFI - Ceiling Cassette Grille (UTG-CCGFG)
    Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Cable - This durable, insulated cable provides power to your indoor unit from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Fujitsu - 12k BTU - RLFC Outdoor Condenser - Single Zone Only (AOU12RLFC)
  • (1) Fujitsu - 12k BTU - Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (AUU12RLF-NOGRILLE)
  • (1) Fujitsu Halcyon HFI - Ceiling Cassette Grille (UTG-CCGFG)
12RLFCC
specs product image PID-65838
General Information
Type
Ceiling Cassette
Product Line
Halcyon
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
12
Outdoor Unit Size
12000 BTU
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Heating Capacity
16000 BTU
SEER Learn More
21.9
EER Learn More
12.8
HSPF Learn More
12.2
Minimum Operating Temperature
-5 F
Maximum Operating Temperature
14 F
Minimum Outdoor Temperature for Heating Learn More
-5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
13.4 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Weight
119 Pounds
Shipping Weight
230 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Warranty Learn More
5 Years
Compressor Warranty
10 Limited Years
AOU12RLFC
General Information
Type
Outdoor Condenser
Product Line
RLFC
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
12000
Maximum Sound Level Learn More
50 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
66 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
24 1/2 Inches
Product Width
31 1/12 Inches
Product Depth
11 1/3 Inches
Product Weight
86 Pounds
Shipping Height
28 1/16 Inches
Shipping Width
37 3/16 Inches
Shipping Depth
15 9/16 Inches
Shipping Weight
93 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
AUU12RLF-NOGRILLE
General Information
Type
Ceiling Cassette
Product Line
Halcyon HFI
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wired
Indoor Unit Size(s) Learn More
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
359 CFM
Minimum Air Flow
241 CFM
Minimum Sound Level
28 dB
Maximum Sound Level Learn More
37 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
9 5/8 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
33 Pounds
Shipping Height
10 7/16 Inches
Shipping Width
28 3/4 Inches
Shipping Depth
24 5/8 Inches
Shipping Weight
40 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
UTG-CCGFG
General Information
Type
Grille
Dimensions
Product Height
1 15/16 Inches
Product Width
24 7/16 Inches
Product Depth
24 7/16 Inches
Product Weight
10 Pounds
Shipping Height
4 3/4 Inches
Shipping Width
30 1/8 Inches
Shipping Depth
28 3/4 Inches
Shipping Weight
10 Pounds
