Fantech VHR 100R ES
Fantech VHR 100R ES
Fantech VHR 100R ES
Fantech VHR 100R ES
Fantech VHR 100R ES
Hover to zoom
1 of 2
Fantech VHR 100R ES
Fantech VHR 100R ES

Fantech VHR - 104 CFM - Heat Recovery Ventilator (HRV) - Top Ports - 5" Duct - Recirculation Defrost

Model:

VHR 100R ES

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Fantech VHR - 104 CFM - Heat Recovery Ventilator (HRV) - Top Ports - 5
Fantech VHR - 104 CFM - Heat Recovery Ventilator (HRV) - Top Ports - 5" Duct - Recirculation Defrost
Model: VHR 100R ES
Was $649.00
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals

Features

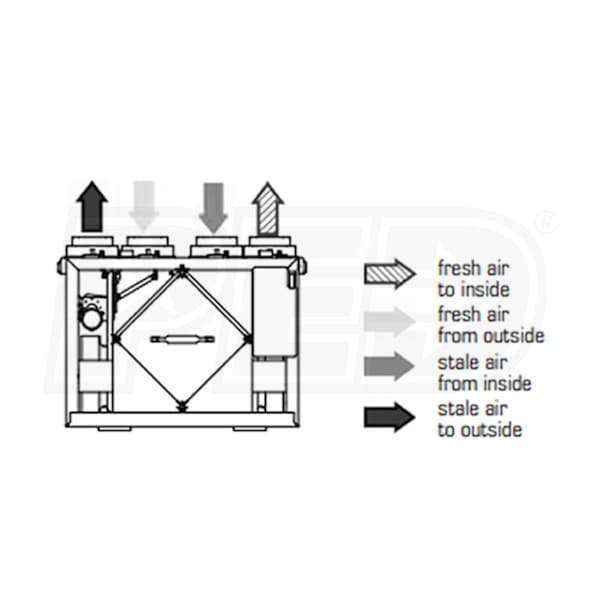

    The Fantech VHR100R ES is a 104 CFM heat recovery ventilator (HRV) with top ports defrost capabilities. The VHR100R ES is a 120-volt unit designed with 4 ports with 5" ducts. HRVs make your heating and cooling systems more efficient by transferring heat between fresh and stale air during ventilation. Its compact size makes this HRV easy to mount. The VHR100R ES Heat Recovery Ventilator (HRV) features an aluminum core, washable electrostatic filters and internal recirculation defrost.
  • Heat Recovery Core
  • An aluminum heat recovery core provides improved heat transfer capacity while taking up less space than traditional cores. Fantech designs their heat recovery cores to withstand drastic temperature variations.
  • Winter Guard™ Defrost
  • The recirculation defrost sequence automatically adjusts based on operating conditions without depressurizing your home, allowing for a smooth transition between Ventilation and Defrost mode.
  • Controls
  • An External rocker switch featuring three positions (Low/Stand By/Medium) that allows for simple control of air flow.
  • Washable Electrostatic Filters
  • Easily washable, these filters can be used throughout the life of the VHR 100R ES.
  • Easy Maintenance and Service
  • Access to all serviceable components are easily gained from the access panel.
  • Product Includes
  • (1) EZ-Mount™ Wall bracket
  • Insulated Cabinet
  • The 24 gauge galvanized steel cabinet is insulated with 1" high density expanded polystyrene. It also has a baked power coated paint for exceptional adhesion and resistance.

Specifications

VHR 100R ES
specs product image PID-83352
General Information
Type
HRV
Product Line
VHR
Defrost Type Learn More
Defrost Type
ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Recirculation
Port Location
Top
UPC
650737632342
Performance
Maximum Air Flow
131 CFM
Apparent Sensible Effectiveness
68 %
Minimum Air Flow
70 CFM
Sensible Recovery Efficiency
63 %
Electrical Data
Voltage
120 Volts
Power Consumption
168 Watts
Phase
1
Frequency
60 Hz
Current Draw
1.4 Amps
Dimensions
Duct Connection
5 Inches
Product Height
17 7/8 Inches
Product Width
22 1/2 Inches
Product Depth
14 1/2 Inches
Product Weight
39.2 Pounds
Shipping Height
17 Inches
Shipping Width
19 Inches
Shipping Length
24 Inches
Shipping Weight
50 Pounds
Certifications
Energy Star Listed
Yes
CSA Listed
Yes
HVI Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Motor Warranty
7 Years

Reviews

(4)
Fantech VHR 100R ES Reviews & Ratings
Verified Buyer
Verified Buyer
Good Value, Meets Code Requirements...
By Benjamin D
London, Ohio
Purchased 09/24/2020 |
Review Posted 10/16/2020
Only thing that I can complain about is the duct connectors are OVAL. No where in the description does it mention this. So when you make a connection with your round pipe, you will have to oval the round pipe heavily to make it fit on the connector. Also have to use a pipe crimper twice to make a he pipe fit into the connector. Will absolutely be a problem if your piping will have to connect to a elbow to turn away from the unit.
Benjamin D Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Features, Quiet, Price
Cons:
Oval connector!!!!!
Verified Buyer
Verified Buyer
This is the best unit I could find on the internet worldwide
By Marinus L.
Portland, Oregon
Purchased 01/14/2019 |
Review Posted 02/27/2019
I am living in New Zealand and ordered it for use here although we have a different mains voltage and frequency (230V / 50Hz). I'll be using this in our new home and use an Eaton UPS to change the mains frequency and a small transformer to step down to 120V/60Hz. I am going through this setup because I could not find a better unit worldwide. I do not understand why humidity is used for automatic control. Using CO2 level as would have been better, perhaps it has to do with reliability (I had two CO2 meters fail on me and they are not cheap). I had expected a small controller to set the three speeds manually, unfortunately I had to buy that separately. Living in New Zealand I would have appreciated a proper schematic that can be used for functionality checking / repair if ever needed.
Marinus L. Recommends This
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the VHR 120R.
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Quality product
By Mark S
west Pittston, Pennsylvania
Purchased 11/15/2018 |
Review Posted 01/25/2019
Fantech's customer service/tech assistance is exceptional. If you have any problems with installation or wiring, they go out of there way to help you get it installed.
Mark S Recommends This
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the FLEX 100H ES.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
GOOD QUALITY
By Bob R
BILLINGS, Montana
Purchased 11/19/2018 |
Review Posted 12/19/2018
WORKS WELL, VERY QUIET
Bob R Recommends This
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the SHR3205RD.
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
4/5
icon-review-marker
