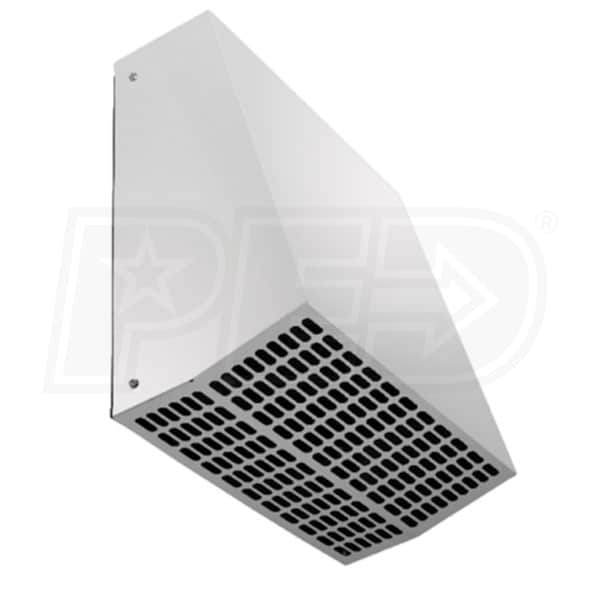

Fantech RVF 1248 CFM Exterior Duct Fan Wall Mount 10" Duct

Model:

RVF10XL

Write A Review
$627.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days
synchrony card logo
$105 / Month
Suggested monthly payments with 6 month financing.
Fantech RVF 1248 CFM Exterior Duct Fan Wall Mount 10
Fantech RVF 1248 CFM Exterior Duct Fan Wall Mount 10" Duct
Model: RVF10XL
$627.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Chris, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Featuring a galvanized steel housing, the Fantech RVF10XL Centrifugal Exterior Duct Fan is the perfect solution for direct through-wall ventilation where quiet operation is required in residential or commercial applications. RVF fan motors mount to the outside wall of the building limiting noise from operation. This 120 volt model can produce a maximum airflow of up to 1248 CFM. The RVF10XL is constructed with a 10" round duct.
  • Permanently Lubricated Sealed Ball Bearings
  • Permanently lubricated sealed ball bearings extend the service life of your fan.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.

Specifications

RVF10XL
specs product image PID-62595
Overview
Product Category
Fans
UPC
743167977326
Additional Model Numbers

RVF10XL, RVF10XL

General Information
Type
Exterior Duct Fan
Product Line
RVF
Product Category
Fans
Mount Type
Wall
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
1248 CFM
Electrical Data
Voltage
120 Volts
Power Consumption
309 Watts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
10 Inches
Product Height
21 1/4 Inches
Product Width
17 7/8 Inches
Product Length
10 Inches
Product Weight
31.3 Pounds
Shipping Width
20 Inches
Shipping Height
14 Inches
Shipping Depth
24 Inches
Shipping Weight
32 Pounds
Certifications
Energy Star Listed
Yes
UL Listed
Yes
CSA Listed
Yes
HVI Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
