Fantech FADE - 304 CFM - Side Wall Exhaust Fan - Wall Mount - 115V - 1 Phase - Fan Only
Fantech FADE - 304 CFM - Side Wall Exhaust Fan - Wall Mount - 115V - 1 Phase - Fan Only
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Permanently Lubricated Sealed Ball Bearings
- Permanently lubricated sealed ball bearings extend the service life of your fan.
- 100% Speed Controllable
- On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
- External Rotor Motor
- An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.

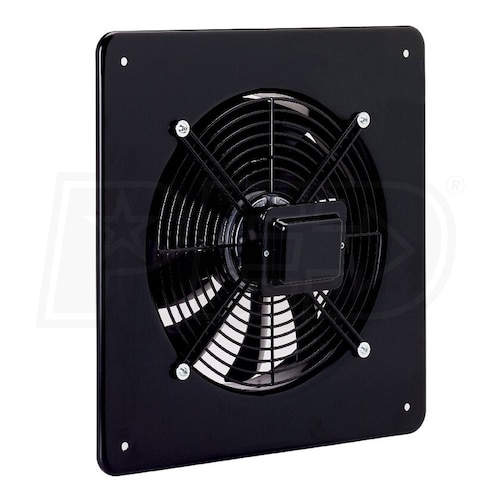

The Fantech FADE 8-4 Side Wall Exhaust Fan is a 304 CFM commercial axial fan. FADE Series fans are wall mounted and are constructed of heavy gauge galvanized steel with a baked powder coat finish. The FADE 8-4 is statically and dynamically balanced for vibration-free operation. It features permanently lubricated sealed ball bearings, 100% controllable airflow, and is suitable for airstream temperatures up to 100 degrees Fahrenheit.
Specifications
General Information
Type
Exhaust Fan
Product Line
FADE
Mount Type
Wall
Assembly Type
Fan Only
Housing Material
Galvanized Steel
UPC
650737340841
Performance
Maximum Air Flow
304 CFM
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
4.1 Sones
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.41 Amps
Dimensions
Product Width
12 5/16 Inches
Shipping Height
10 Inches
Shipping Width
20 Inches
Shipping Length
20 Inches
Shipping Weight
15 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Features
Features
- Permanently Lubricated Sealed Ball Bearings
- Permanently lubricated sealed ball bearings extend the service life of your fan.
- 100% Speed Controllable
- On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
- External Rotor Motor
- An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
The Fantech FADE 8-4 Side Wall Exhaust Fan is a 304 CFM commercial axial fan. FADE Series fans are wall mounted and are constructed of heavy gauge galvanized steel with a baked powder coat finish. The FADE 8-4 is statically and dynamically balanced for vibration-free operation. It features permanently lubricated sealed ball bearings, 100% controllable airflow, and is suitable for airstream temperatures up to 100 degrees Fahrenheit.
Specifications
General Information
Type
Exhaust Fan
Product Line
FADE
Mount Type
Wall
Assembly Type
Fan Only
Housing Material
Galvanized Steel
UPC
650737340841
Performance
Maximum Air Flow
304 CFM
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
4.1 Sones
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.41 Amps
Dimensions
Product Width
12 5/16 Inches
Shipping Height
10 Inches
Shipping Width
20 Inches
Shipping Length
20 Inches
Shipping Weight
15 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Product Specs
+−
Specifications
General Information
Type
Exhaust Fan
Product Line
FADE
Mount Type
Wall
Assembly Type
Fan Only
Housing Material
Galvanized Steel
UPC
650737340841
Performance
Maximum Air Flow
304 CFM
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
4.1 Sones
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.41 Amps
Dimensions
Product Width
12 5/16 Inches
Shipping Height
10 Inches
Shipping Width
20 Inches
Shipping Length
20 Inches
Shipping Weight
15 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
