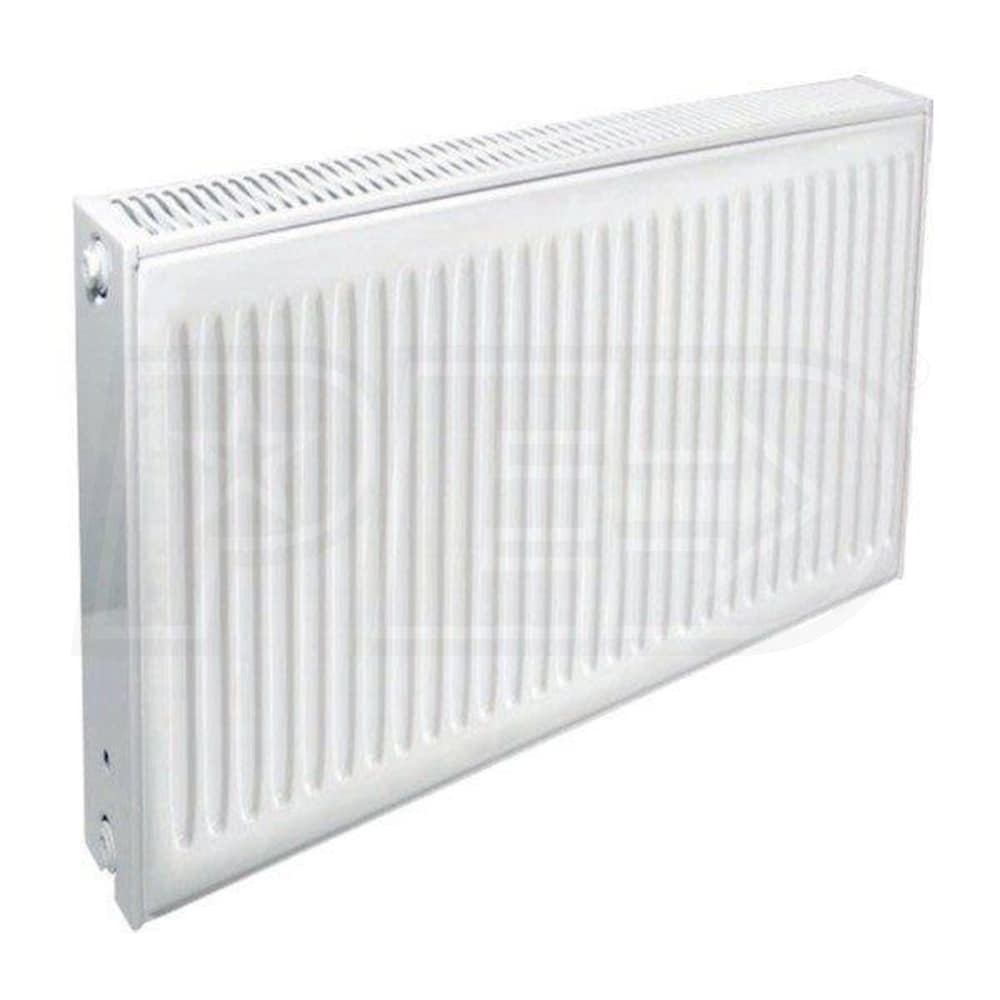

Ecostyle - 6,362 BTU - Hydronic Panel Radiator - 36"H x 24"W - White

Model:

B-36.24 ECO

Write a Review
$389.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 7-14 Business Days

Ecostyle - 6,362 BTU - Hydronic Panel Radiator - 36
Ecostyle - 6,362 BTU - Hydronic Panel Radiator - 36"H x 24"W - White
Model: B-36.24 ECO
$389.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    The Ecostyle line features a wide array of sizes and heat outputs to meet whatever heating needs you may have. This radiator, the B-36.24 ECO, measures 36" tall by 24" wide, features a beautiful Italian design, and provides both radiant and convective heat for maximum efficiency and minimal cold spots. The Ecostyle B-36.24 ECO has an enamel finish over steel to ensure that it will stay beautiful for years. Not only is it easy to install and sub-zone, but its flow-regulating valve allows for individual radiator control.
  • Perfect For Any System
  • You'll find that the B-36.24 ECO is an excellent addition to any system. Ecostyle radiators are compatible with low and high water temperature systems and feature a flow-regulating valve which affords you individual control over each unit.
  • Efficient Heating
  • The Ecostyle B-36.24 ECO contains less water than traditional cast iron radiators. This allows the B-36.24 ECO to begin delivering heat more quickly. The large convector plates make sure this heat is radiated in an efficient manner.
  • Radiant Heat
  • With a heating capacity of 6,362 BTU, the B-36.24 ECO produces both convective heat and radiant heat. Radiant heat makes your room comfortable more quickly by heating people and objects in the room, not just the air.
  • Simple Installation
  • The Ecostyle B-36.24 ECO utilizes clamp mounting brackets, which are included with the product. This means that you can install and remove it easily.
  • Attractive and Durable
  • The B-36.24 ECO is an attractive addition to your home. It has a minimal profile and an enamel finish to discourage scratches and corrosion.
  • Flexible Connection Options
  • With several connection options, Ecostyle Plus radiators are able to adapted for a variety of installation requirements.
  • Product Includes
  • (2) Clamp Brackets
  • (1) Flow Regulating Valve Insert
  • (1) Air Vent
  • (2) Installed Blind Plugs
  • Product Note
    Please see the Installation Manual under the Manuals tab for applicable piping options. Ecostyle radiators do not come with the fittings necessary for installation. These fittings are sold separately and differ depending on the installation requirements. See our Ecostyle Radiator Buying Guide under the How-To Articles tab for details on available fittings for your application.

Specifications

B-36.24 ECO
specs product image PID-24167
General Information
Type
Panel
Product Line
Ecostyle
Medium Learn More
Hot Water
Connection Type
BSP
Material
Steel
UPC
8023585213810
Performance
Heating BTU
6000
Heating Capacity
6362 BTU
Dimensions
Supply Connection
1/2 Inch
Return Connection
1/2 Inch
Product Height
36 Inches
Product Width
24 Inches
Product Depth
4 Inches
Product Weight
68 Pounds
Shipping Weight
78 Pounds
Certifications
ISO Certified
Yes
Warranty Information
Warranty Learn More
10 Years

Reviews

(37)
Ecostyle B-36.24 ECO Reviews & Ratings

Product Q&A

(9)
Expert avatar photo
Product Questions Answered by Bob, the Heating Product Expert
Are these units self contained and therefore would not require covers? If that is the case, your supply and return lines would be exposed, right?
John
from West Virginia
August 16, 2016
Can this unit can be installed with the plumbing line coming from the floor?
Kijana E.
from New York
July 13, 2016
Can PEX piping be used to connect to the boiler with this radiator?
Douglas L.
from Pennsylvania
May 23, 2016
Will this work with a radiant floor exchanger that is not a boiler? Will it work at low temp 140 rather than 180? That may change what system I go with. I want to mix radiators upper floor with radiant floor application for main level.
Dominique
from Montana
January 08, 2016
Is it possible to hang these radiators upside down and do a supply from the top?
Brian
from New York
December 23, 2015
I cannot tell from the manual whether this unit hangs on wall or if stands on floor with "feet"?
Ricky
from Indiana
December 18, 2015
How do you bleed an Ecostyle panel radiator?
Mark
from Texas
December 18, 2015
Can these be used with steam boilers?
Victor
from New York
October 14, 2015
I have an old water radiator, can I use this product to replace it? On my old radiator water enters at one end and exists at the other.
Chris
from New Jersey
September 10, 2015
