Features
- Durastar Ceiling Cassette Features
- Wireless Remote with "Follow-Me" Technology
- Single or Multi Zone Compatible
- Auto Restart
- Auto Changeover
- 24-Hour Timer
- Self Clean Function
- Third-Party Thermostat Interface
- The DR24VINT1 interface works with Durastar indoor units, enabling third-party Wi-Fi compatible thermostats to control them. It's compatible with various 24V Wi-Fi thermostat brands like Nest, Ecobee, Honeywell, and Proselect for wireless control.
- (1) Durastar - 24k - Ceiling Cassette - Multi or Single Zone - Grille Sold Separately (DRAC24F1A-NG)
- (1) Durastar Ceiling Cassette Panel for 24K Model (DRACPANB1A)
Engineered for comfort, Durastar is backed by resilient technology and will withstand the test of time and nature's elements. Providing energy efficient, value-friendly HVAC equipment for every space, Durastar creates a comfortable environment for any homeowner. Durastar mini-splits are ideal for renovations, remodels and zone-specific heating and cooling needs. Featuring "Follow-Me" technology, heating capabilities down to -13°F and efficiencies up to 21.5 SEER (with compatible outdoor condenser), the DRAC series Ceiling Cassettes are perfect for high-quality comfort.
Product Includes
Product Note
Please note, installation manuals are not currently included with your mini split. Please see the Manuals tab for the Installation Manual.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Durastar - 24k - Ceiling Cassette - Multi or Single Zone - Grille Sold Separately (DRAC24F1A-NG)
- (1) Durastar Ceiling Cassette Panel for 24K Model (DRACPANB1A)

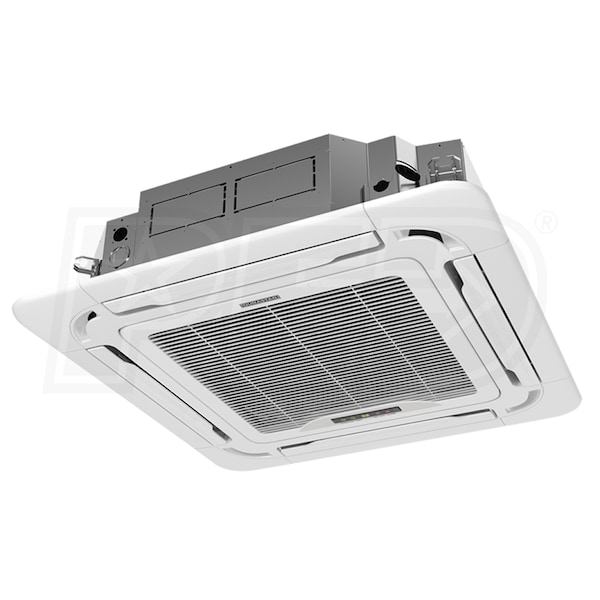

DRAC24F1A
Overview
Product Category
Mini Split System Components
General Information
Type
Ceiling Cassette
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Installation Location
Indoor
Remote Included
Yes
Performance
Cooling BTU
24000
Heating BTU
24400
Maximum Air Flow
878 CFM
Minimum Air Flow
625 CFM
Minimum Sound Level
43 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
51 dB
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
8 1/16 Inches
Product Width
33 1/16 Inches
Product Depth
33 1/16 Inches
Product Weight
46.3 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
DRAC24F1A-NG
General Information
Type
Ceiling Cassette
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Remote Control
Included
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Installation Location
Indoor
Remote Included
Yes
Performance
Cooling BTU
24000
Heating BTU
24400
Maximum Air Flow
878 CFM
Minimum Air Flow
625 CFM
Minimum Sound Level
43 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
51 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
8 1/16 Inches
Product Width
33 1/16 Inches
Product Depth
33 1/16 Inches
Product Weight
46.3 Pounds
Certifications
Energy Star Listed
Yes
ETL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years

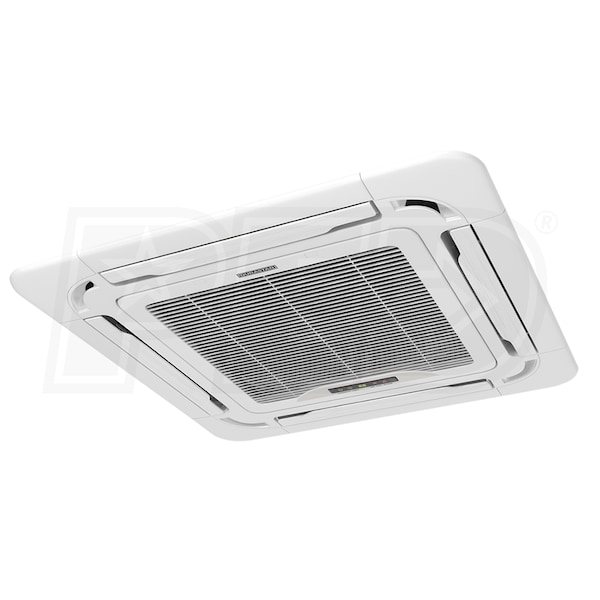

DRACPANB1A
General Information
Type
Grille
Installation Location
Indoor
Dimensions
Product Height
2 3/16 Inches
Product Width
37 7/16 Inches
Product Depth
37 7/16 Inches
Product Weight
11 Pounds
Reviews
Durastar DRAC24F1A Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
Be the First to Ask A Question
Answered by Ken, the eComfort Product Expert
How-To Articles
How to Pick the Perfect Mini Split Ceiling Cassette Unit
Many of us like it when our heating and cooling equipment is out of sight and o...
eComfort Boosts Comfort and Energy Savings at Historic Home
Owning a historic home can be very rewarding. But those rewards come with respo...
How to Pick the Perfect Mini Split Suspended Indoor Unit
A ceiling-suspended mini split is the perfect ductless solution for large open ...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

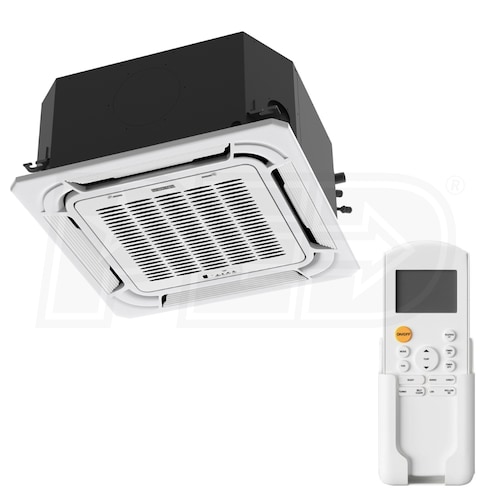

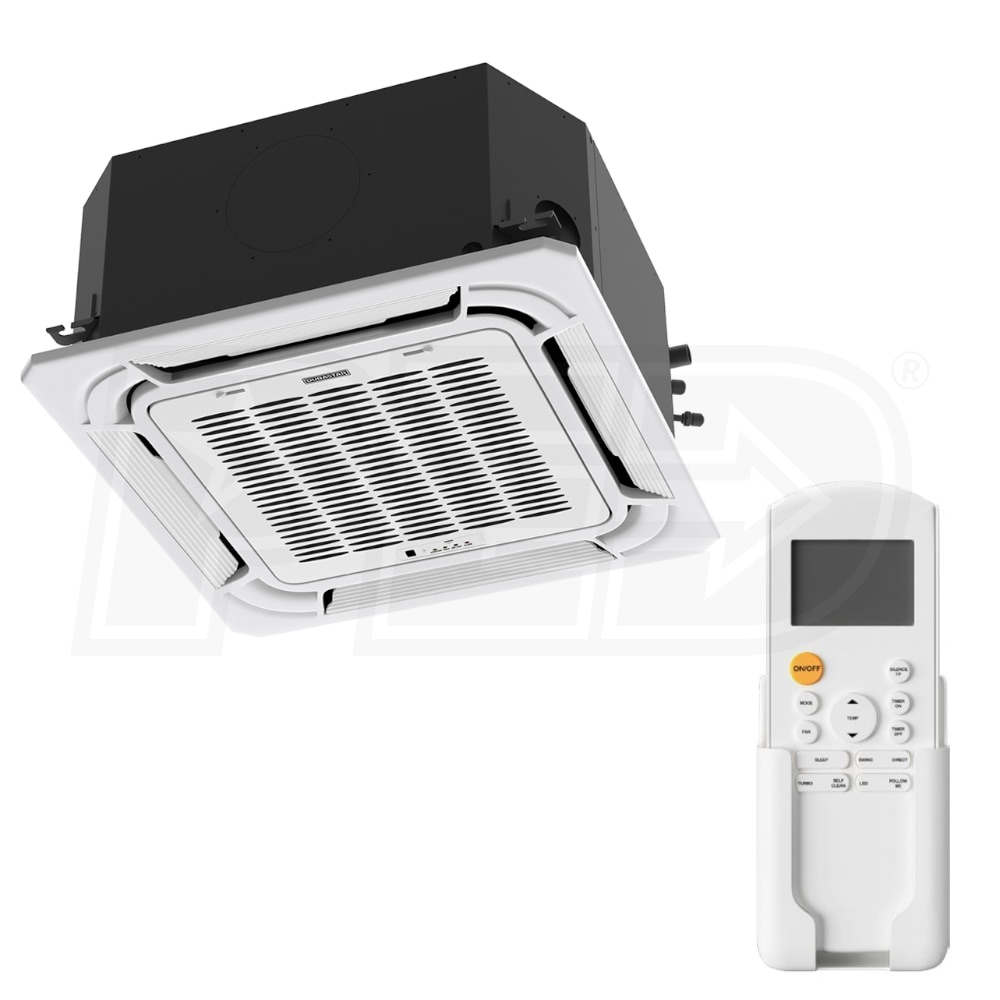

Durastar - 24k BTU - Ceiling Cassette - Multi or Single Zone
