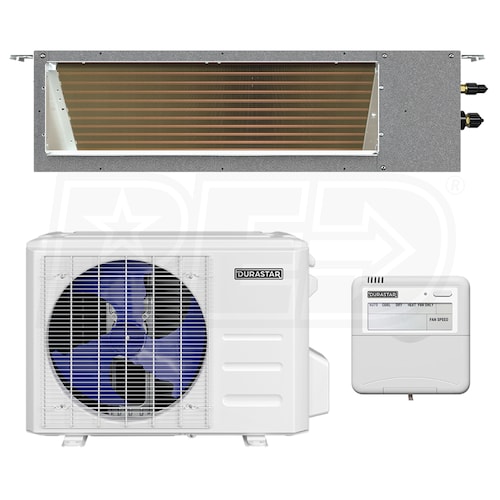

Durastar - 12k BTU Cooling + Heating - Concealed Duct Air Conditioning System - 21.5 SEER

Model:

DR1H12D12

Write a Review
$1,384.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
&
Lift Gate
  Learn More About Free Freight
In-Stock
Ships in 1-2 Business Days
Shipping to60601
synchrony card logo
$231 / Month
Suggested monthly payments with 6 month financing.
Durastar - 12k BTU Cooling + Heating - Concealed Duct Air Conditioning System - 21.5 SEER
Durastar - 12k BTU Cooling + Heating - Concealed Duct Air Conditioning System - 21.5 SEER
Model: DR1H12D12
$1,384.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Chris, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Engineered for comfort, Durastar is backed by resilient technology and will withstand the test of time and nature's elements. Providing energy efficient, value-friendly HVAC equipment for every space, Durastar creates a comfortable environment for any homeowner. Durastar mini-splits are ideal for renovations, remodels and zone-specific heating and cooling needs
  • Durastar Slim Ducted Air Conditioning System Features
  • Wired Thermostat Included
  • Auto Restart
  • Auto Changeover
  • 24-Hour Timer
  • Product Includes
    • (1) Durastar - 12k BTU - Concealed Duct - For Multi or Single Zone (DRAD12F1A)
    • (1) Durastar - 12k BTU - Single Zone Outdoor Unit (DRA1U12S1A)
    Product Note
    Please note, installation manuals are not currently included with your mini split. Please see the Manuals tab for the Installation Manual.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Durastar - 12k BTU - Concealed Duct - For Multi or Single Zone (DRAD12F1A)
  • (1) Durastar - 12k BTU - Single Zone Outdoor Unit (DRA1U12S1A)
DR1H12D12
specs product image PID-113054
General Information
Type
Concealed Duct
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
12
Outdoor Unit Size
12000 BTU
DOE Regional Compliance Learn More
Nationwide
Line Set Size
1/4" x 1/2"
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Heating Capacity
12100 BTU
SEER Learn More
21.5
EER Learn More
12.5
HSPF Learn More
11.5
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-13 F
Minimum Outdoor Temperature for Cooling
5 F
Electrical Data
Voltage
208/239 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
119.7 Pounds
Shipping Weight
137.2 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
206369522
DRA1U12S1A
General Information
Type
Outdoor Condenser
Operating Mode Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Installation Location
Outdoor
Performance
Cooling BTU
12000
Heating BTU
12000
SEER Learn More
21.5
EER Learn More
14
HSPF Learn More
11.5
Maximum Air Flow
1176 CFM
Maximum Sound Level Learn More
55 dB
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 13/16 Inches
Product Width
31 1/2 Inches
Product Depth
13 1/8 Inches
Product Weight
80.5 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
Warranty Information
Parts Warranty Learn More
10 Years
DRAD12F1A
General Information
Type
Concealed Duct
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Indoor Unit Size(s) Learn More
12
Installation Location
Indoor
Remote Included
Yes
Wired Thermostat
Included
Performance
Cooling BTU
12000
Heating BTU
12000
Maximum Air Flow
353 CFM
Minimum Air Flow
177 CFM
Minimum Sound Level
33.5 dB
Maximum Sound Level Learn More
38 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
7 7/8 Inches
Product Width
27 9/16 Inches
Product Depth
19 15/16 Inches
Product Weight
39.2 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
Warranty Information
Parts Warranty Learn More
10 Years
