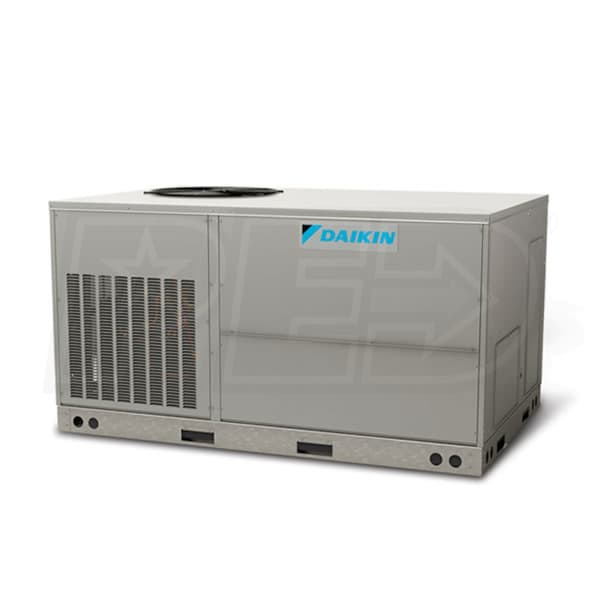

Daikin DSH - 5 Ton - Packaged Heat Pump System - 14 SEER - 8.0 HSPF - Direct Drive - 208-230/3/60

Daikin DSH - 5 Ton - Packaged Heat Pump System - 14 SEER - 8.0 HSPF - Direct Drive - 208-230/3/60
Our Price
Compare Prices
Shipping Info
Model: DSH060XXX3DXXX
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews (0)
Write A Review
$3,817.00

Ships in 7-14 Business Days
Shipping Crate Icon
Free Shipping
Free Lift Gate Service -
Cooling Capacity (Tons) Learn More
Cooling Capacity (Tons)
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
Motor Type Learn More
Motor Type
Motor type refers to the technology that a motor uses, some of which result in more efficient operation. For example, a single-speed motor (PSC) will provide less efficient operation than a variable-speed motor (ECM/EEM).
Heating Capacity (BTU/h)
Voltage/Phase
Add-Ons
Free Shipping$3,817.00Buy Now
$3,817.00Visit Site
Ships in 7-14 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Daikin's packaged HVAC systems offer the perfect all-in-one comfort solution for nearly any residential or light commercial application. The DSH series combines a heat pump, evaporator coil, and blower all into one unit. Daikin's high-performance compressors operate in tandem with their efficient coil design, providing powerful heating and cooling without wasting energy. The DSH's heavy-gauge, galvanized steel cabinet will protect its inner components from all the elements for years to come. Compatible with ground-level or rooftop installations in horizontal or downflow applications, this versatile unit can be adapted for almost any installation requirement.
  • High-Efficiency Coils
  • The condenser coil of this packaged unit is designed with aluminum fins and rifled copper tubing to maximize surface area and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer.
  • High-Efficiency Scroll Compressor
  • This unit utilizes a high-efficiency scroll compressor to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
  • Secure Cabinet
  • The cabinet of the DSH unit is made from heavy-gauge, galvanized-steel with a UV-resistant powder paint finish to protect itself from the elements and ensure longevity.
  • Steel-Cased Filter Drier
  • A filter drier is installed in the liquid line of this packaged unit's air conditioner. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the condenser.
  • Easy Access
  • The DSH is easily accessible for maintenance and features a built-in filter rack for simple upkeep.
Specifications
General Information
Type
Heat Pump Packaged Unit
Product Line
DSH
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Blower Motor
Single-Speed
Motor Type
Direct Drive
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow/Horizontal
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
No
UPC
663051541535
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5 Tons
Cooling BTU
60000
Heating Capacity
57000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
8.0
Maximum Air Flow
2000 CFM
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
78 dB
Electrical Data
Voltage
208/230 Volts
Phase
3
Frequency
60 Hz
Minimum Circuit Ampacity
29.1 Amps
Recommended Breaker Size
45 Amps
Dimensions
Product Height
42 13/16 Inches
Product Width
74 1/16 Inches
Product Depth
48 3/16 Inches
Product Weight
675 Pounds
Shipping Weight
675 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
9967143
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Features
Features
    Daikin's packaged HVAC systems offer the perfect all-in-one comfort solution for nearly any residential or light commercial application. The DSH series combines a heat pump, evaporator coil, and blower all into one unit. Daikin's high-performance compressors operate in tandem with their efficient coil design, providing powerful heating and cooling without wasting energy. The DSH's heavy-gauge, galvanized steel cabinet will protect its inner components from all the elements for years to come. Compatible with ground-level or rooftop installations in horizontal or downflow applications, this versatile unit can be adapted for almost any installation requirement.
  • High-Efficiency Coils
  • The condenser coil of this packaged unit is designed with aluminum fins and rifled copper tubing to maximize surface area and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer.
  • High-Efficiency Scroll Compressor
  • This unit utilizes a high-efficiency scroll compressor to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
  • Secure Cabinet
  • The cabinet of the DSH unit is made from heavy-gauge, galvanized-steel with a UV-resistant powder paint finish to protect itself from the elements and ensure longevity.
  • Steel-Cased Filter Drier
  • A filter drier is installed in the liquid line of this packaged unit's air conditioner. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the condenser.
  • Easy Access
  • The DSH is easily accessible for maintenance and features a built-in filter rack for simple upkeep.
Specifications
General Information
Type
Heat Pump Packaged Unit
Product Line
DSH
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Blower Motor
Single-Speed
Motor Type
Direct Drive
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow/Horizontal
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
No
UPC
663051541535
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5 Tons
Cooling BTU
60000
Heating Capacity
57000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
8.0
Maximum Air Flow
2000 CFM
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
78 dB
Electrical Data
Voltage
208/230 Volts
Phase
3
Frequency
60 Hz
Minimum Circuit Ampacity
29.1 Amps
Recommended Breaker Size
45 Amps
Dimensions
Product Height
42 13/16 Inches
Product Width
74 1/16 Inches
Product Depth
48 3/16 Inches
Product Weight
675 Pounds
Shipping Weight
675 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
9967143
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Product Specs
+
Specifications
General Information
Type
Heat Pump Packaged Unit
Product Line
DSH
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Blower Motor
Single-Speed
Motor Type
Direct Drive
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow/Horizontal
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
No
UPC
663051541535
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5 Tons
Cooling BTU
60000
Heating Capacity
57000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
8.0
Maximum Air Flow
2000 CFM
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
78 dB
Electrical Data
Voltage
208/230 Volts
Phase
3
Frequency
60 Hz
Minimum Circuit Ampacity
29.1 Amps
Recommended Breaker Size
45 Amps
Dimensions
Product Height
42 13/16 Inches
Product Width
74 1/16 Inches
Product Depth
48 3/16 Inches
Product Weight
675 Pounds
Shipping Weight
675 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
9967143
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
