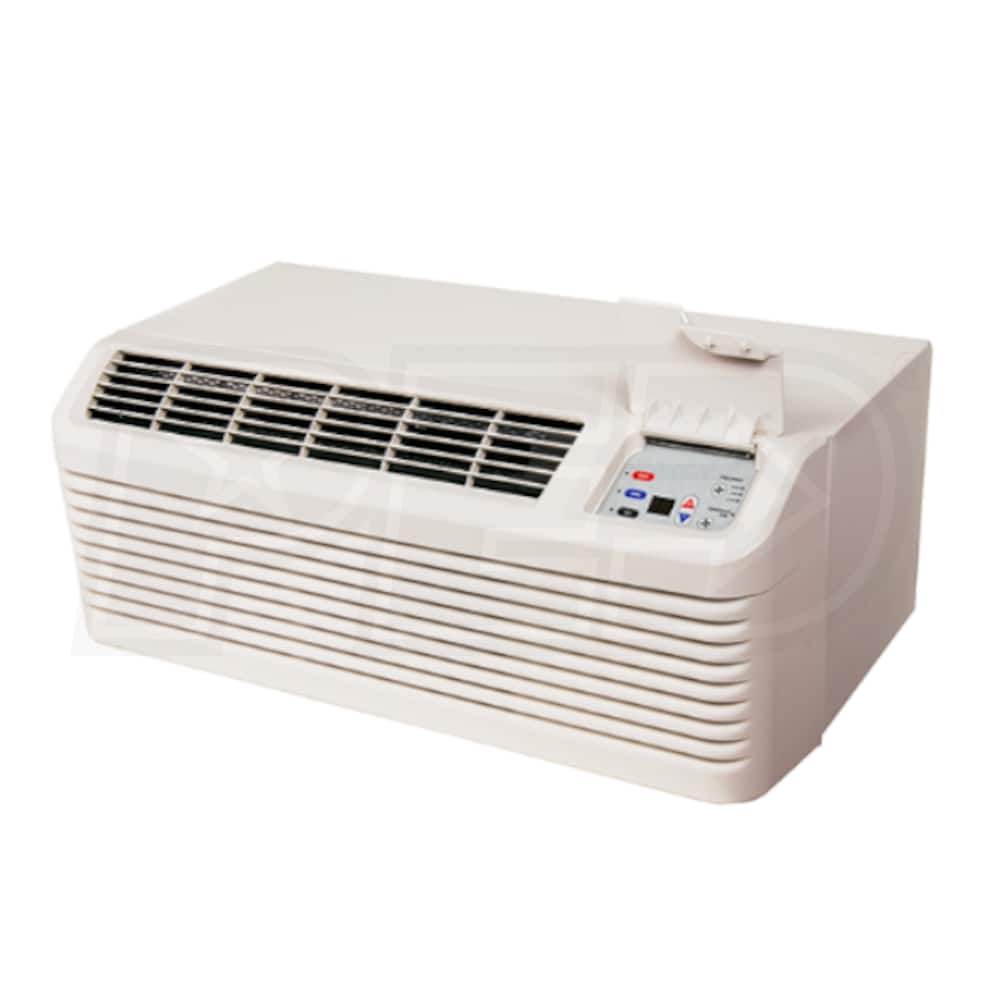

Amana 17k BTU Capacity - Packaged Terminal Air Conditioner (PTAC) - 3.5 kW Electric Heat - 208-230 Volt
Model:
PTC173G35AXXX
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Bob, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Condensate Dispersion System
- The system draws water directly onto the outdoor coil for fast evaporation, leading to increased efficiency. Increased surface area from the coil allows more water to be evaporated even on the sides of the coils, further reducing condensate run-off.
- Fan-Off Delay
- After the compressor stops, the fan continues to run for 30 seconds, improving the dispersion of the conditioned air in the room.
- Quiet Operation
- Two fan motors, and a tangential fan work together to reduce the overall volume of the unit. A quieter unit is less intrusive to every facet of home life, from talking to relaxing to sleeping.
The Amana PTC173G35AXXX is a great choice for home packaged unit needs. A Compressor Lock-in system helps prevent short-cycling, increasing the lifespan. Diagnostic lights and easily accessible filters and coils also contribute to the long life of the unit. Backed by a five year warranty and built in the USA, the PTC series is a durable, reliable and efficient unit that will never disappoint.
Product Note
PTAC units require a wall sleeve and exterior grille for functionality. These can be found under the "Recommended Accessories" tab.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
PTC173G35AXXX
Overview
Product Category
PTAC Unit
UPC
663051533455
General Information
Type
PTAC
Product Line
PTC
Product Category
PTAC Unit
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Electric Heat
Electric Heat
Yes
Performance
Cooling BTU
17000
Cooling Capacity
17000 BTU
Electric Heat Capacity
3.5 kW
Moisture Removal
4.8 Pints/Hour
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
9.4
Cooling Power Input
1740 Watts
Maximum Air Flow
360 CFM
Minimum Air Flow
314 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
8.4 Amps
Recommended Breaker Size
20 Amps
Dimensions
Product Height
16 1/16 Inches
Product Width
42 Inches
Product Depth
13 3/4 Inches
Product Weight
113 Pounds
Shipping Weight
130 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Unit Replacement Warranty
1 Year
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
