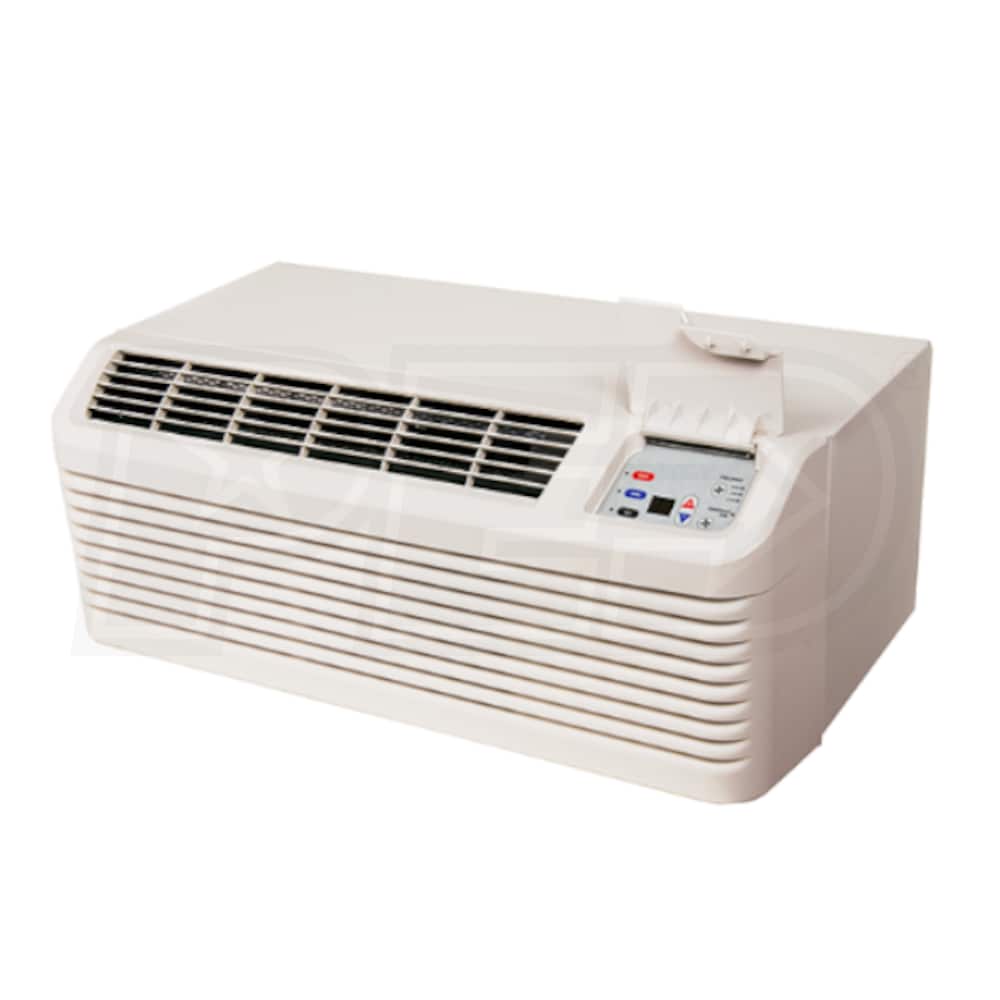

Amana 15k BTU Capacity - Packaged Terminal Air Conditioner (PTAC) - 3.5kW Electric Heat - 208-230 Volt - Corrosion Protection

Model:

PTC153G35CXXX

Write a Review
$890.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 2-5 Business Days
synchrony card logo
$149 / Month
Suggested monthly payments with 6 month financing.
Amana 15k BTU Capacity - Packaged Terminal Air Conditioner (PTAC) - 3.5kW Electric Heat - 208-230 Volt - Corrosion Protection
Amana 15k BTU Capacity - Packaged Terminal Air Conditioner (PTAC) - 3.5kW Electric Heat - 208-230 Volt - Corrosion Protection
Model: PTC153G35CXXX
$890.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    The Amana PTC153G35CXXX is a great choice for home packaged unit needs. A Compressor Lock-in system helps prevent short-cycling, increasing the lifespan. Diagnostic lights and easily accessible filters and coils also contribute to the long life of the unit. Specifically designed for seacoast installations, this PTAC features corrosion protection against high moisture levels. Backed by a five-year parts warranty and built in the USA, the PTC series is a durable, reliable and efficient unit that will never disappoint.
  • Corrosion Protection
  • Ideal for seacoast installations, the PTC153G35CXXX features corrosion protection for extended durability in areas with high moisture levels.
  • Condensate Dispersion System
  • The system draws water directly onto the outdoor coil for fast evaporation, leading to increased efficiency. Increased surface area from the coil allows more water to be evaporated even on the sides of the coils, further reducing condensate run-off.
  • Fan-Off Delay
  • After the compressor stops, the fan continues to run for 30 seconds, improving the dispersion of the conditioned air in the room.
  • Quiet Operation
  • Two fan motors, and a tangential fan work together to reduce the overall volume of the unit. A quieter unit is less intrusive to every facet of home life, from talking to relaxing to sleeping.
  • Product Note
    PTAC units require a wall sleeve and exterior grille for functionality. These can be found under the "Recommended Accessories" tab.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

PTC153G35CXXX
specs product image PID-100214
General Information
Type
PTAC
Product Line
PTC
Operating Mode Learn More
Cooling + Electric Heat
Electric Heat
Yes
Performance
Cooling BTU
15000
Cooling Capacity
14700 BTU
Electric Heat Capacity
3.5 kW
Moisture Removal
4.4 Pints/Hour
EER Learn More
10.0
Cooling Power Input
1500 Watts
Maximum Air Flow
360 CFM
Minimum Air Flow
314 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
19.5 Amps
Recommended Breaker Size
20 Amps
Dimensions
Product Height
16 1/16 Inches
Product Width
42 Inches
Product Depth
21 1/2 Inches
Product Weight
113 Pounds
Shipping Weight
130 Pounds
Warranty Information
Unit Replacement Warranty
1 Year
Parts Warranty Learn More
5 Years
