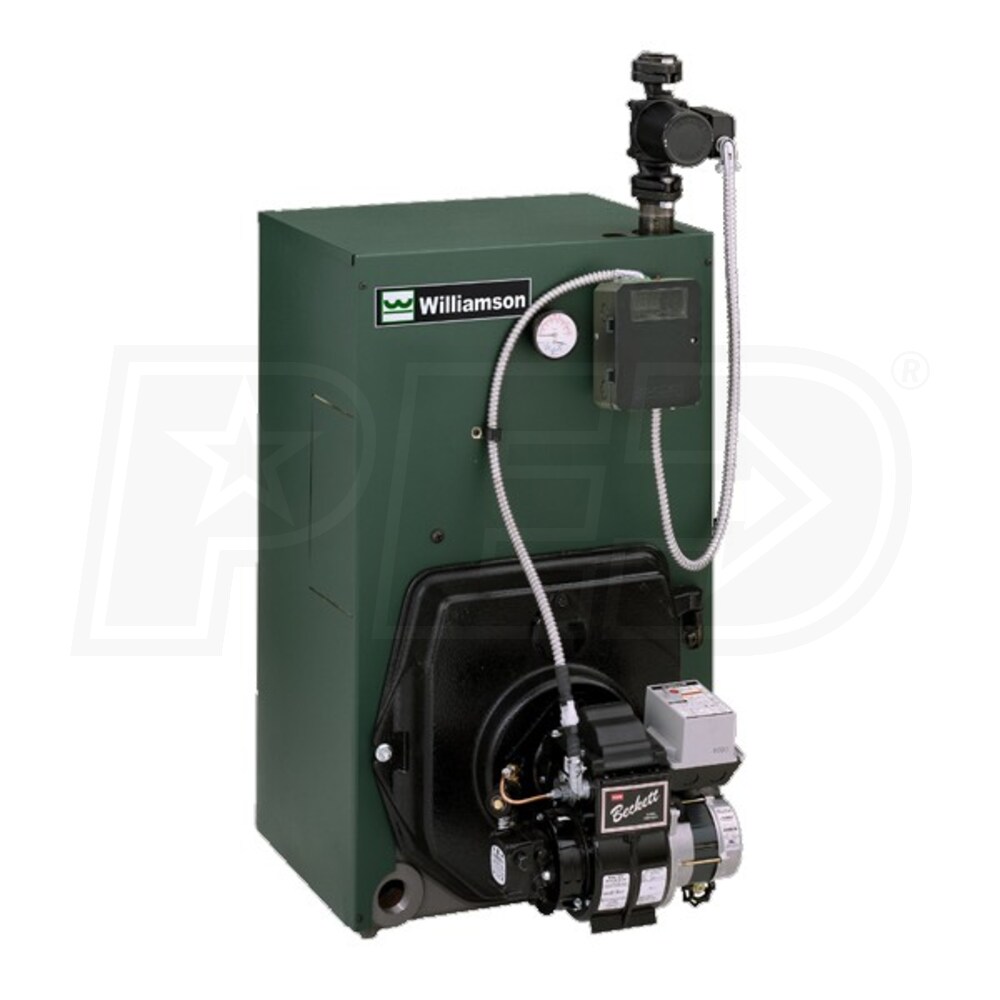

Williamson-Thermoflo OWB-5 - 175K BTU - 85.0% AFUE - Hot Water Oil Boiler - Chimney Vent - Burner Sold Separately

Williamson-Thermoflo OWB-5 - 175K BTU - 85.0% AFUE - Hot Water Oil Boiler - Chimney Vent - Burner Sold Separately
Model: OWB-5-T-S2-W-W
$2,380.95
Ships in 7-14 Business Days
Free Shipping
Free Lift Gate Service -
Add-Ons

Ships in 7-14 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to California, Utah or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    "Uncover warm possibilities" with Williamson-Thermoflo's OWB Oil fired water boiler. The highly efficient OWB-5-T-S2-W pumps out 152,000 BTUs with a thermal efficiency rating of 85 percent. The OWB is also designed with a solenoid valve, PSC motor, and a solid state igniter to maintain that efficiency. This boiler is equipped with many features, such as a temperature limit control, cast-iron sections with built-in separator, and an insulated heavy-gauge steel jacket. The OWB is also easily serviced with a swing-away burner door, top access cleanout cover, and plug-in wiring harness. Since it is factory tested and comes with a limited lifetime warranty on the heat exchanger, you can be absolutely sure that your investment is reliable and built to last.
  • Factory Tested
  • OWB boilers are factory tested, ensuring reliability and properly functioning equipment.
  • Factory Assembled
  • OWB boilers are factory-assembled meaning that the boiler comes ready for installation. This includes the aluminized flue collector, swing-away burner mounting door, with the refractory blanket and recessed target wall in the combustion chamber.
  • Easy Service
  • With a swing-away burner door, top access cleanout cover, and plug-in wiring harness, servicing the OWB boiler easy.
  • Product Includes
  • Taco 007 Circulator Pump
Specifications
General Information
Product Line
OWB
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type
Conventional
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Burner Model
Sold Separately
Performance
Input Rate
1.45 GPH
DOE Heating Capacity Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
175000 BTU
Net I=B=R Capacity I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
152000 BTU
AFUE AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
85 %
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Supply Connection
1.5 Inches
Return Connection
1.5 Inches
Product Height
35.625 Inches
Product Width
20.25 Inches
Product Depth
20 Inches
Product Weight
760 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Heat Exchanger Warranty
Lifetime Years
Features
Features
    "Uncover warm possibilities" with Williamson-Thermoflo's OWB Oil fired water boiler. The highly efficient OWB-5-T-S2-W pumps out 152,000 BTUs with a thermal efficiency rating of 85 percent. The OWB is also designed with a solenoid valve, PSC motor, and a solid state igniter to maintain that efficiency. This boiler is equipped with many features, such as a temperature limit control, cast-iron sections with built-in separator, and an insulated heavy-gauge steel jacket. The OWB is also easily serviced with a swing-away burner door, top access cleanout cover, and plug-in wiring harness. Since it is factory tested and comes with a limited lifetime warranty on the heat exchanger, you can be absolutely sure that your investment is reliable and built to last.
  • Factory Tested
  • OWB boilers are factory tested, ensuring reliability and properly functioning equipment.
  • Factory Assembled
  • OWB boilers are factory-assembled meaning that the boiler comes ready for installation. This includes the aluminized flue collector, swing-away burner mounting door, with the refractory blanket and recessed target wall in the combustion chamber.
  • Easy Service
  • With a swing-away burner door, top access cleanout cover, and plug-in wiring harness, servicing the OWB boiler easy.
  • Product Includes
  • Taco 007 Circulator Pump
Specifications
General Information
Product Line
OWB
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type
Conventional
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Burner Model
Sold Separately
Performance
Input Rate
1.45 GPH
DOE Heating Capacity Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
175000 BTU
Net I=B=R Capacity I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
152000 BTU
AFUE AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
85 %
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Supply Connection
1.5 Inches
Return Connection
1.5 Inches
Product Height
35.625 Inches
Product Width
20.25 Inches
Product Depth
20 Inches
Product Weight
760 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Heat Exchanger Warranty
Lifetime Years
Product Specs
+
Specifications
General Information
Product Line
OWB
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type
Conventional
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Burner Model
Sold Separately
Performance
Input Rate
1.45 GPH
DOE Heating Capacity Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
175000 BTU
Net I=B=R Capacity I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
152000 BTU
AFUE AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
85 %
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Supply Connection
1.5 Inches
Return Connection
1.5 Inches
Product Height
35.625 Inches
Product Width
20.25 Inches
Product Depth
20 Inches
Product Weight
760 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Heat Exchanger Warranty
Lifetime Years
