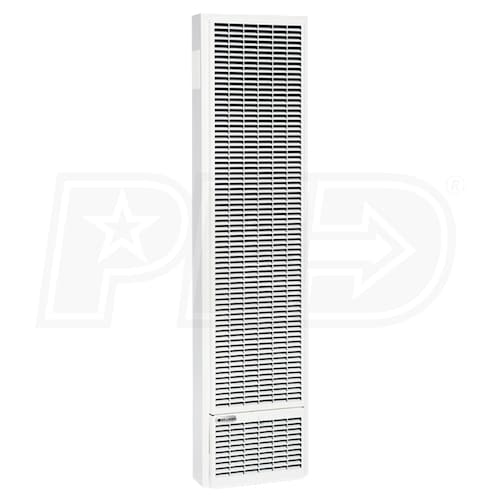

Williams - 30k BTU - Gas Top Vent - Wall Furnace - LP - 82% AFUE - Single Sided
Williams - 30k BTU - Gas Top Vent - Wall Furnace - LP - 82% AFUE - Single Sided
Model: AC2030TP
Was $2,890.00
Product Q&A
How-To Articles

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10


    The AC2030TP top vent gas wall heater is the next generation high performance vented wall furnace heating solution. The AC2030TP offers traditional home comfort by lowering heating costs, adding convenience and high efficiency. Individual rooms can also be heated comfortably while saving on fuel costs in unused areas. The AC2030TP can be recessed or surface-mounted and are great in homes, schools, cabins, apartments, offices and shops.
  • Superior Comfort and Efficiency
  • Sustainable 82% AFUE ultra-low NOx emissions.
  • Dynamic Response
  • Energy savings and constant comfortable temperature or just enough heat for your desired environment.
  • No Standing Pilot
  • Eliminates seasonal relighting, saves energy and eliminates methane emissions.
  • Quiet Fans
  • Offer improved comfort and air circulation.
  • Reduced Carbon Footprint
  • Fits into the same opening and uses the same venting as the traditional Monterey wall furnace.
  • Programmable thermostat included for energy savings and comfort
  • Multiple Heating Schedule and Temperatures, BTU Output, Date and Time and Manual and Auto Modes.
  • Product Note
    A programmable thermostat is included with this unit. Product dimensions reflect measurement of furnace coming out from the wall.
California residents see
Warning: This product can expose you to chemicals including Epichlorohydrin which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov


specs product image PID-124697
General Information
Gas Wall Furnace
Product Category
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Top Vent
Modulating/Staging Learn More
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Gas Conversion Kit
AFUE Learn More
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
82 %
Heating BTU
High Fire Input
30000 BTU
High Fire Output
25428 BTU
Gas Connection Size
1/2 Inch
Product Height
65 3/4 Inches
Product Width
16 Inches
Product Depth
6 Inches
Product Weight
106 Pounds
Shipping Weight
120 Pounds
CSA Listed
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
