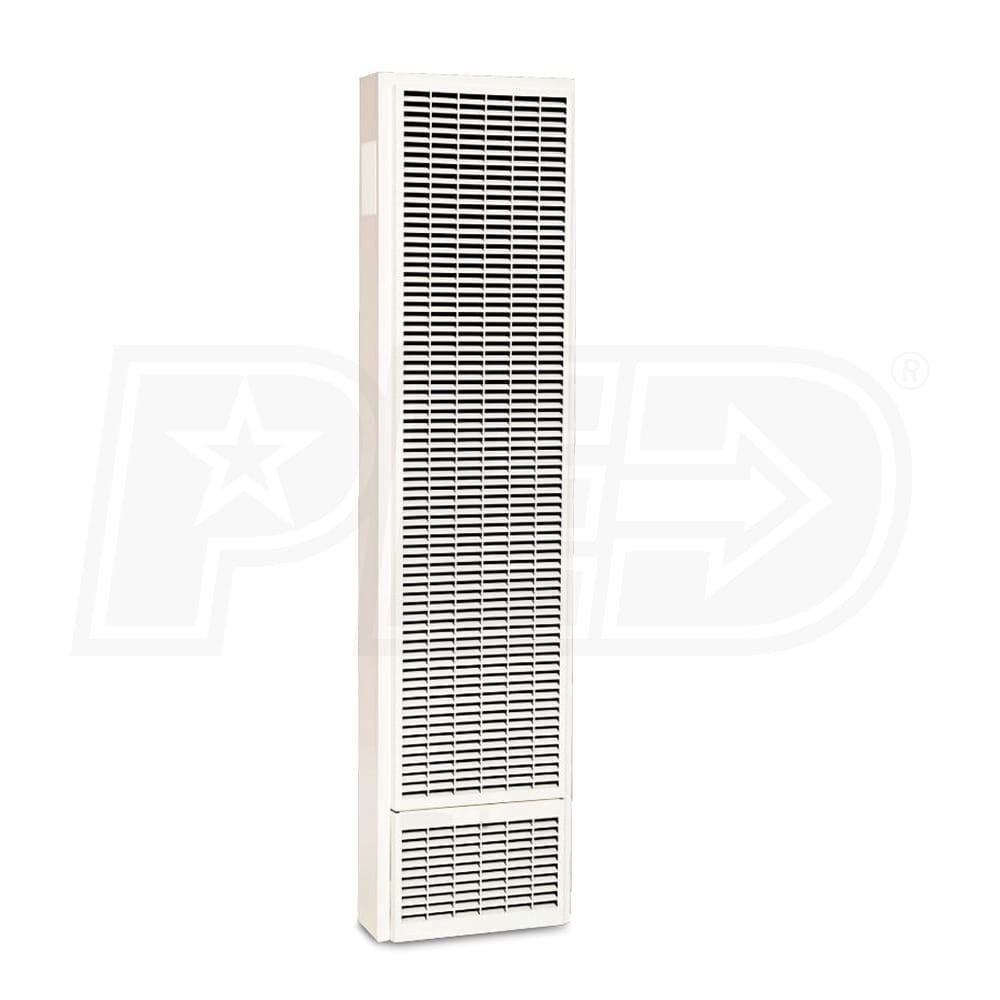

Williams Monterey - 25,000 BTU - Gas Fired Wall Furnace - LP - 70% AFUE - Single Sided
Model:
2509621A
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Safe Pilot Ignition
- With matchless pilot ignition, the guess work is taken out of lighting the furnace. By sealing the pilot and ignitor away from dirt and debris, the electronic igniter lights the furnace safely and reliably.
- Power Free Operation
- A lot of things can go wrong during a power outage, but your furnace shutting off is not one of them. It will continue to work even when you lose power.
- Efficient Draft Hood Design
- The side-relief opening draft hood is designed to pull draft air from the sides of the furnace to limit heat loss through the chimney.
- Vent Limit Safety Switch
- The vent limit safety switch is equipped on all Monterey furnaces. This turns off the unit in case the chimney is blocked, protecting your family from carbon monoxide and fires.
- Optional Blower
- An optional blower offering manual or automatic operation is available. This improves circulation of the warm air and reduces temperature differences throughout the room.
The Williams Monterey Wall furnace is an ideal solution for you space heating needs. The patented side relief draft hood design reduces heat loss and ensures that you spend less and stay more comfortable. Whether recessed into the wall or surface mounted using the optional free standing kit, the soft-white powder coated finish provides a discrete durable finish that blends into any home's decor.
Product Note
A thermostat does not come included with this unit and is required. The Williams P322016 thermostat is compatible and can be found under the "Accessories" tab. Alternatively, any standard millivolt thermostat can be used. Product dimensions reflect measurement of furnace coming out from the wall.
California residents see
Warning: This product can expose you to chemicals including Epichlorohydrin which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
2509621A
Overview
Product Category
Furnace
UPC
0093909298975
General Information
Type
Gas Wall Furnace
Product Line
Monterey
Product Category
Furnace
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Gas Conversion Kit
Available
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
70 %
Heating BTU
25000
High Fire Input
25000 BTU
High Fire Output
17870 BTU
Dimensions
Gas Connection Size
1/2 Inch
Product Height
65 3/4 Inches
Product Width
16 Inches
Product Depth
6 Inches
Product Weight
73 Pounds
Shipping Weight
83 Pounds
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
