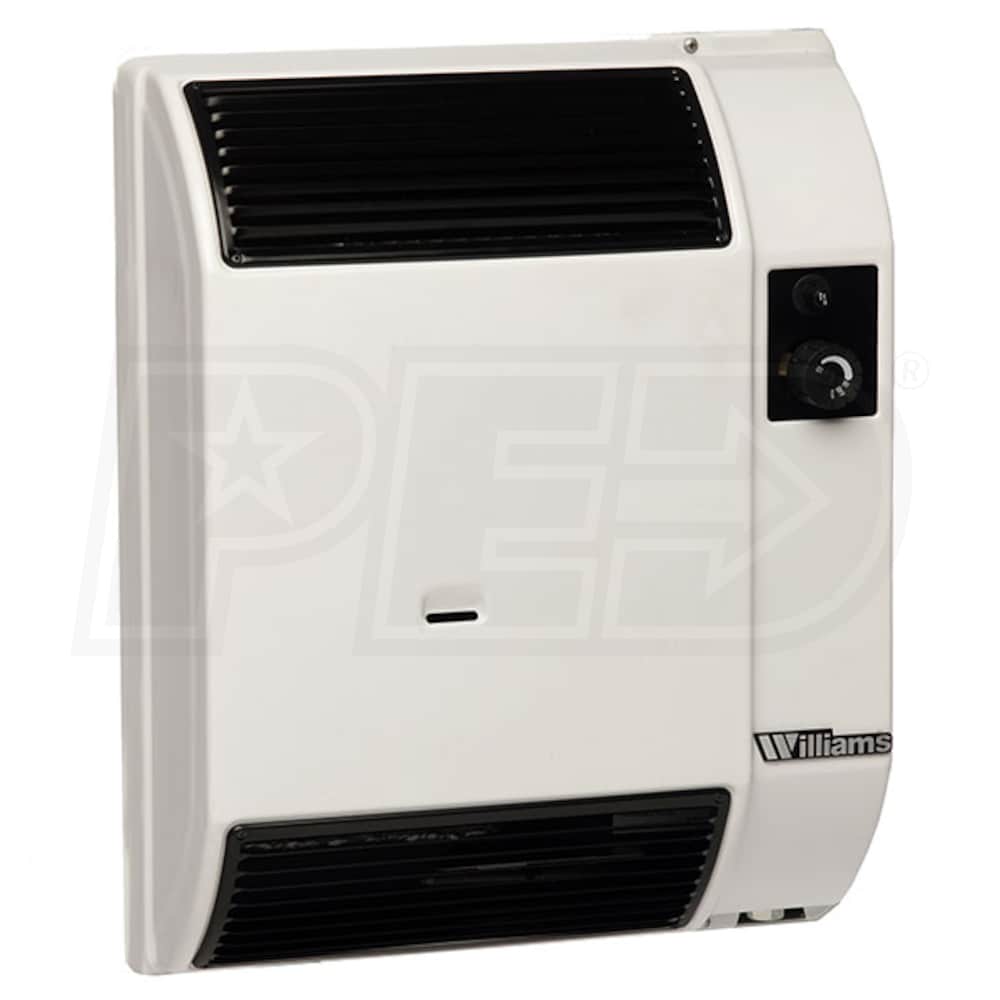

Williams High-Efficiency Direct-Vent - 7,400 BTU - Gas Fired Furnace - LP - 72% AFUE - Single-Stage - Wall Mounted - Up To 5,500 Ft Altitude

Model:

0743511

Write A Review
$2,280.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
synchrony card logo
$380 / Month
Suggested monthly payments with 6 month financing.
Williams High-Efficiency Direct-Vent - 7,400 BTU - Gas Fired Furnace - LP - 72% AFUE - Single-Stage - Wall Mounted - Up To 5,500 Ft Altitude
Williams High-Efficiency Direct-Vent - 7,400 BTU - Gas Fired Furnace - LP - 72% AFUE - Single-Stage - Wall Mounted - Up To 5,500 Ft Altitude
Model: 0743511
$2,280.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Williams High-Efficiency Direct-Vent Furnaces are a low-profile solution that need just minutes to warm up any room. Direct vent operation means that inside air is not needed for combustion, so your warm air stays inside where it belongs. With a clean, durable white finish and space-saving wall mounted design, the Williams High-Efficiency Direct-Vent Furnace is a perfect heating option in almost any room.
  • Space-Saving Size
  • The High-Efficiency model is a low-profile furnace that can fit in just about any space. Having a unique wall mount design, this furnace requires no floor space.
  • No Electricity Needed
  • During power outages, you have a lot to worry about, but your furnace won't be one. The Direct-Vent furnace requires no electricity and all models are equipped with a self-generating millivolt thermostat that may be wall or cabinet-mounted.
  • Sealed Combustion
  • Rather than using indoor air to fuel combustion, the Williams 0743511 pulls intake air directly from the outdoors. This means the heat your furnace generates isn't fed back into the system, maximizing efficiency.
  • Easy Installation
  • The Williams Direct Vent furnace mounts directly on the outside-facing wall. Venting is accomplished through a single 9" opening to the outdoors and vent materials that will accommodate most installations are included.
  • Product Includes
  • Williams High-Efficiency LP Direct-Vent Furnace
  • All Vent Materials Needed for a 9" Thick Wall
California residents see
Warning: This product can expose you to chemicals including Epichlorohydrin which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

0743511
specs product image PID-62310
General Information
Type
Gas Wall Furnace
Product Line
High-Efficiency Direct-Vent
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Wall
Gas Conversion Kit
Available
Color
White
UPC
093909131562
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
72 %
Heating BTU
7400
High Fire Input
7400 BTU
High Fire Output
5500 BTU
Dimensions
Gas Connection Size
1/2 Inch
Product Height
22 1/4 Inches
Product Width
18 5/8 Inches
Product Depth
6 3/4 Inches
Product Weight
34 Pounds
Shipping Weight
44 Pounds
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Limited 10 Years
