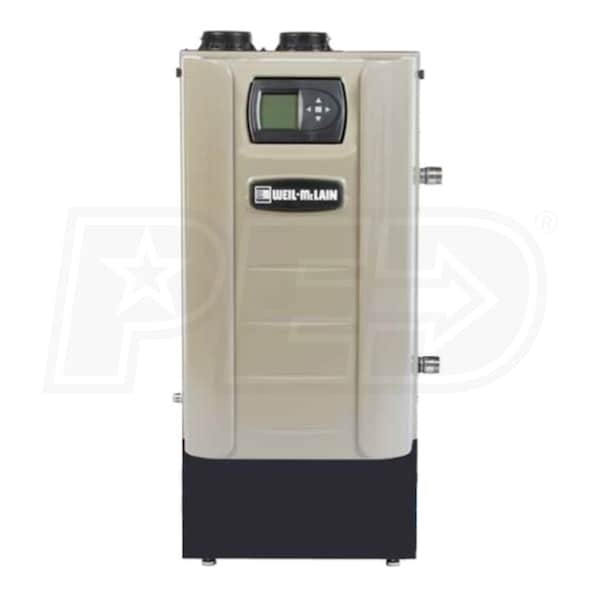

Weil-McLain EVG 70 - 65K BTU - 95.2% AFUE - Hot Water Gas Boiler - Direct Vent

Weil-McLain EVG 70 - 65K BTU - 95.2% AFUE - Hot Water Gas Boiler - Direct Vent
Our Price
Compare Prices
Shipping Info
Model: 383900004
$2,800.00
$2,660.00
Only 4 In-Stock
Ships Thursday, Dec 20th
Free Shipping
Free Lift Gate Service -
Holiday Shipping Schedule
Holiday Schedule -
DOE Heating Capacity (BTU/Hr)
Add-Ons

Only 4 In-Stock
Ships Thursday, Dec 20th
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
    Using its modulating burner to scale fuel use and condensing technology to reuse heat that traditional boilers lose, the Weil-McLain EVG 70 is rated as one of the most efficient boilers on the market. With multiple features making the EVG 70 easy to install and maintain, the Evergreen line has made home boilers easier to use than ever. The flexibility of the Evergreen line is unmatched, as up to eight units can be connected and controlled simultaneously. With the ability to be wall or floor mounted, the Evergreen series boilers can fit in almost any application.
  • Durable Design
  • Using their stainless steel heat exchanger technology and non-metallic condensate base, Weil-McLain has designed one of the most durable boilers available. Built in diagnostic tests will ensure your unit is running at peak efficiency at all times.
  • Simple Efficiency
  • With a 95.2% AFUE efficiency rating, the Evergreen series is one of the most efficient boiler lines on the market. Not only will this keep utility bills lower, but it will help to reduce carbon footprint as well.
  • Easy Heat, Effortless Comfort
  • The Evergreen boilers are easy to install and even easier to maintain. With an optional wall kit (sold separately), they will fit in nearly any space.
  • Innovative Control
  • Evergreen boilers come with an easy-to-use control that features a Setup Wizard, zone and/or priority control, and integrated low water protection. Interactive diagnostic capabilities makes it easy to monitor controls for years of reliable operation.
  • Product Includes
  • (1) Weil-McLain EVG 70 Hot Water Boiler
  • (1) Taco ECM 007e Circulator
  • (1) Wall Mounting Bracket
  • (1) Water Treatment Inhibitor & Test Kit
Specifications
General Information
Product Line
Evergreen
Medium ? Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Condensing
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production ? DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging ? Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Floor/Wall
Maximum Altitude
11000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Gas Conversion Kit
Available
UPC
0672619209510
Performance
Maximum Input Capacity ? The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
70000 BTU
Minimum Input Capacity
14000 BTU
DOE Heating Capacity ? Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
65000 BTU
Net I=B=R Capacity ? I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
57000 BTU
AFUE ? AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
95.2 %
Turndown Ratio
5:1
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
3 Inches
Gas Connection Size
1/2 Inch
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
40 3/4 Inches
Product Width
17 5/8 Inches
Product Depth
18 5/8 Inches
Shipping Weight
125 Pounds
Certifications
Energy Star Listed
Yes
CSA Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
10511532
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
12 Years


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
    Using its modulating burner to scale fuel use and condensing technology to reuse heat that traditional boilers lose, the Weil-McLain EVG 70 is rated as one of the most efficient boilers on the market. With multiple features making the EVG 70 easy to install and maintain, the Evergreen line has made home boilers easier to use than ever. The flexibility of the Evergreen line is unmatched, as up to eight units can be connected and controlled simultaneously. With the ability to be wall or floor mounted, the Evergreen series boilers can fit in almost any application.
  • Durable Design
  • Using their stainless steel heat exchanger technology and non-metallic condensate base, Weil-McLain has designed one of the most durable boilers available. Built in diagnostic tests will ensure your unit is running at peak efficiency at all times.
  • Simple Efficiency
  • With a 95.2% AFUE efficiency rating, the Evergreen series is one of the most efficient boiler lines on the market. Not only will this keep utility bills lower, but it will help to reduce carbon footprint as well.
  • Easy Heat, Effortless Comfort
  • The Evergreen boilers are easy to install and even easier to maintain. With an optional wall kit (sold separately), they will fit in nearly any space.
  • Innovative Control
  • Evergreen boilers come with an easy-to-use control that features a Setup Wizard, zone and/or priority control, and integrated low water protection. Interactive diagnostic capabilities makes it easy to monitor controls for years of reliable operation.
  • Product Includes
  • (1) Weil-McLain EVG 70 Hot Water Boiler
  • (1) Taco ECM 007e Circulator
  • (1) Wall Mounting Bracket
  • (1) Water Treatment Inhibitor & Test Kit
Specifications
General Information
Product Line
Evergreen
Medium ? Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Condensing
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production ? DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging ? Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Floor/Wall
Maximum Altitude
11000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Gas Conversion Kit
Available
UPC
0672619209510
Performance
Maximum Input Capacity ? The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
70000 BTU
Minimum Input Capacity
14000 BTU
DOE Heating Capacity ? Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
65000 BTU
Net I=B=R Capacity ? I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
57000 BTU
AFUE ? AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
95.2 %
Turndown Ratio
5:1
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
3 Inches
Gas Connection Size
1/2 Inch
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
40 3/4 Inches
Product Width
17 5/8 Inches
Product Depth
18 5/8 Inches
Shipping Weight
125 Pounds
Certifications
Energy Star Listed
Yes
CSA Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
10511532
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
12 Years
Product Specs
+
Specifications
General Information
Product Line
Evergreen
Medium ? Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Condensing
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production ? DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging ? Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Floor/Wall
Maximum Altitude
11000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Gas Conversion Kit
Available
UPC
0672619209510
Performance
Maximum Input Capacity ? The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
70000 BTU
Minimum Input Capacity
14000 BTU
DOE Heating Capacity ? Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
65000 BTU
Net I=B=R Capacity ? I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
57000 BTU
AFUE ? AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
95.2 %
Turndown Ratio
5:1
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
3 Inches
Gas Connection Size
1/2 Inch
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
40 3/4 Inches
Product Width
17 5/8 Inches
Product Depth
18 5/8 Inches
Shipping Weight
125 Pounds
Certifications
Energy Star Listed
Yes
CSA Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
10511532
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
12 Years
