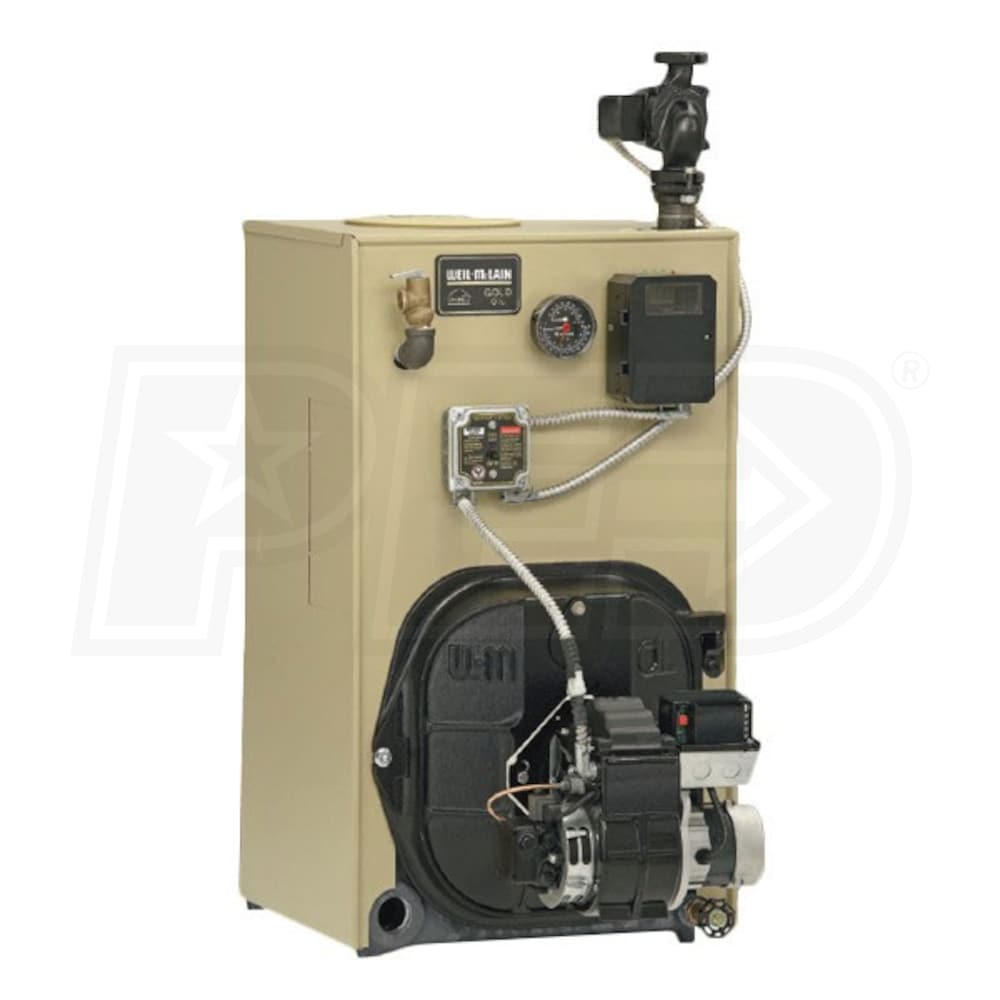

Weil-McLain A-WGO-9 - 295K BTU - 82.7% Thermal Efficiency - Hot Water Oil Boiler - Chimney Vent - Burner and Trim Sold Separately

Model:

A-WGO-9

Write a Review
$3,473.36
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 3-4 Weeks
synchrony card logo
$61 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Weil-McLain A-WGO-9 - 295K BTU - 82.7% Thermal Efficiency - Hot Water Oil Boiler - Chimney Vent - Burner and Trim Sold Separately
Weil-McLain A-WGO-9 - 295K BTU - 82.7% Thermal Efficiency - Hot Water Oil Boiler - Chimney Vent - Burner and Trim Sold Separately
Model: A-WGO-9
$3,473.36
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    Over the last 130 years, Weil-McLain has built a reputation of designing some of the most reliable boilers in the marketplace. Their dedication to producing lasting heating solutions is seen in every boiler they make. The WGO is a flexible, durable, oil-fired heating solution for hot water systems. Efficient energy use is a high point of the WGO's design, allowing you to make the most of your energy dollar. Weil-McLain knows the value of longevity, so they used cast-iron for WGO boiler sections. Between the high efficiency, durable construction, and flexibility, the WGO excels both as a replacement boiler and as an addition to new construction.
  • Simple to Service
  • Inspecting and maintaining a WGO is incredibly simple. Between the swing-away burner door and the quick-open top panel, the WGO is always accessible. Weil-McLain uses a recessed target wall design to protect the unit from flue brushes during cleaning.
  • Captured Seals
  • Silicone-coated fiber ropes are used for sealing the boiler sections. These seals expand and contract with the boiler, keeping the unit watertight and preventing contaminants from entering your system.
  • Venting Flexibility
  • WGO boilers have two vent connections, one on the rear and one on the top. By providing an alternate venting set up, Weil-McLain has ensured that the WGO is suited for a variety of installation conditions.
  • Efficiency-Boosting Insulation
  • Heat retention is critical to energy efficiency. Heat leakage represents energy use without any comfort gains. An extended, insulated steel jacket prevents heat from escaping the WGO and improves the efficiency.
  • Product Includes
    • (1) Weil-McLain WGO - Section Assembly (386700657)
    • (1) Weil-McLain WGO - Jacket (416700174)
    • (1) Weil-McLain GO - Collector Hood (450020190)
    Product Note
    This is a knockdown containing a boiler section assembly, jacket, and collector hood. Trim and a burner are required for installation.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Weil-McLain WGO - Section Assembly (386700657)
  • (1) Weil-McLain WGO - Jacket (416700174)
  • (1) Weil-McLain GO - Collector Hood (450020190)
A-WGO-9
specs product image PID-50009
General Information
Product Line
WGO
Medium Learn More
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type Learn More
Oil
Combustion Type Learn More
Conventional
Vent Type Learn More
Chimney Vent
DHW Production Learn More
No
Modulating/Staging Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
No
Assembly Type
Knockdown
Burner Model
Sold Separately
Performance
AFUE Learn More
82 %
Input Rate
2.55 GPH
DOE Heating Capacity Learn More
295000 BTU
Net I=B=R Capacity Learn More
257000 BTU
Efficiency Type
Thermal Efficiency
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
8 Inches
Supply Connection
1 1/2 Inches
Return Connection
1 1/2 Inches
Product Height
35 5/8 Inches
Product Width
20 1/4 Inches
Product Depth
32 1/2 Inches
Product Weight
1135 Pounds
Shipping Weight
1135 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
2122057
Warranty Information
Parts Warranty Learn More
1 Year
Heat Exchanger Warranty
10 Years
386700657
General Information
Product Line
WGO
Dimensions
Product Weight
1050 Pounds
Shipping Weight
1050 Pounds
Certifications
Country of Origin
United States
416700174
General Information
Product Line
WGO
Dimensions
Product Height
35 5/8 Inches
Product Width
20 1/4 Inches
Product Depth
32 1/2 Inches
Product Weight
50 Pounds
Certifications
Country of Origin
United States
450020190
General Information
Product Line
GO
Dimensions
Product Weight
10 Pounds
Certifications
Country of Origin
United States
