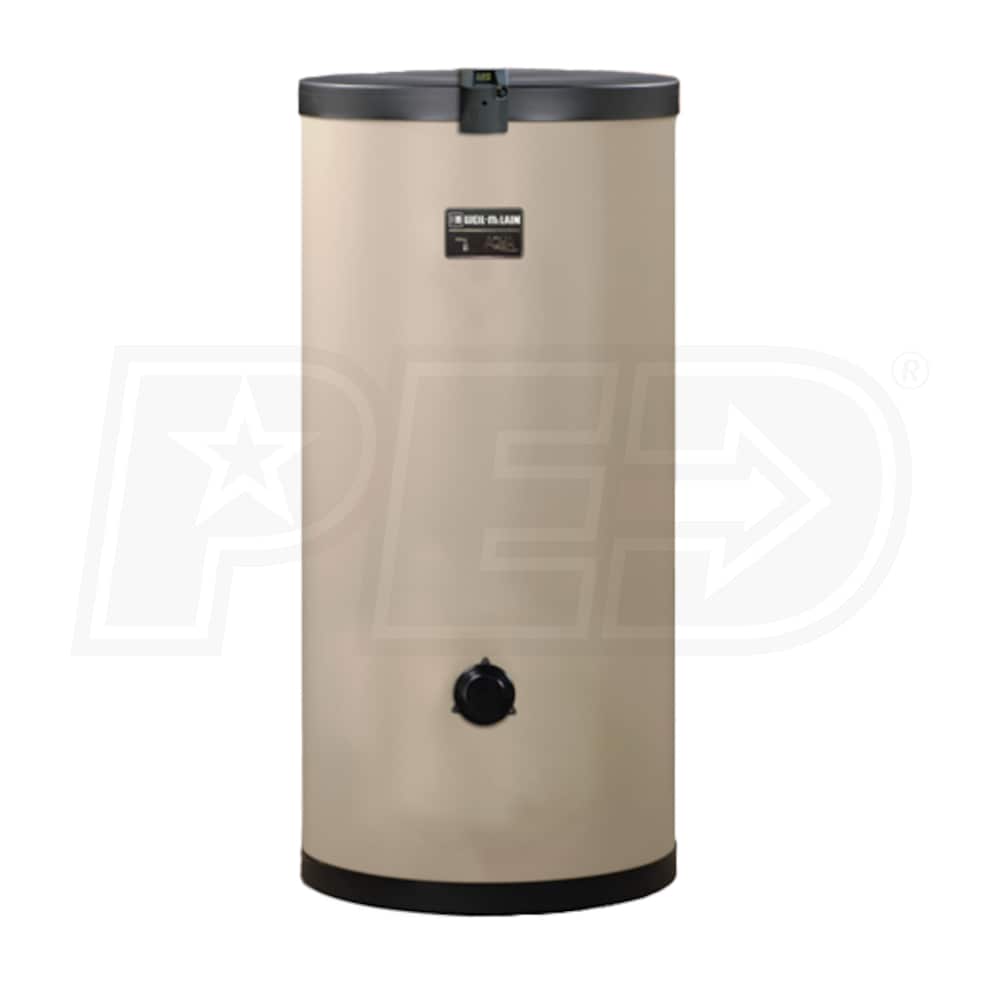

Weil-McLain Aqua Plus 105 - 110.9 Gal. - Indirect Water Heater

Model:

633600004

Write a Review
$2,489.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 3 In-Stock
Ships Thursday, Mar 4th
Shipping to60601
Shipping Details
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
$415 / Month
Suggested monthly payments with 6 month financing.
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Weil-McLain Aqua Plus 105 - 110.9 Gal. - Indirect Water Heater
Weil-McLain Aqua Plus 105 - 110.9 Gal. - Indirect Water Heater
Model: 633600004
$2,489.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    Over the last 130 years, Weil-McLain has built a reputation of designing some of the most reliable boilers in the marketplace. If you want to leverage the power and efficiency of your boiler for domestic hot water, then the Aqua Plus 105 is a great choice. The Aqua Plus is a domestic hot water option that fits many applications and is designed for ease of installation in any system. Design features such as consolidated connection points and adjustable leg heights provide simplicity and flexibility when it comes to setting up the Aqua Plus. The large diameter and tight winding of the heat exchanger coil keep the pressure drop and recovery times low. A poly-resin top and woven vinyl outer jacket protect the Aqua Plus from wear and tear and keep the water heater looking as good as it runs.
  • 316L Stainless Steel
  • High quality, durable components provide peace of mind. The Aqua Plus features stainless steel for both its heat exchanger and its storage tank. Stainless steel resists corrosion that could negatively affect the unit's performance.
  • Efficiency-Boosting Insulation
  • Discouraging heat loss is one of the best ways to improve efficiency. The Aqua Plus has two inches of dense foam insulation that brings heat loss as low as 0.4 degrees per hour.
  • Fully Passivated and Welded Design
  • The Aqua Plus comes fully passivated and welded to protect against corrosive water conditions, eliminating the need for a magnesium anode rod.
  • Digital Control
  • The Aqua Plus features a digital thermostat that ensures precise accuracy for optimal performance. The thermostat probe is already installed for quick and easy wiring. Temperature and pressure relief valves are also standard equipment on the Aqua Plus.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

633600004
General Information
Type
Indirect Water Heater
Product Line
Aqua Plus
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Indirect Fired
Storage Type
Tank
Coils Quantity
1
Connection Type
NPT
UPC
0672619207684
Performance
First Hour Delivery Learn More
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
448 Gallons
Continuous Recovery Rate
376 Gallons
Dimensions
Storage Volume
110.9 Gallons
Cold Water Inlet
1 Inch
Hot Water Outlet
1 Inch
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
59 3/4 Inches
Product Width
30 Inches
Product Depth
30 Inches
Product Weight
238 Pounds
Shipping Weight
238 Pounds
Certifications
AHRI Certified
Yes
AHRI Reference Number
10358740
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Vessel Warranty
12 Years
