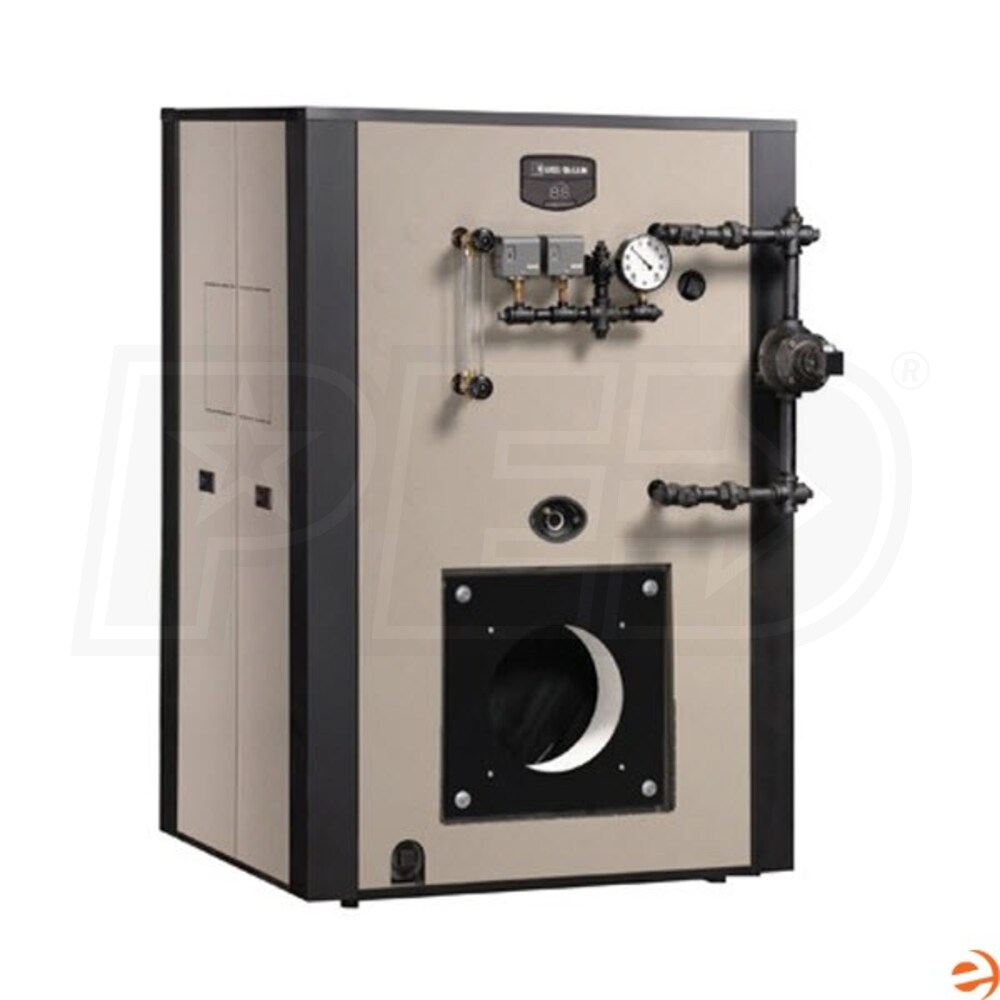

Weil-McLain 88 Series - 11.8 GPH - 1,701,000 BTU - Hot Water Boiler - NG/Oil - 85.6% EFF - Up to 2,000 ft altitude
Model:
164071214
+
Share This Product
Features
- Single or multiple boiler systems
- Easy-access jacket
- 2,000 ft. maximum altitude
- 85.6% thermal efficiency
- 1 year parts warranty
- 10 year heat exchanger warranty
Weil-McLain 88 Series - 11.8 GPH - 1,701,000 BTU - Hot Water Boiler - NG/Oil - 85.6% EFF - Up to 2,000 ft altitude
Designed and made in the USA, the Weil-McLain 88 Series Natural Gas/Oil Hot Water Boiler is a highly efficient 1,701,000 BTU/hour, gas and oil-fired boiler with cast iron sections and insulated steel jacket for your heating needs. With an 85.6% thermal efficiency, this boiler can be used in a variety of applications including apartment buildings, schools, commercial heating, and indirect-fired water heating. The H-88 boiler does not include an oil-burner or burner mounting plate. Both must be purchased separately. This unit is designed for applications from 0 to 2,000 feet in elevation and comes equipped with power/chimney venting, providing 1,700,000 BTU/hour in DOE heating capacity.
Weil-McLain 88 Series Natural Gas/Oil Hot Water Boiler Features:
Weil-McLain 88 Series Natural Gas/Oil Hot Water Boiler Warranty:
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
164071214
General Information
Product Line
H-88
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas/Oil
Combustion Type
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Conventional
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Available
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Assembly Type
Knockdown
Burner Model
Sold Separately
UPC
672619200166
Performance
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
1701000 BTU
Input Rate
11.8 GPH
DOE Heating Capacity
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
1700000 BTU
Net I=B=R Capacity
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
1478000 BTU
Efficiency Type
Thermal Efficiency
Efficiency
85.6 %
Dimensions
Flue Connection Size
12 Inches
Supply Connection
4 Inches
Return Connection
4 Inches
Product Height
65 Inches
Product Width
44 1/4 Inches
Product Depth
58 3/4 Inches
Product Weight
4345 Pounds
Certifications
Country of Origin
United States
Energy Star Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
10 Years
