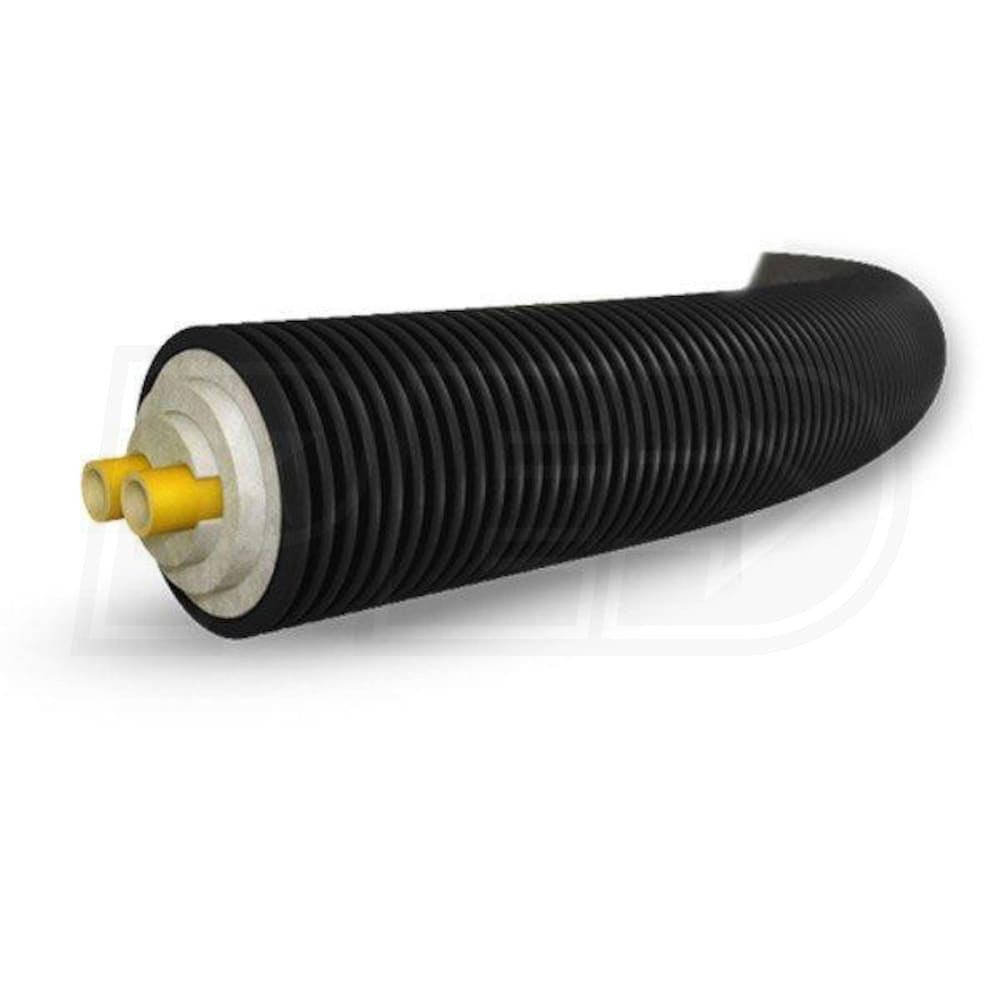

Watts Radiant R-Flex - 25.4mm (1") - Insulated PEX - Dual Pipe - 328'

Model:

RFD-1X125-328

Write A Review
$11,275.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
synchrony card logo
$141 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Watts Radiant R-Flex - 25.4mm (1
Watts Radiant R-Flex - 25.4mm (1") - Insulated PEX - Dual Pipe - 328'
Model: RFD-1X125-328
$11,275.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Watts Radiant insulated R-Flex PEX pipe is an efficient, versatile alternative to traditional copper or black iron carrier pipes. R-Flex is durable yet flexible, giving you all the advantages of insulated carrier pipes while simultaneously solving their biggest problem: lack of flexibility. R-Flex's ability to bend means your installer does not have to take those otherwise pesky small ground hills and valleys into account during installation, saving you a significant amount of money on installation costs. The durable casing protects the internal PEX pipe from the corrosive effects of both weather and time, and the layer-based polyethylene insulation foam minimizes the fluid temperature change inside the PEX.
  • EVOH Oxygen Barrier
  • The EVOH oxygen barrier used with Watts Radiant R-Flex tubing is virtually impervious to oxygen. This resilient, effective barrier will give you a long, maintenance free service life.
  • Dual Carrier Pipe Configuration
  • This R-Flex selection has a dual pipe configuration, allowing a single R-Flex line to carry both supply and return fluid lines.
  • PE Foam Insulation
  • Just like wearing more layers keeps you warmer in the winter, the multiple layers of insulation reduces temperature loss of the fluid contained within to an absolute minimum.
  • Dual Wall Outer Jacket
  • The dual wall outer barrier design of the R-Flex pipe keeps the internal insulation and PEX safe from the corrosive effects of weather and time. This minimizes the amount of repair work that will have to be performed on the piping after installation.
  • Silane Cross-Linking Construction
  • The internal PEX piping of R-Flex tubing is manufactured using a superior manufacturing technology called Silane Cross-Linking. This manufacturing process gives the PEX in the tubing higher burst strength and provides superior anti-oxidant protection.

Specifications

RFD-1X125-328
specs product image PID-25792
Overview
Product Category
Radiant Heating
UPC
840213103200
General Information
Product Line
R-Flex
Product Category
Radiant Heating
Oxygen Barrier
Yes
Number of Pipes
2
Insulation
Yes
Performance
Maximum Operating Temperature
200 F
Maximum Operating Pressure
160 PSI
Dimensions
Product Length
328 Feet
Shipping Weight
363 Pounds
Outer Diameter
4 11/12 Inches
Nominal Diameter
1 Inch
Certifications
Country of Origin
United States
ASTM Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
