Watts Radiant D3803012SS-KIT
Watts Radiant D3803012SS-KIT
Hover to zoom
1 Of 5

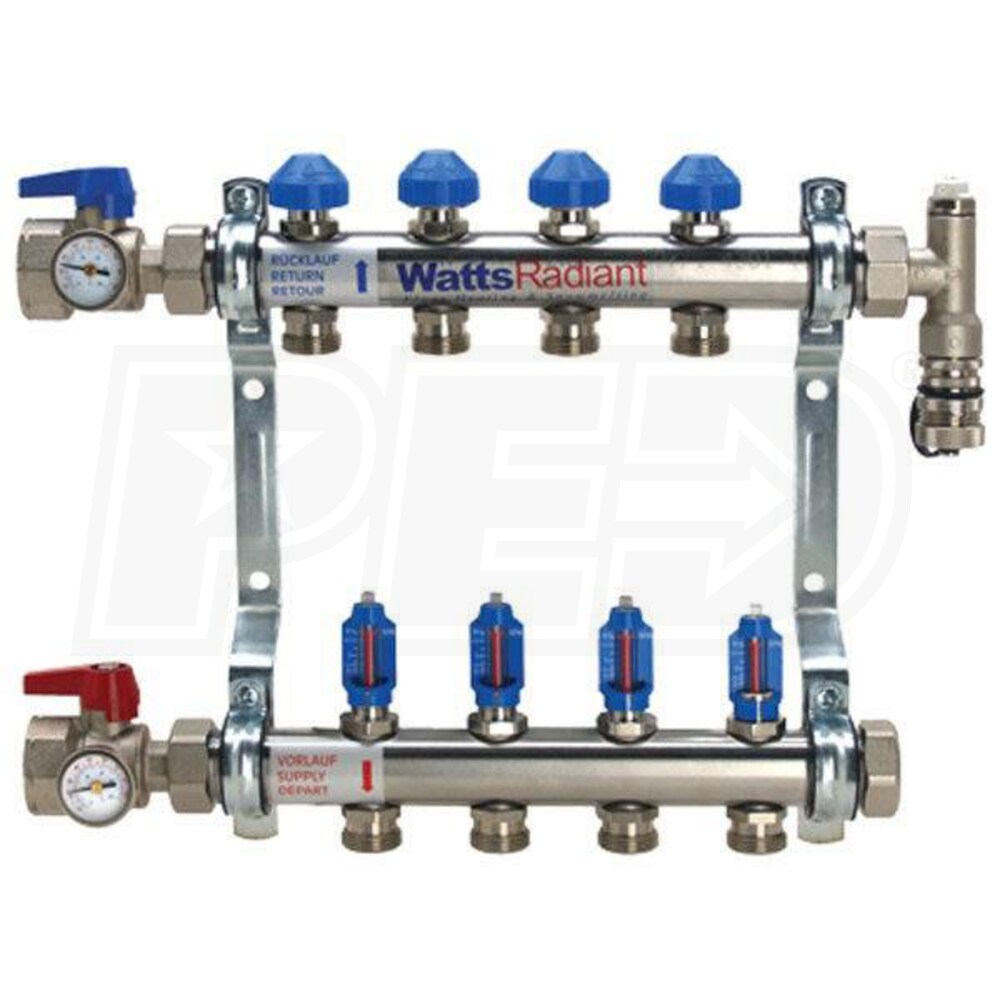

Watts Radiant M-Series - 12-Port - Stainless Steel Manifold - Complete Kit - 1" Trunk - 3/4" BSP Ports

Model:

D3803012SS-KIT

Write A Review
$1,216.95
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
synchrony card logo
$203 / Month
Suggested monthly payments with 6 month financing.
Watts Radiant M-Series - 12-Port - Stainless Steel Manifold - Complete Kit - 1
Watts Radiant M-Series - 12-Port - Stainless Steel Manifold - Complete Kit - 1" Trunk - 3/4" BSP Ports
Model: D3803012SS-KIT
$1,216.95
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Watts Radiant stainless steel manifolds combine the benefits of high-grade materials with fantastic engineering to deliver a complete, effective manifold package. High-grade, heavy-walled stainless steel gives the manifold unrivaled strength against both corrosion and bursting, along with a professional appearance. Flowmeter valves allow for easy circuit isolation for repairs or maintenance, while a full array of brass and nickel fittings allows Watts Radiant stainless steel manifolds to fill nearly any role imaginable.
  • Included Trunk Isolation Valve Kit
  • This trunk isolation ball valve kit includes two isolation ball valves, a vent-and-purge assembly, and a manifold end cap. It provides the ability to isolate the manifold from the rest of the circuit at will.
  • Top Grade Steel
  • Watts Radiant SST20 manifolds are built around a heavy-walled stainless steel trunk. The grade of steel used gives the manifold unparalleled corrosion resistance and the durability needed to last for years.
  • Included Flow Balancing Valves and Flow Meters
  • The SST20 manifold comes with flow meters and balancing valves standard. The flowmeters allow for a complete flow rate readout at a glance, while the balancing valves allow for quick and easy flow balancing across all circuits.
  • Fast and Easy to Install
  • The included, pre-mounted manifold brackets keep installation time to an absolute minimum. This means you'll save both time and money when compared to installation of other manifolds.
  • Full Line of Accessories
  • Watts Radiant SST20 stainless steel manifolds feature a full line of quality accessories and fittings to compliment the manifold itself. These fittings are made of solid brass plated by nickel to resist corrosion and match the appearance of the manifold.
  • Product Includes
  • (1) Watts Radiant SST20 Manifold
  • (1) Vent-and-Purge Assembly
  • (1) Manifold End Cap
  • (2) Trunk Isolation Ball Valves
California residents see
Warning: This product can expose you to chemicals including Acrylonitrile which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

D3803012SS-KIT
specs product image PID-25541
Overview
Product Category
Boiler Accessories
UPC
840213105839
General Information
Product Line
SST20
Product Category
Boiler Accessories
Number of Circuits
12
Material
Stainless Steel
Supply Connection Type
BSP
Return Connection Type
BSP
Performance
Maximum Operating Temperature
167 F
Maximum Operating Pressure
87 PSI
Dimensions
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
11 3/4 Inches
Product Width
27 5/8 Inches
Product Depth
3 3/8 Inches
Shipping Weight
22 Pounds
Certifications
Country of Origin
United States
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
