Watts Radiant 1201416U2HW
Watts Radiant 1201416U2HW
Hover to zoom
1 of 1

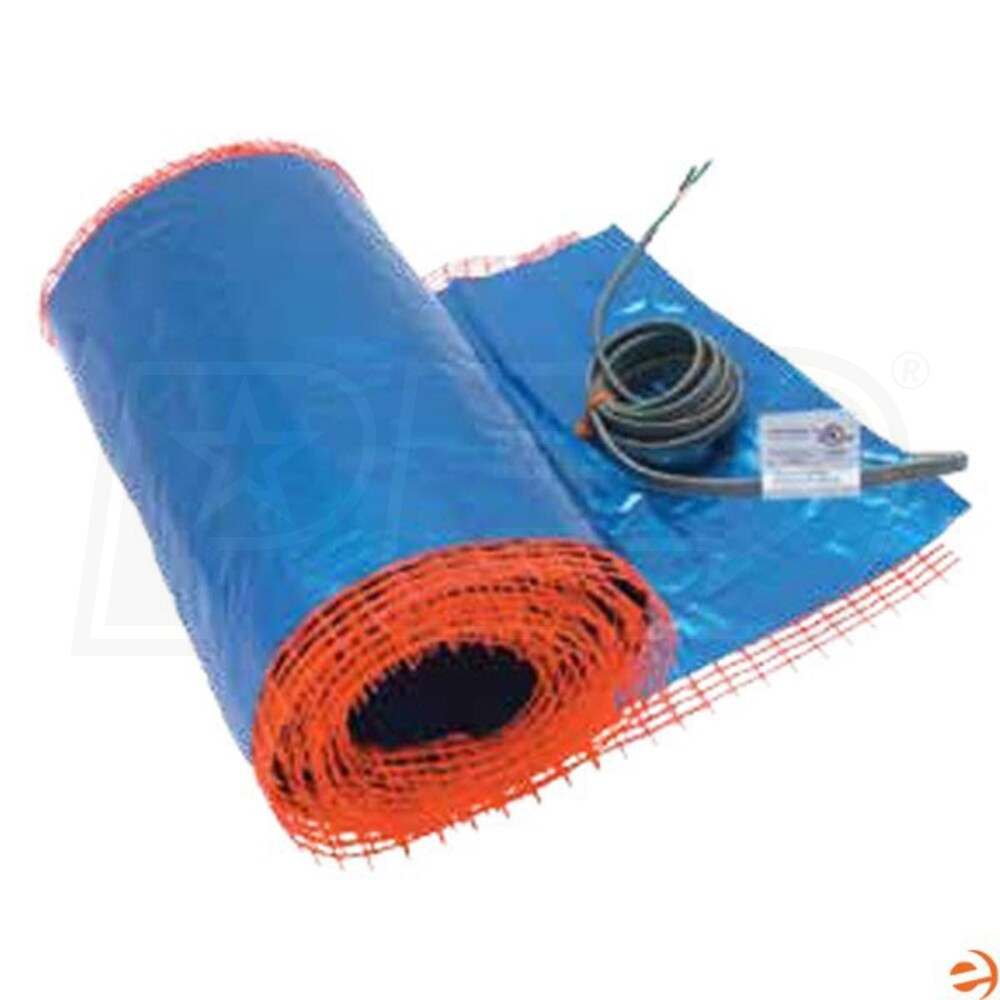

Watts Radiant UnderFloor - 18.67 Sq. Ft. - Underfloor Heating Mat - 120V - 16" x 14' - 1.5 Amps

Model:

1201416U2HW

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Watts Radiant UnderFloor - 18.67 Sq. Ft. - Underfloor Heating Mat - 120V - 16
Watts Radiant UnderFloor - 18.67 Sq. Ft. - Underfloor Heating Mat - 120V - 16" x 14' - 1.5 Amps
Model: 1201416U2HW
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals

Features

    This is a Watts Radiant UnderFloor mat, a variation of HeatWeave heating mats that are used for already existing flooring. The 1201416U2HW mat is designed to fit in between already existing joists and can be stapled in place quickly and easily. Designed to heat wood, vinyl, laminate, and tile floor coverings with ease, the UnderFloor mats use the same industry leading wire as other Watts Radiant electric radiant heating products. The wires are shielded and fully grounded, guaranteeing operational safety in a vast range of existing building types.

    Product Features

    Dual High-Grade Copper Heating Elements
    The heating wire's heating element is made from high quality oxygen-free copper, giving the wire uncompromising heat transfer efficiency while retaining flexibility. The entire wire contains a pair of twisted heating elements which keeps the electromagnetic field generated by the wire to a minimum.

    ETFE Wire Insulation with Grounding Jacket
    The heating wire is enveloped in a durable ETFE insulation. This unique insulation offers significant resilience against chemical and temperature corrosion. The two wires are then bound together by a stainless steel jacket for grounding and durability purposes.

    Single Power Lead
    Both wires connect to the power supply with a single power lead, simplifying labor and reducing installation time.

    Flexible Mesh Siding
    The sides of the mat are made of a flexible material arranged in a grid. This arrangement allows the mat to be stapled to floor joists using simple wood staples.

Specifications

1201416U2HW
specs product image PID-32747
General Information
Type
Mat
Product Line
UnderFloor
Application
Floor Heating
UPC
840213087265
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.5 Amps
Dimensions
Product Length
14 Feet
Area Covered
18.67 Square Feet
Product Width
16 Inches
Shipping Weight
5 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
25 Years

Reviews

(1)
Watts Radiant 1201416U2HW Reviews & Ratings
Verified Buyer
Verified Buyer
UnderFloor Heating Mat
By accribbs
IL
Review Posted 05/18/2015
I ordered 5 of these mats to heat a sunroom of ~10'x12' size with a standard osb subfloor and tile floor. The mats were delivered quickly and appear very robust in construction. Ample instructions on how to install are included and the installation is proceeding quickly with no issues.
