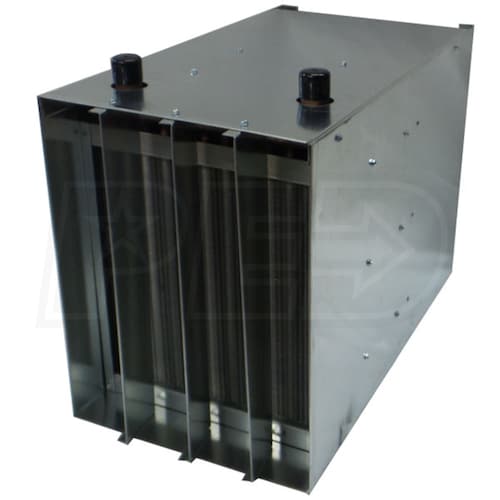

WSD - 40,000 BTU - Hydronic Air Handler - Fan Coil - Rotom Blower - 500 CFM
Model: WSD-AH12
+
Share This Product
-
Product Description
-
Reviews
-
2Product Q&A
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- WSD WSD-AH12 Features
- Quiet Operation
- The WSD-AH12 provides warm controllable air with minimal noise.
- Optional Adjustable Louvers
- Easily direct the warm air where ever you want it with the adjustable louvers.
- Filter and Filter Rack Included
- The filter and filter rack are included with the WSD-AH12 to save you the hassle of trying to purchase the correct filter.
- Product includes
- 12 x 12" Hot Water Coil"
- Filter
- Filter Rack
- Rotom Blower
The WSD-AH12 is the perfect solution for a cold garage or work space. It provides you with warm controllable air flow for optimal comfort. It is capable of producing 40,000 BTU of heating and works up to 500 CFM. The WSD-AH12 air handler allows you to create a true hybrid system utilizing a boiler as the central heat source.
Product Note
This product was formerly called WSD-SMAH
Specifications
General Information
Product Line
AH
Blower Motor
Single Speed
Coil Type
Hydronic
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Performance
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
40000 BTU
Maximum Air Flow
500 CFM
Dimensions
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
12 1/2 Inches
Product Width
15 3/4 Inches
Product Depth
22 1/4 Inches
Product Weight
33 Pounds
Shipping Weight
38 Pounds
Certifications
Country of Origin
United States
Features
Features
- WSD WSD-AH12 Features
- Quiet Operation
- The WSD-AH12 provides warm controllable air with minimal noise.
- Optional Adjustable Louvers
- Easily direct the warm air where ever you want it with the adjustable louvers.
- Filter and Filter Rack Included
- The filter and filter rack are included with the WSD-AH12 to save you the hassle of trying to purchase the correct filter.
- Product includes
- 12 x 12" Hot Water Coil"
- Filter
- Filter Rack
- Rotom Blower
The WSD-AH12 is the perfect solution for a cold garage or work space. It provides you with warm controllable air flow for optimal comfort. It is capable of producing 40,000 BTU of heating and works up to 500 CFM. The WSD-AH12 air handler allows you to create a true hybrid system utilizing a boiler as the central heat source.
Product Note
This product was formerly called WSD-SMAH
Specifications
General Information
Product Line
AH
Blower Motor
Single Speed
Coil Type
Hydronic
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Performance
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
40000 BTU
Maximum Air Flow
500 CFM
Dimensions
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
12 1/2 Inches
Product Width
15 3/4 Inches
Product Depth
22 1/4 Inches
Product Weight
33 Pounds
Shipping Weight
38 Pounds
Certifications
Country of Origin
United States
Product Specs
+−
Specifications
General Information
Product Line
AH
Blower Motor
Single Speed
Coil Type
Hydronic
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Performance
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
40000 BTU
Maximum Air Flow
500 CFM
Dimensions
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
12 1/2 Inches
Product Width
15 3/4 Inches
Product Depth
22 1/4 Inches
Product Weight
33 Pounds
Shipping Weight
38 Pounds
Certifications
Country of Origin
United States
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(2)
+−

Search Product Q&A's
Answered by Bob, the Heating Product Expert
+−
Can this be used for cooling as well? Would the BTU be the same?
Russell
from New York
June 03, 2016
Answer
This unit can be used for cooling with chilled water, but all of the specifications provided from the manufacturer are for heating only. So unfortunately there is no indication of what kind of performance this unit will provide in cooling applications. Also, it is worth mentioning that this air handler does not include a drip pan, so one will need to be provided if you are going to use it in cooling operation.
Was this answer helpful?
Yes

0
No

0
+−
What size filter does this air handler use?
Kevin
from Illinois
January 18, 2016
Answer
The WSD-AH12 uses a 16"x12.5"x1" filter. As this size may be difficult to locate, it is often easier to purchase a 16"x25"x1" filter and use one half at a time.
Was this answer helpful?
Yes

0
No

0
