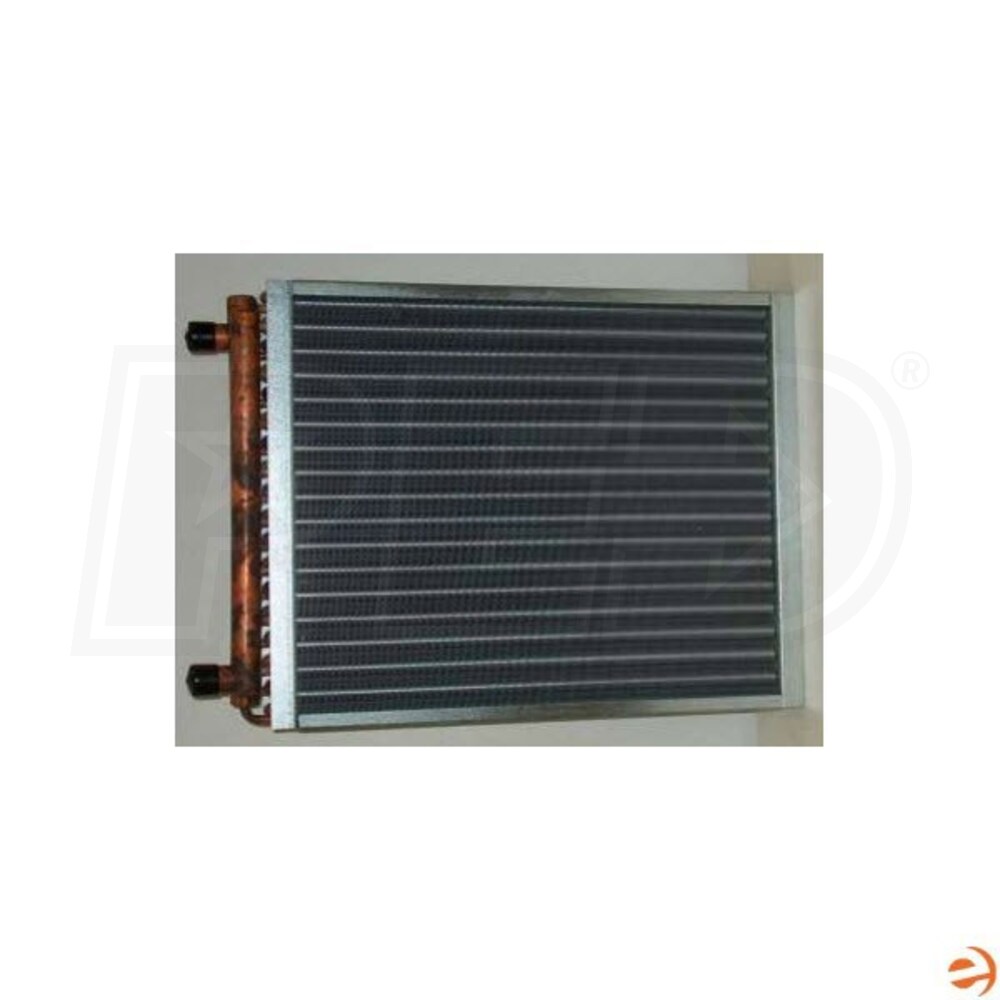

WSD Hot Water Coil, Water to Air Heat Exchanger - 47,000-120,000 BTU
Model: WSD 18X18
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$321.00
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to California or any destination outside of the United States

Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Hot Water Coil, Water to Air Heat Exchanger is a three row A-shaped coil with twelve fins per inch. It is designed to transfer heat energy between water and another medium (usually air) as quickly and efficiently as possible. Heating coils transmit energy from hot water to a stream of air; cooling coils extract energy from an air stream and add it to cold water. The coils themselves consist of a matrix of copper tubes through which the water flows. The tubes run back and forth between two end-plates in an arrangement that lets the air flow perpendicular to the tubes. The tubes pass through and are attached to a layered array of thin metal plates known as fins. The fins are also perpendicular to the tubes, which mean they lie parallel to the direction of air flow. The air flows between them. Energy either passes from the water via the tubes and fins to the air or from the air via the fins and tubes to the water.
  • WSD WSD 18X18 Features
  • 18" x 18" fin dimension
  • 20 gauge steel casing
  • Three row of coils
  • 1" copper sweat headers
Specifications
General Information
Refrigerant Type
Hydronic
Casing
Cased
Style
Slab Coil
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
120000 BTU
Minimum Input Capacity
47000 BTU
Dimensions
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
18 1/4 Inches
Product Width
20 Inches
Product Depth
3 1/2 Inches
Product Weight
13.05 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Features
Features
    Hot Water Coil, Water to Air Heat Exchanger is a three row A-shaped coil with twelve fins per inch. It is designed to transfer heat energy between water and another medium (usually air) as quickly and efficiently as possible. Heating coils transmit energy from hot water to a stream of air; cooling coils extract energy from an air stream and add it to cold water. The coils themselves consist of a matrix of copper tubes through which the water flows. The tubes run back and forth between two end-plates in an arrangement that lets the air flow perpendicular to the tubes. The tubes pass through and are attached to a layered array of thin metal plates known as fins. The fins are also perpendicular to the tubes, which mean they lie parallel to the direction of air flow. The air flows between them. Energy either passes from the water via the tubes and fins to the air or from the air via the fins and tubes to the water.
  • WSD WSD 18X18 Features
  • 18" x 18" fin dimension
  • 20 gauge steel casing
  • Three row of coils
  • 1" copper sweat headers
Specifications
General Information
Refrigerant Type
Hydronic
Casing
Cased
Style
Slab Coil
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
120000 BTU
Minimum Input Capacity
47000 BTU
Dimensions
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
18 1/4 Inches
Product Width
20 Inches
Product Depth
3 1/2 Inches
Product Weight
13.05 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Product Specs
+
Specifications
General Information
Refrigerant Type
Hydronic
Casing
Cased
Style
Slab Coil
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
120000 BTU
Minimum Input Capacity
47000 BTU
Dimensions
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
18 1/4 Inches
Product Width
20 Inches
Product Depth
3 1/2 Inches
Product Weight
13.05 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
