WSD Hot Water Coil, Water to Air Heat Exchanger - 21,000 - 54,500 BTU
WSD Hot Water Coil, Water to Air Heat Exchanger - 21,000 - 54,500 BTU
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- WSD WSD 12X12 Features
- 12" x 12" fin dimension
- 20 gauge steel casing
- Three row of coils
- 1" copper sweat headers

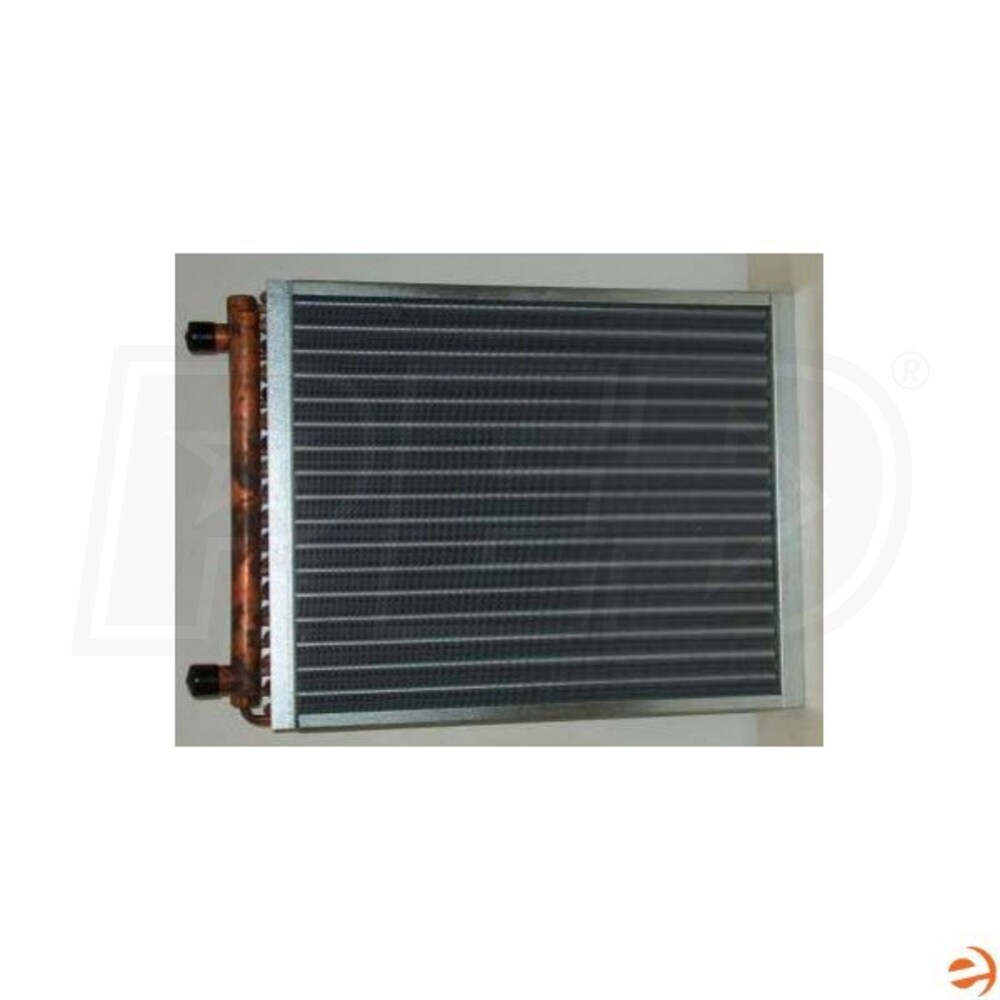

Hot Water Coil, Water to Air Heat Exchanger is a three row A-shaped coil with twelve fins per inch. It is designed to transfer heat energy between water and another medium (usually air) as quickly and efficiently as possible. Heating coils transmit energy from hot water to a stream of air; cooling coils extract energy from an air stream and add it to cold water. The coils themselves consist of a matrix of copper tubes through which the water flows. The tubes run back and forth between two end-plates in an arrangement that lets the air flow perpendicular to the tubes. The tubes pass through and are attached to a layered array of thin metal plates known as fins. The fins are also perpendicular to the tubes, which mean they lie parallel to the direction of air flow. The air flows between them. Energy either passes from the water via the tubes and fins to the air or from the air via the fins and tubes to the water.
Specifications
General Information
Refrigerant Type
Hydronic
Casing
Cased
Style
Slab Coil
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
54500 BTU
Minimum Input Capacity
21000 BTU
Dimensions
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
12 1/4 Inches
Product Width
14 Inches
Product Depth
3 1/2 Inches
Product Weight
5.96 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Warranty Information
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
