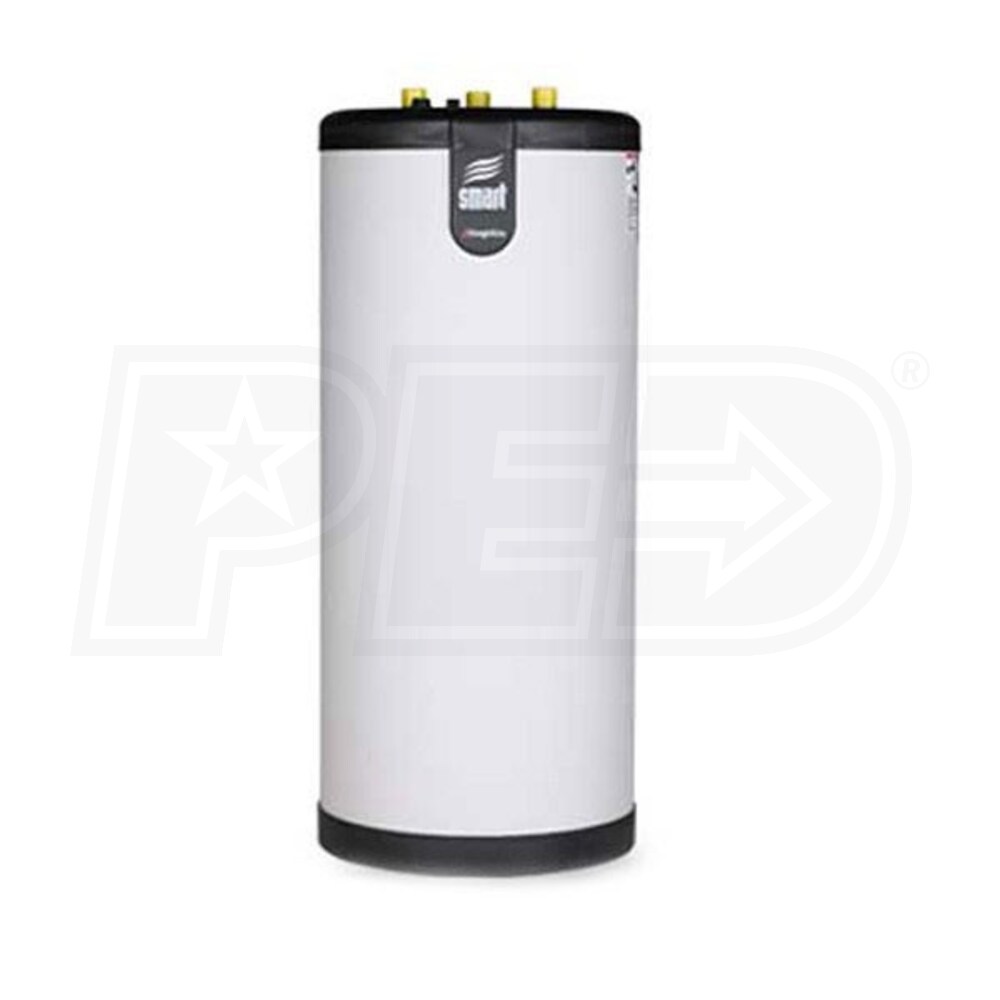

Triangle Tube Smart 80 - 70 Gallon - Residential Indirect Water Heater
Model:
SMART 80
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
3
$29.00
In-Stock
Model: 104589-01
$284.00
Factory-Direct
$43.00
In-Stock
Features
- Tank-in-Tank Efficiency
- Using boiler water as a heat source for the Smart 80 means that whenever your boiler fires it is providing heat not just for your home, but for your water as well.
- Tank-in-Tank Safety
- High temperatures prevent the growth of bacteria. High quality stainless steel and Triangle Tube's tank-in-tank design allow your domestic hot water to be stored at higher temperatures than traditional water heaters.
- Incredible Recovery Rate
- The large surface area of the inner tank means that water is heated very quickly. Smart Series Indirect Fired water heaters boast a recovery rate up to 300% greater than that of conventional water heaters.
- Self-Cleaning
- The inner tank of the Smart 80 is contoured to promote water movement. This design prevents lime build-up in your water heater and keeps it running efficiently.
Triangle Tube is best known for two things: feats of hydronic innovation and incredibly efficient products. These qualities are intertwined in Triangle Tube's Smart Series Indirect Fired water heaters. The Smart water heaters feature an exclusive "tank-in-tank" design that Triangle Tube has been refining for three decades. To heat domestic water, the outer tank of the Smart 80 fills with boiler water and the surface of the inner tank becomes a heat exchanger. Two inches of polyurethane insulation ensures that your domestic hot water stays hot, and stainless steel construction of the inner tank provides exceptional durability. When it comes to making a decision on your next water heater, the Smart lives up its name.
Specifications
SMART 80
General Information
Type
Indirect Water Heater
Product Line
Smart
Product Category
Water Heater - Indirect-Fired
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Indirect Fired
Storage Type
Tank
Coils Quantity
1
Application
Residential
Connection Type
NPT
Capacity
70 Gallons
Performance
First Hour Delivery
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
690 Gallons
Continuous Recovery Rate
630 Gallons
Dimensions
Storage Volume
70 Gallons
Cold Water Inlet
1 1/2 Inches
Hot Water Outlet
1 1/2 Inches
Supply Connection
1 1/2 Inches
Return Connection
1 1/2 Inches
Product Height
61 Inches
Product Width
26 Inches
Product Depth
26 Inches
Product Weight
271 Pounds
Shipping Weight
280 Pounds
Certifications
ETL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Vessel Warranty
10 Years
Reviews
(10)
Triangle Tube SMART 80 Reviews & Ratings
Customer Photos and Videos
Customer Rating
4.80
(10 Ratings)
5
(9)
(9)4(0)
(0)3(1)
(1)2(0)
(0)1(0)
(0)
Better price than any local distributor!!
By David
Ohio
Purchased 10/23/2019 |
Review Posted 11/14/2019
About $1,000 less than my local supply house quoted me. Faster delivery than originally stated and the tank works great.
David Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Works awesome
By Mike A
Ridgefield, Connecticut
Purchased 10/29/2018 |
Review Posted 11/20/2018
We replaced a 15 yr old Triangle Tube 60 gallon which had a pin hole with this new one and its working as expected. I think its a little better
Mike A Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Very happy
By Alex P
Salt Lake City, Utah
Purchased 09/06/2018 |
Review Posted 10/19/2018
Plumbers wanted to mark this product up significantly. I saved a ton of money ordering this directly to my house and just paying to have it installed.
Alex P Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Wow, great product and supplier.
By Brent D.
Napoleon, Ohio
Purchased 08/16/2018 |
Review Posted 09/07/2018
Works very well, nice design and engineering.
Brent D. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
SMART 30
By Greg B.
Phelps, New York
Purchased 09/25/2017 |
Review Posted 10/23/2017
My original water tank was also a Triangle Tube SMART product. I was hoping the fittings would line up to make the install easier but they weren't. That tank lasted over 20 years. I'm hoping this one lasts that long too. I looked at tanks from other manufacturers but this one seemed to be the best value. The free delivery with a liftgate truck was the icing on the cake. I'm happy with my purchase.
Greg B. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
5/5
Easy Replacement... Fittings were Standard... Very Pleased!
By Lisa K.
Rodman, New York
Purchased 08/26/2017 |
Review Posted 09/21/2017
Great product. Quick device and shipping. Easy to use website.
Lisa K. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Reliably Serving Our Household for Last 6 Months
By Stephan H.
Bountiful, Utah
Purchased 09/15/2016 |
Review Posted 03/09/2017
I ordered Triangle Tube's SMART 50 indirect water heater six months ago when my previous tank was near failure and leaking profusely after 23.5 years of service. It was delivered promptly to my home in perfect condition. My plumber installed it that week and it has reliably provided hot water ever since.
I have a boiler system that heats my home via 3 separate circuits, and another circuit dedicated to this tank. My plumber recommended this brand as a result of his experience, and I have been very satisfied so far. This well-insulated tank has reduced my utility bills as well.
I have a boiler system that heats my home via 3 separate circuits, and another circuit dedicated to this tank. My plumber recommended this brand as a result of his experience, and I have been very satisfied so far. This well-insulated tank has reduced my utility bills as well.
Stephan H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Smart 80 makes all the hot water we can use!
By Richard B.
McCall, Idaho
Purchased 11/11/2016 |
Review Posted 12/09/2016
We live in a ski town and though usually only two retirees in the home, we sometimes have 12-15 skiers and snow-players as guests. We need lots of hot water. Our plumber was concerned about the touted online performance rating of the Smart 80 (gallons first hour, etc.).
Not to worry! With proper attention to the pump capacity and boiler supply and return pipe sizing, we are delivering 100,000 BTH/H with our Triangle Tube Prestige 175, and we have all the hot water a 3-bath home can use with this setup. Love the construction, look/feel, and long warranty. Great unit!
Not to worry! With proper attention to the pump capacity and boiler supply and return pipe sizing, we are delivering 100,000 BTH/H with our Triangle Tube Prestige 175, and we have all the hot water a 3-bath home can use with this setup. Love the construction, look/feel, and long warranty. Great unit!
Richard B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Durable, Exceeded Expectations, Fast, High Quality
Cons:
A bit pricey
Money saver
By James Y.
Gardners, Pennsylvania
Purchased 06/22/2016 |
Review Posted 07/17/2016
Replaced a 22 year old Triangle tube heater with the Smart 40. My furnace hardly ever runs to keep my hot water hot unless I am using it. Really holds the heat. I have had it installed about a month now and I think it was a great purchase. A little expensive, but if it last as long as my last one, I'll be happy.
James Y. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
By Guest
IL
Review Posted 04/06/2012
It works good except mine started leaking all over the floor inside of 2 yrs and now my contractor says he hasn't heard from the dealer for the warranty. No drain in on the unit so I can't just move it out of my basement.
Was this review helpful?
Rating Breakdown
3/5
3/5
3/5
3/5
