Features
- HeatMatch™ Software
- This pre-programmed software calculates zone demand, measures supply water temperature, and automatically adjusts firing rates.
- Reduces Short Cycling
- By monitoring the system at all times, the Sage Panel allows your boiler to burn more efficiently, keeping costs down, and extending the life of the boiler.
- Plug & Play
- The Sage Panel connects easily using the included RJ45 (Cat 5) cable; and with its pre-programmed settings, is ready to operate right out of the box.
- Monitoring & Adjustments
- Settings and adjustments can be accessed through the boiler's touch screen display, while also granting you the ability to monitor heat output and cycle history.
- Whole Home Freeze Protection
- When outside temperatures reach below freezing, the Sage Zone Valve Control automatically circulates warm water throughout the home to prevent damage from freezing pipes.
- Product Compatible With
- Burnham Alpine Boilers with Sage 2.2 (or newer) Control
- Burnham Aspen Boilers with Sage 2.2 (or newer) Control
- Burnham K2 Boilers with Sage 2.2 (or newer) Control
- Various High & Low Radiation and Indirect Water Heaters
- Advanced Switching Relay for Non-Modulating Boilers
The Burnham Sage Zone Valve Control increases system efficiency and cuts down installation time when paired with Burnham boilers with multiple zone valves. The control panel makes a condensing boiler actually condense by calculating heating demands from different individual zones and adjust its output accordingly. Connecting directly to the boiler with an included RJ45 cable, the control panel is ready to go out of the box with factory settings. This easy to install panel is controlled through the boiler's built in touch screen, and can increase the life of a boiler system by cutting down on short cycling and increasing overall efficiency.
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
104589-01
Overview
Product Category
Thermostats and Controls
General Information
Product Category
Thermostats and Controls
Maximum Number of Zones
4
Electrical Data
Voltage
120 Volts
Phase
60
Frequency
1 Hz
Current Draw
20 Amps
Dimensions
Product Height
8 Inches
Product Width
12 1/4 Inches
Product Depth
3 Inches
Shipping Weight
10 Pounds
Reviews
Burnham 104589-01 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
Be the First to Ask A Question
Answered by Ken, the eComfort Product Expert
How-To Articles
How to Pick the Perfect Thermostat
Today's thermostats are more than just the “brain” of your heating ...
An Intro to Tekmar Controls
Getting the most out your hydronic heating system can be difficult. Luckily, Te...
Mini Split HVAC Thermostats and Controls
If you're buying a ductless mini split system, then you appreciate the quiet, e...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

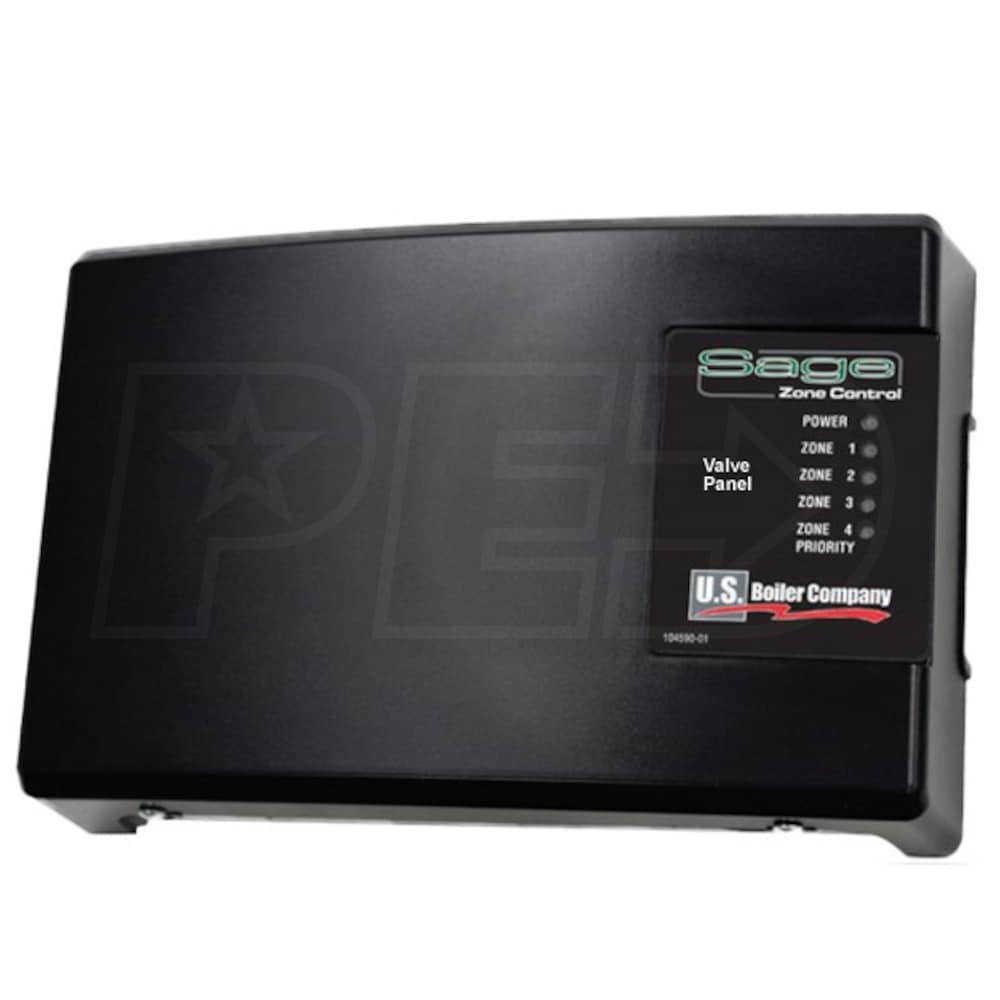

Burnham Sage Zone Control - Valve Panel
