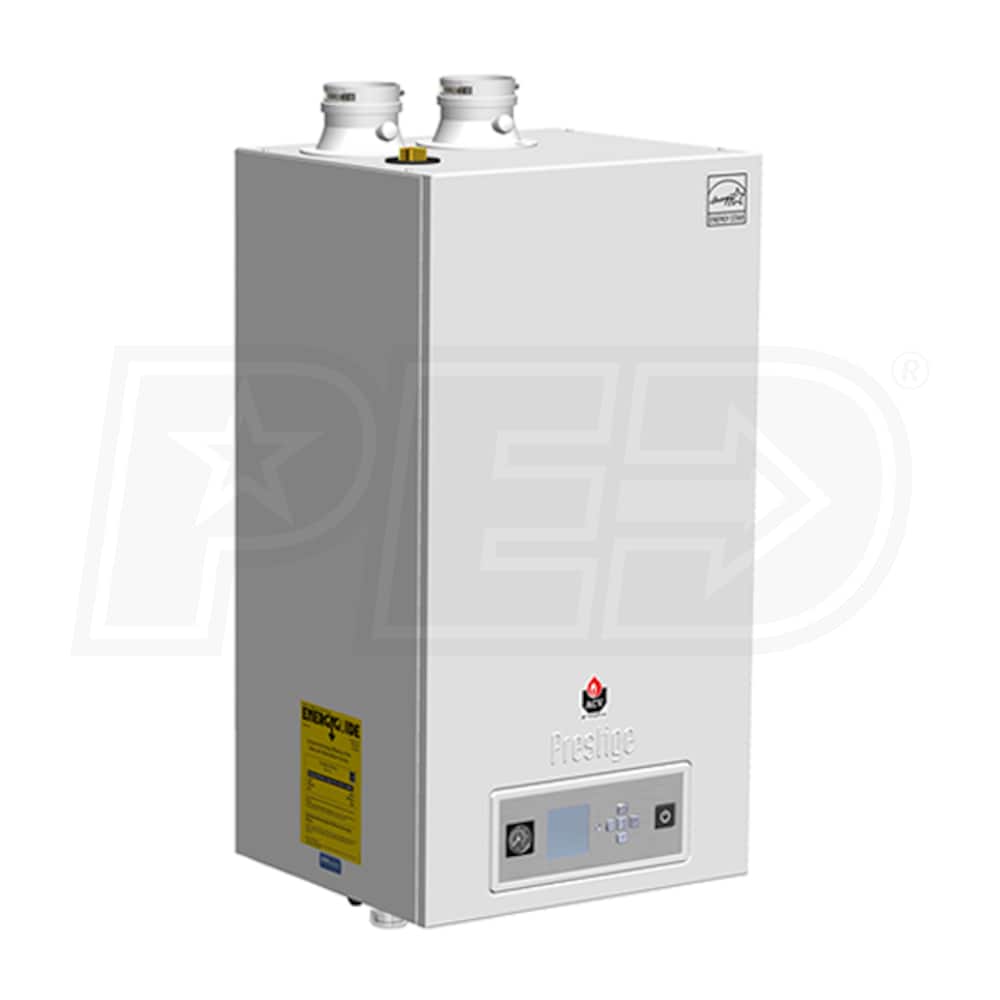

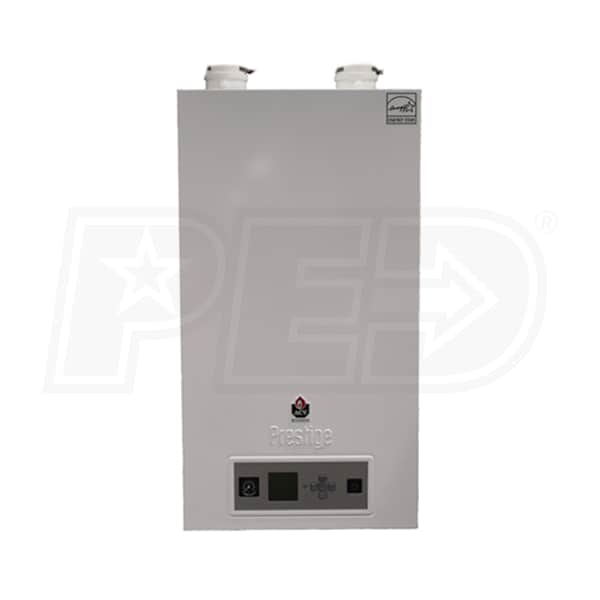

Triangle Tube PA250 - 222K BTU - 95% AFUE - Hot Water Gas Boiler - Direct Vent

Model:

PA250

Write A Review
$6,557.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Wednesday, Mar 20th
Shipping to60601
synchrony card logo
$82 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Triangle Tube PA250 - 222K BTU - 95% AFUE - Hot Water Gas Boiler - Direct Vent
Triangle Tube PA250 - 222K BTU - 95% AFUE - Hot Water Gas Boiler - Direct Vent
Model: PA250
$6,557.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Triangle Tube is best known for two things: feats of hydronic innovation and incredibly efficient products. The Prestige Solo line of hot water boilers marries high efficiency condensing technology with Triangle Tube's cutting edge ACVMax controls to bring you a boiler that is 95% efficient and simple to operate. The condensing technology behind Prestige Solo boilers will capture and reuse gaseous heat that escapes traditional boilers. Stainless steel construction and an internal condensate trap will protect the PA250 from corrosion. Prestige Solos also include a modulating burner that scales heat production based on your needs and reduces unnecessary energy consumption. The ACVMax control allows you to have two different temperature zones and six Prestige boilers in your system. The Prestige Solo is an overachiever in every regard, and it makes an excellent addition to any system.
  • 60 Second Setup
  • ACVMax controls feature six preprogrammed applications that allow you to set the PA250 up in just one minute. These applications are: finned tube baseboard, cast-iron baseboard, radiators, high mass radiant, low mass radiant, and fan coil.

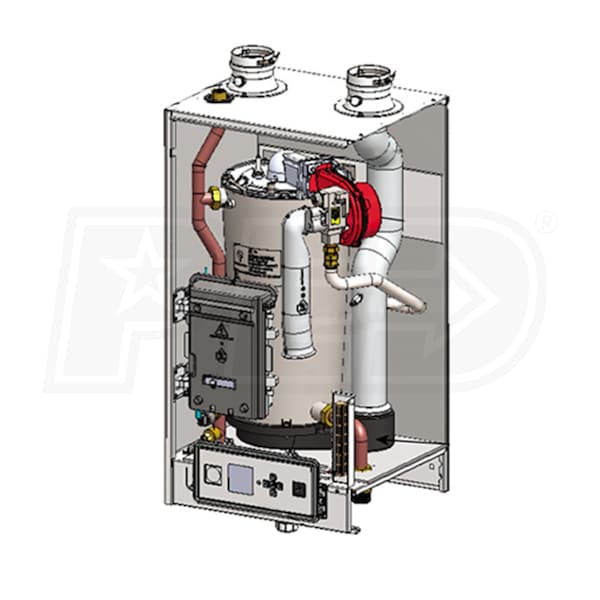

  • Fire Tube Heat Exchanger
  • The Prestige heat exchangers are made with 439 stainless steel and titanium for superior corrosion resistance. Its self-cleaning design washes away combustion debris to keep your PA250 running efficiently.
  • Outdoor Reset Control
  • All Prestige Solo boilers include an outdoor temperature sensor. When connected to the ACVMax control, this sensor allows you to use outdoor reset control to provide the ideal indoor temperature.

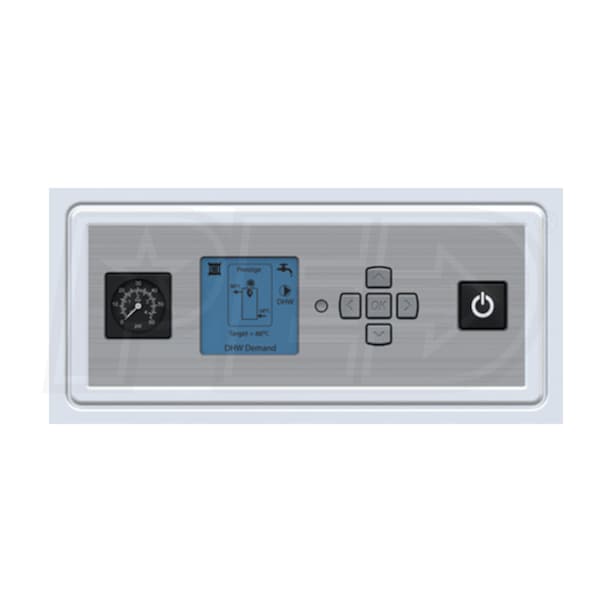

  • ACVMax Control
  • The ACVMax Control includes multiple zone control, multiple circulator control, intelligent troubleshooting, and an integrated cascade system to link up to 6 boilers.
  • Product Includes
  • (1) Triangle Tube PA250 Hot Water Boiler
  • (1) Outdoor Reset Sensor
  • (1) ACVMax Control Module
  • (1) Wall Mounting Bracket
  • (1) NG to LP Gas Conversion Kit

Specifications

PA250
specs product image PID-79462
Overview
Product Category
Boiler
General Information
Product Line
Prestige Solo
Product Category
Boiler
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type Learn More
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Condensing
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production Learn More
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Connection Type
NPT
Mount Type
Wall
Minimum Altitude
0 Feet
Maximum Altitude
10000 Feet
Assembly Type
Packaged
Includes Pump
Yes
Gas Conversion Kit
Included
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
95 %
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
240000 BTU
Minimum Input Capacity
43600 BTU
DOE Heating Capacity Learn More
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
222000 BTU
Net I=B=R Capacity Learn More
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
193000 BTU
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Turndown Ratio
5.5:1
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
3 Inches
Gas Connection Size
3/4 Inch
Supply Connection
1 1/4 Inches
Return Connection
1 1/4 Inches
Product Height
39 9/16 Inches
Product Width
19 3/4 Inches
Product Depth
17 5/16 Inches
Product Weight
141 Pounds
Shipping Weight
141 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
2101288
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
