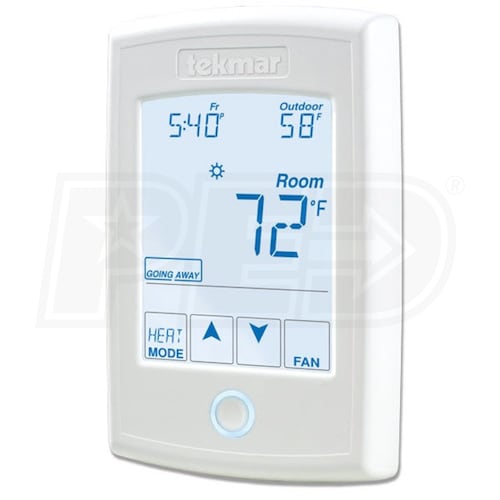

Tekmar tekmarNet - 553 - Thermostat - 7-Day Programmable - tN2/tN4 Compatible - Two Stage Heat, One Stage Cool, One Fan - Touchscreen

Tekmar tekmarNet - 553 - Thermostat - 7-Day Programmable - tN2/tN4 Compatible - Two Stage Heat, One Stage Cool, One Fan - Touchscreen
Our Price
Compare Prices
Shipping Info
Model: 553
$343.00
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -

Factory-Direct
Ships in 4-7 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    For nearly three decades, tekmar has been providing zoning and control solutions for a variety of heating and cooling applications. Products made by tekmar can improve the efficiency and comfort delivered by almost any system. The tekmarNet 553 Thermostat has controls for humidity and a one stage fan in addition to being able to operate a system with two stages of heating and one stage of cooling. You may use a single-stage heat pump for heating and cooling. This touchscreen thermostat is a simple, and efficient, way to manage the temperature of a single zone while improving the connectivity of your home.
  • Synchronize Your Zones, Save Energy
  • When connected to a tekmarNet system it can communicate with other tekmarNet thermostats in your system. Communication means that your thermostats can synchronize their cycles, when possible, instead of operating independently.
  • In situations where your 553 is not connected to a tekmarNet system, or it is not part of a hydronic zone, then it may use auto cycling instead of synchronization. Auto cycling calculates and executes the ideal number of cycles per hour.
  • You can also use this tekmarNet thermostat to instruct connected thermostats not to run heating operations and cooling operations simultaneously. These functions minimize short cycling, save energy, and reduce wear and tear on your system.
  • Program Your Ideal Schedule
  • This thermostat supports a seven day or 24 hour schedule with two or four events per day. If you connect the 553 to a tekmarNet system your schedule can be maintained independently, or it can be applied to other tekmarNet thermostats as a master schedule.
  • The 553 can also follow master schedules as set by other devices. Whether you want to maintain an independent zone or coordinate devices, the tekmar 553 Thermostat has you covered.
  • Temperature Monitoring
  • The tekmar 553 has built-in humidity and temperature sensors for evaluating and managing the relative humidity level heating and air temperature of your room. The 553 Thermostat has auxiliary inputs for two additional sensors.
  • It supports a number of different auxiliary sensors, allowing you to customize the information that your system receives in a way that optimizes performance. You can control air and floor temperatures if you connect a slab sensor to your thermostat.
  • If your tekmar 553 Thermostat is connected to an outdoor reset sensor, directly or through tekmarNet, then it has warm weather shut down to prevent overuse of energy when outdoor temperatures are high.
  • Product Note
    A tekmarNet 4 Wiring Center or Zone Manager is required for power and communication. This thermostat may be used in a stand-alone capacity.
Specifications
General Information
Stages
Multi-Stage
Switch Contact Type
Digital
System Type
Cool/Heat
Voltage Type
Low-Voltage
Programmable
Programmable
Power Source
Hard Wired
Interface
Touchscreen
Dimensions
Product Height
5 Inches
Product Width
3 1/4 Inches
Product Depth
15/16 Inch
Product Weight
0.8 Pounds
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
    For nearly three decades, tekmar has been providing zoning and control solutions for a variety of heating and cooling applications. Products made by tekmar can improve the efficiency and comfort delivered by almost any system. The tekmarNet 553 Thermostat has controls for humidity and a one stage fan in addition to being able to operate a system with two stages of heating and one stage of cooling. You may use a single-stage heat pump for heating and cooling. This touchscreen thermostat is a simple, and efficient, way to manage the temperature of a single zone while improving the connectivity of your home.
  • Synchronize Your Zones, Save Energy
  • When connected to a tekmarNet system it can communicate with other tekmarNet thermostats in your system. Communication means that your thermostats can synchronize their cycles, when possible, instead of operating independently.
  • In situations where your 553 is not connected to a tekmarNet system, or it is not part of a hydronic zone, then it may use auto cycling instead of synchronization. Auto cycling calculates and executes the ideal number of cycles per hour.
  • You can also use this tekmarNet thermostat to instruct connected thermostats not to run heating operations and cooling operations simultaneously. These functions minimize short cycling, save energy, and reduce wear and tear on your system.
  • Program Your Ideal Schedule
  • This thermostat supports a seven day or 24 hour schedule with two or four events per day. If you connect the 553 to a tekmarNet system your schedule can be maintained independently, or it can be applied to other tekmarNet thermostats as a master schedule.
  • The 553 can also follow master schedules as set by other devices. Whether you want to maintain an independent zone or coordinate devices, the tekmar 553 Thermostat has you covered.
  • Temperature Monitoring
  • The tekmar 553 has built-in humidity and temperature sensors for evaluating and managing the relative humidity level heating and air temperature of your room. The 553 Thermostat has auxiliary inputs for two additional sensors.
  • It supports a number of different auxiliary sensors, allowing you to customize the information that your system receives in a way that optimizes performance. You can control air and floor temperatures if you connect a slab sensor to your thermostat.
  • If your tekmar 553 Thermostat is connected to an outdoor reset sensor, directly or through tekmarNet, then it has warm weather shut down to prevent overuse of energy when outdoor temperatures are high.
  • Product Note
    A tekmarNet 4 Wiring Center or Zone Manager is required for power and communication. This thermostat may be used in a stand-alone capacity.
Specifications
General Information
Stages
Multi-Stage
Switch Contact Type
Digital
System Type
Cool/Heat
Voltage Type
Low-Voltage
Programmable
Programmable
Power Source
Hard Wired
Interface
Touchscreen
Dimensions
Product Height
5 Inches
Product Width
3 1/4 Inches
Product Depth
15/16 Inch
Product Weight
0.8 Pounds
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+
Specifications
General Information
Stages
Multi-Stage
Switch Contact Type
Digital
System Type
Cool/Heat
Voltage Type
Low-Voltage
Programmable
Programmable
Power Source
Hard Wired
Interface
Touchscreen
Dimensions
Product Height
5 Inches
Product Width
3 1/4 Inches
Product Depth
15/16 Inch
Product Weight
0.8 Pounds
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
