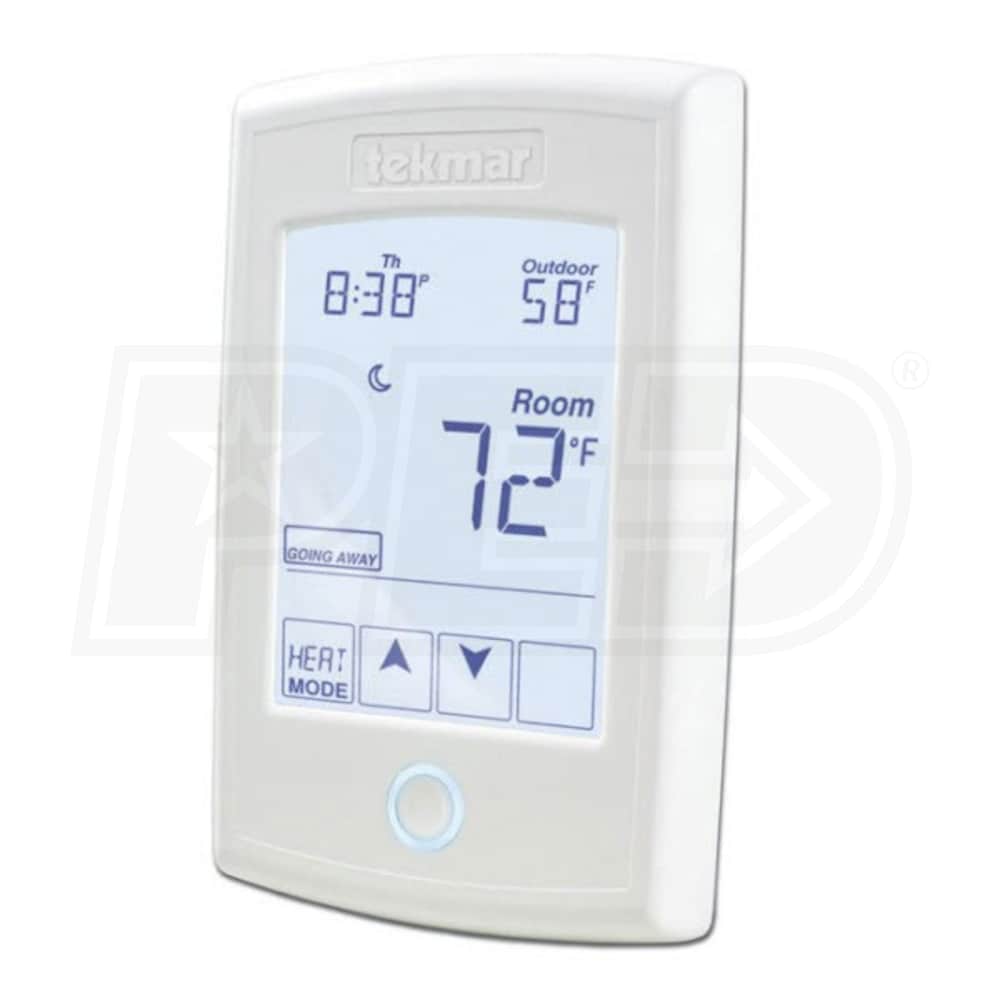

Tekmar tekmarNet - 552 - Thermostat - 7-Day Programmable - tN2/tN4 Compatible - One Stage Heat - Touchscreen
Model: 552
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(2)
Write a Review
$210.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    For nearly three decades, tekmar has been providing zoning and control solutions for a variety of heating and cooling applications. Products made by tekmar can improve the efficiency and comfort delivered by almost any system. The tekmarNet 552 Thermostat controls one stage of heating in your hydronic system. This touchscreen thermostat is a simple, and efficient, way to manage the heating of a single zone while improving the connectivity of your home.
  • Synchronize Your Zones, Save Energy
  • The 552 Thermostat is tekmarNet compatible. When connected to a tekmarNet system it can communicate with other tekmarNet thermostats in your system.
  • Communication means that your thermostats can synchronize their cycles instead of operating independently. In situations where your 552 is not connected to a tekmarNet system, then it may use auto cycling instead of synchronization.
  • Auto cycling calculates and executes the ideal number of cycles per hour. You can also use this tekmarNet thermostat to instruct connected thermostats not to run heating and cooling operations simultaneously, minimizing short cycling and saving energy.
  • Program Your Ideal Schedule
  • This thermostat supports a seven day or 24 hour schedule with two or four events per day. If you connect the 552 to a tekmarNet system your schedule can be maintained independently, or it can be applied to other tekmarNet thermostats as a master schedule.
  • The 552 can also follow master schedules as set by other devices. Whether you want to maintain an independent zone or coordinate devices, the tekmar 552 Thermostat has you covered.
  • Temperature Monitoring
  • The tekmar 552 has built-in humidity and temperature sensors for evaluating and managing the relative humidity level heating and air temperature of your room. The 552 Thermostat has auxiliary inputs for two additional sensors.
  • It supports a number of different auxiliary sensors, allowing you to customize the information that your system receives in a way that optimizes performance. You can control air and floor temperatures if you connect a slab sensor to your thermostat.
  • If your tekmar 552 Thermostat is connected to an outdoor reset sensor, directly or through tekmarNet, then it has warm weather shut down to prevent overuse of energy when outdoor temperatures are high.
  • Product Note
    A tekmarNet 4 Wiring Center or Zone Manager is required for power and communication. This thermostat may be used in a stand-alone capacity.
Specifications
General Information
Stages
Single-Stage
Switch Contact Type
Digital
System Type
Heating
Voltage Type
Low-Voltage
Programmable
Yes
Power Source
Hard Wired
Interface
Touchscreen
Dimensions
Product Height
5 Inches
Product Width
3 1/4 Inches
Product Depth
15/16 Inch
Product Weight
0.8 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
    For nearly three decades, tekmar has been providing zoning and control solutions for a variety of heating and cooling applications. Products made by tekmar can improve the efficiency and comfort delivered by almost any system. The tekmarNet 552 Thermostat controls one stage of heating in your hydronic system. This touchscreen thermostat is a simple, and efficient, way to manage the heating of a single zone while improving the connectivity of your home.
  • Synchronize Your Zones, Save Energy
  • The 552 Thermostat is tekmarNet compatible. When connected to a tekmarNet system it can communicate with other tekmarNet thermostats in your system.
  • Communication means that your thermostats can synchronize their cycles instead of operating independently. In situations where your 552 is not connected to a tekmarNet system, then it may use auto cycling instead of synchronization.
  • Auto cycling calculates and executes the ideal number of cycles per hour. You can also use this tekmarNet thermostat to instruct connected thermostats not to run heating and cooling operations simultaneously, minimizing short cycling and saving energy.
  • Program Your Ideal Schedule
  • This thermostat supports a seven day or 24 hour schedule with two or four events per day. If you connect the 552 to a tekmarNet system your schedule can be maintained independently, or it can be applied to other tekmarNet thermostats as a master schedule.
  • The 552 can also follow master schedules as set by other devices. Whether you want to maintain an independent zone or coordinate devices, the tekmar 552 Thermostat has you covered.
  • Temperature Monitoring
  • The tekmar 552 has built-in humidity and temperature sensors for evaluating and managing the relative humidity level heating and air temperature of your room. The 552 Thermostat has auxiliary inputs for two additional sensors.
  • It supports a number of different auxiliary sensors, allowing you to customize the information that your system receives in a way that optimizes performance. You can control air and floor temperatures if you connect a slab sensor to your thermostat.
  • If your tekmar 552 Thermostat is connected to an outdoor reset sensor, directly or through tekmarNet, then it has warm weather shut down to prevent overuse of energy when outdoor temperatures are high.
  • Product Note
    A tekmarNet 4 Wiring Center or Zone Manager is required for power and communication. This thermostat may be used in a stand-alone capacity.
Specifications
General Information
Stages
Single-Stage
Switch Contact Type
Digital
System Type
Heating
Voltage Type
Low-Voltage
Programmable
Yes
Power Source
Hard Wired
Interface
Touchscreen
Dimensions
Product Height
5 Inches
Product Width
3 1/4 Inches
Product Depth
15/16 Inch
Product Weight
0.8 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+
Specifications
General Information
Stages
Single-Stage
Switch Contact Type
Digital
System Type
Heating
Voltage Type
Low-Voltage
Programmable
Yes
Power Source
Hard Wired
Interface
Touchscreen
Dimensions
Product Height
5 Inches
Product Width
3 1/4 Inches
Product Depth
15/16 Inch
Product Weight
0.8 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Reviews
(2)
+
Tekmar 552 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Chris, the eComfort Product Expert
icon-social-fb1
+
When wiring the "tekmar smart" heating system in my new home, what size and strand of control wires should I install to the Tekmar 552 thermostats while using the Tekmar 315 wiring center ? (6 zone system)
Steve
from Connecticut
May 25, 2016
Answer
18 AWG solid wire is recommended for connecting the thermostat.
