Taco Zone Switching Relay - Four Zones - Expandable

Taco Zone Switching Relay - Four Zones - Expandable
Our Price
Compare Prices
Shipping Info
Model: SR504-EXP-4
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Shipping Info
Shipping Info
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

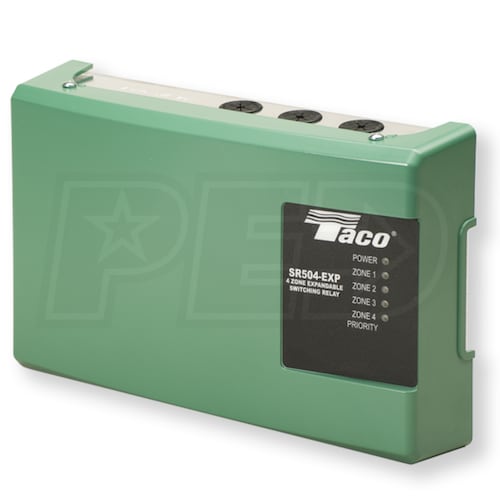

    Taco's SR504-EXP-4 is a four zone zone pump switching relay. With universal thermostat compatibility, it is designed to integrate quickly and effortlessly into any hydronic system, bringing Taco reliability to your zoned operations. Post purge and pump exercise operation modes will run your pumps briefly after calls for heat or long periods of inactivity. These improve the efficiency and dependability of your system, respectively. The SR504-EXP-4's enclosure is unobtrusive and easy to mount in tight spaces, and the PC board was designed for quick maintenance and clean, simple wiring.
  • Simple Servicing
  • Easy-to-interpret external diagnostic lights and "ice cube" style replaceable relays mean that servicing a Taco switching relay is always easy.
  • Protected Priority Switching
  • With the SR504-EXP-4, a single zone may be designated as a priority zone whose heating demands are given precedence over other zones. Other demands will be met when the priority zone is satisfied or after sixty minutes of priority operation.
  • Expandable
  • Taco's -EXP switching relays may be combined with other relays or expandable Taco zone valve controls for large scale zoning applications. Up to 20 zoning panels may be connected together.
  • Add-On Power Controls
  • The SR504-EXP-4 is compatible with Taco's PC700 line of supplemental controls. It's easy to add outdoor temperature reset via variable speed pump mixing or boiler reset control.
  • Product Compatible With
  • Taco -EXP Expandable Zone Controls
Specifications
General Information
Number of Zones A zone is a room or area within a building that has its own temperature control.
4
UPC
687752857610
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Maximum Load
20 Amps
Dimensions
Product Height
7 Inches
Product Width
10.75 Inches
Product Depth
2.75 Inches
Shipping Weight
5 Pounds
Certifications
UL Listed
Yes
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Features
Features
    Taco's SR504-EXP-4 is a four zone zone pump switching relay. With universal thermostat compatibility, it is designed to integrate quickly and effortlessly into any hydronic system, bringing Taco reliability to your zoned operations. Post purge and pump exercise operation modes will run your pumps briefly after calls for heat or long periods of inactivity. These improve the efficiency and dependability of your system, respectively. The SR504-EXP-4's enclosure is unobtrusive and easy to mount in tight spaces, and the PC board was designed for quick maintenance and clean, simple wiring.
  • Simple Servicing
  • Easy-to-interpret external diagnostic lights and "ice cube" style replaceable relays mean that servicing a Taco switching relay is always easy.
  • Protected Priority Switching
  • With the SR504-EXP-4, a single zone may be designated as a priority zone whose heating demands are given precedence over other zones. Other demands will be met when the priority zone is satisfied or after sixty minutes of priority operation.
  • Expandable
  • Taco's -EXP switching relays may be combined with other relays or expandable Taco zone valve controls for large scale zoning applications. Up to 20 zoning panels may be connected together.
  • Add-On Power Controls
  • The SR504-EXP-4 is compatible with Taco's PC700 line of supplemental controls. It's easy to add outdoor temperature reset via variable speed pump mixing or boiler reset control.
  • Product Compatible With
  • Taco -EXP Expandable Zone Controls
Specifications
General Information
Number of Zones A zone is a room or area within a building that has its own temperature control.
4
UPC
687752857610
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Maximum Load
20 Amps
Dimensions
Product Height
7 Inches
Product Width
10.75 Inches
Product Depth
2.75 Inches
Shipping Weight
5 Pounds
Certifications
UL Listed
Yes
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Product Specs
+
Specifications
General Information
Number of Zones A zone is a room or area within a building that has its own temperature control.
4
UPC
687752857610
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Maximum Load
20 Amps
Dimensions
Product Height
7 Inches
Product Width
10.75 Inches
Product Depth
2.75 Inches
Shipping Weight
5 Pounds
Certifications
UL Listed
Yes
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
