Taco LeakBreaker® Water Heater Shut-Off - 3/4" NPT

Model:

LB-075-H-1LF

Write A Review
$181.00
Holiday Shipping Schedule
Holiday Schedule -
In-Stock
Ships in 1-2 Business Days
Shipping to60601
synchrony card logo
$31 / Month
Suggested monthly payments with 6 month financing.
Taco LeakBreaker® Water Heater Shut-Off - 3/4
Taco LeakBreaker® Water Heater Shut-Off - 3/4" NPT
Model: LB-075-H-1LF
$181.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

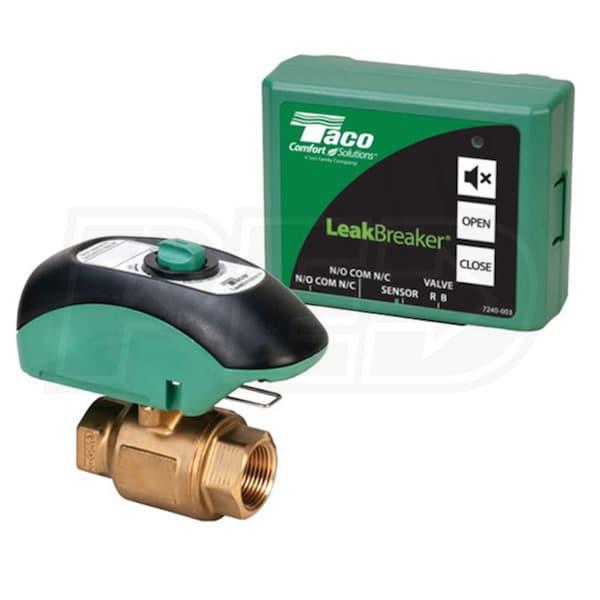

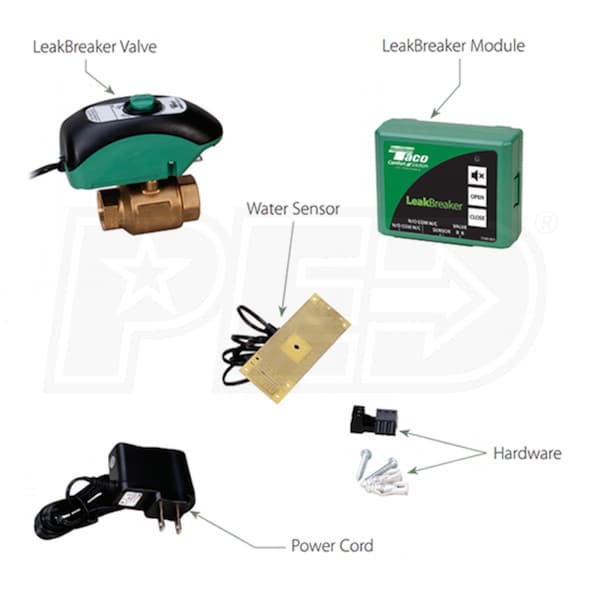

    The Taco LeakBreaker® is a leak detection device that prevents flood damage from leaks in a water heater. Consisting of a control unit, valve with actuator and sensor, the LeakBreaker® can be easily installed on any water heater and is designed to shut off the incoming cold water supply as soon as a leak is detected. This protection device features test and reset functions, along with a multi-color LED light and audible alarm to let you know the status of the LeakBreaker® at all times.
  • Immediate Detection
  • The LeakBreaker® features a highly responsive water sensor that detects even the slightest amount of moisture. A signal is then sent to the valve's actuator to immediately shut off the incoming water supply.
  • Quick Installation

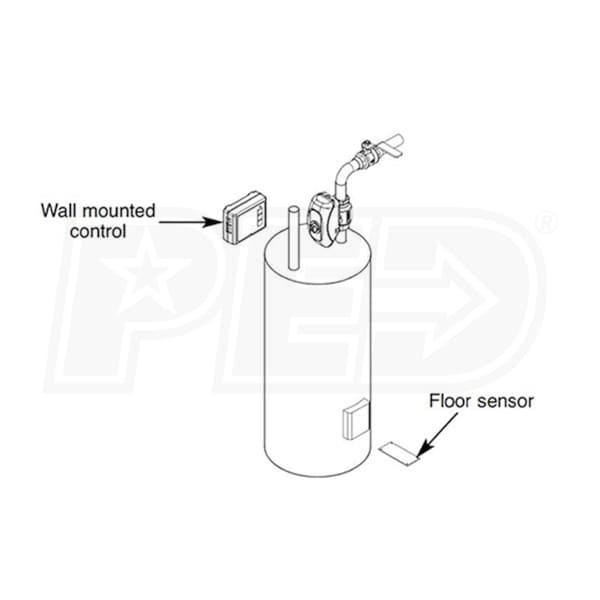

  • The LeakBreaker's® plumb and plug design is engineered to make new and retrofit installations a breeze. Components come pre-wired to further simplify the process - just plug in the sensor, valve, and power supply to ensure leak damage protection.
  • Resettable, Testable
  • Taco's LeakBreaker® features test and reset functions, allowing you to ensure the device is working properly. The controller includes a switch to open and close the actuator at any time, along with a manual alarm shut-off.
  • Battery Backup
  • The Leakbreaker® can be powered with batteries, meaning you'll never miss a leak during power outages.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

LB-075-H-1LF
specs product image PID-80312
Overview
Product Category
Water Heater Accessories
UPC
687752422375
General Information
Type
Water Heater Shut-Off
Product Line
LeakBreaker
Product Category
Water Heater Accessories
Connection Type
NPT
Material
Brass
Potable Water Usage
Yes
Performance
Maximum Fluid Temperature
220 F
Maximum Operating Pressure
140 PSI
Maximum Static Pressure
300 PSI
Maximum Shut Off Pressure
125 PSI
Maximum Ambient Temperature
135 F
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Connection Size
3/4 Inch
Product Height
4 3/8 Inches
Product Width
3 Inches
Product Depth
4 7/8 Inches
Shipping Weight
3 Pounds
Certifications
NSF Certified Learn More
NSF Certified
The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
Yes
Lead Free
Yes
