Product Description
+−
Features
Features

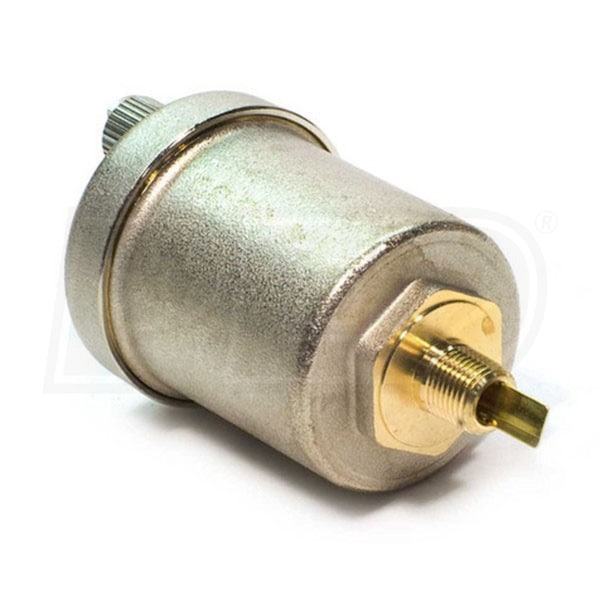

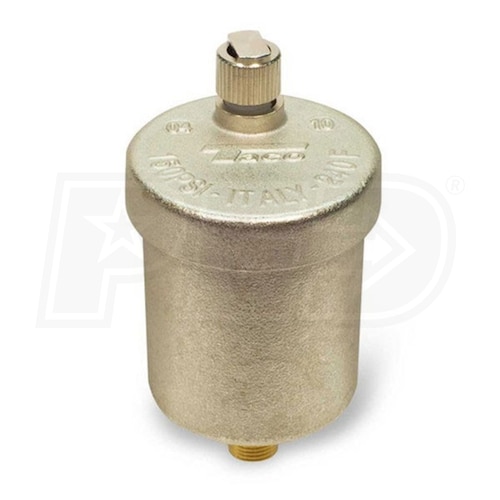

Hy-Vents purge unwanted air from hydronic systems, keeping them running efficiently and quietly. When air is trapped in pipes and valves, it leads to disruptive noise levels and lost heat energy. The 416-2 uses a float type venting action that detects and expels air automatically. Adding Taco Hy-Vents to your hydronic system is a straightforward, smart way to keep everything running reliably and effectively.
Slimmed Down
The 416-2 is a Slim-Line Hy-Vent. It features compact dimensions that it make it ideal for applications where space is at a premium.
Simple Servicing
Hy-Vent automatic air vents feature an easy-to-remove vent cap that allows for quick spot checks and easy maintenance. Alternatively, this vent cap may be sealed for safe system servicing.
Bubble Breaker
The 416-2 has a small, bubble-breaking fin at the base of the unit. This fin extends into your pipe where it disrupts large air bubbles, making them easier to vent.
Product Compatible With
Taco 431-6 Air Scoop
Taco 432-6 Air Scoop
Taco 433-5 Air Scoop
Taco 434-5 Air Scoop
Taco 435-5 Air Scoop
Taco 436-5 Air Scoop
Taco 437-1 Air Scoop
Specifications
General Information
Product Line
Hy-Vent
Connection Type
NPT
UPC
687752878622
Performance
Maximum Operating Pressure
150 PSI
Maximum Fluid Temperature
240 F
Dimensions
Connection Size
1/8 Inch
Product Height
3 1/8 Inches
Product Width
1 1/2 Inches
Product Depth
1 1/2 Inches
Shipping Weight
0.25 Pounds
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
Hy-Vents purge unwanted air from hydronic systems, keeping them running efficiently and quietly. When air is trapped in pipes and valves, it leads to disruptive noise levels and lost heat energy. The 416-2 uses a float type venting action that detects and expels air automatically. Adding Taco Hy-Vents to your hydronic system is a straightforward, smart way to keep everything running reliably and effectively.
Slimmed Down
The 416-2 is a Slim-Line Hy-Vent. It features compact dimensions that it make it ideal for applications where space is at a premium.
Simple Servicing
Hy-Vent automatic air vents feature an easy-to-remove vent cap that allows for quick spot checks and easy maintenance. Alternatively, this vent cap may be sealed for safe system servicing.
Bubble Breaker
The 416-2 has a small, bubble-breaking fin at the base of the unit. This fin extends into your pipe where it disrupts large air bubbles, making them easier to vent.
Product Compatible With
Taco 431-6 Air Scoop
Taco 432-6 Air Scoop
Taco 433-5 Air Scoop
Taco 434-5 Air Scoop
Taco 435-5 Air Scoop
Taco 436-5 Air Scoop
Taco 437-1 Air Scoop
Specifications
General Information
Product Line
Hy-Vent
Connection Type
NPT
UPC
687752878622
Performance
Maximum Operating Pressure
150 PSI
Maximum Fluid Temperature
240 F
Dimensions
Connection Size
1/8 Inch
Product Height
3 1/8 Inches
Product Width
1 1/2 Inches
Product Depth
1 1/2 Inches
Shipping Weight
0.25 Pounds
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+−
Specifications
General Information
Product Line
Hy-Vent
Connection Type
NPT
UPC
687752878622
Performance
Maximum Operating Pressure
150 PSI
Maximum Fluid Temperature
240 F
Dimensions
Connection Size
1/8 Inch
Product Height
3 1/8 Inches
Product Width
1 1/2 Inches
Product Depth
1 1/2 Inches
Shipping Weight
0.25 Pounds
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
