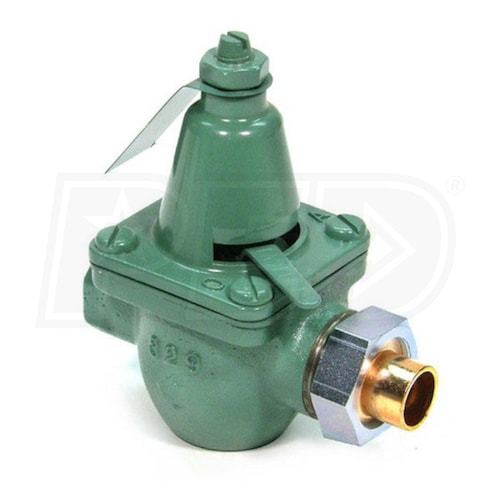

Taco Fast Fill Reducing Valve - Cast Iron - 1/2" NPT Union Inlet - 1/2" NPT Outlet
Taco Fast Fill Reducing Valve - Cast Iron - 1/2" NPT Union Inlet - 1/2" NPT Outlet
+
Share This Product
-
Product Description
-
Reviews
-
1Product Q&A
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
Taco's Fast Fill boiler feed reducing valves are the perfect solution to low pressure problems in your hydronic system. The adjustable pressure range of the Fast Fill line makes it easy to optimize your system. Set your desired system pressure, and the 329-T3 will maintain that pressure by adding water to your system automatically. An internal check prevents your system from emptying in the event of a pressure failure. Purging a system with Fast Fill valves is a breeze as the Fast Fill lever may be locked in the open position, overriding typical circulation processes.
Specifications
General Information
Material
Cast Iron
UPC
687752022261
Performance
Maximum Fluid Temperature
212 F
Maximum Operating Pressure
100 PSI
Dimensions
End 1 Connection Type
NPT Union
End 1 Connection Size
1/2 Inch
End 2 Connection Type
NPT
End 2 Connection Size
1/2 Inch
Product Height
5 1/8 Inches
Product Width
4 3/4 Inches
Shipping Weight
1.75 Pounds
Warranty Information
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
Taco's Fast Fill boiler feed reducing valves are the perfect solution to low pressure problems in your hydronic system. The adjustable pressure range of the Fast Fill line makes it easy to optimize your system. Set your desired system pressure, and the 329-T3 will maintain that pressure by adding water to your system automatically. An internal check prevents your system from emptying in the event of a pressure failure. Purging a system with Fast Fill valves is a breeze as the Fast Fill lever may be locked in the open position, overriding typical circulation processes.
Specifications
General Information
Material
Cast Iron
UPC
687752022261
Performance
Maximum Fluid Temperature
212 F
Maximum Operating Pressure
100 PSI
Dimensions
End 1 Connection Type
NPT Union
End 1 Connection Size
1/2 Inch
End 2 Connection Type
NPT
End 2 Connection Size
1/2 Inch
Product Height
5 1/8 Inches
Product Width
4 3/4 Inches
Shipping Weight
1.75 Pounds
Warranty Information
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+−
Specifications
General Information
Material
Cast Iron
UPC
687752022261
Performance
Maximum Fluid Temperature
212 F
Maximum Operating Pressure
100 PSI
Dimensions
End 1 Connection Type
NPT Union
End 1 Connection Size
1/2 Inch
End 2 Connection Type
NPT
End 2 Connection Size
1/2 Inch
Product Height
5 1/8 Inches
Product Width
4 3/4 Inches
Shipping Weight
1.75 Pounds
Warranty Information
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Bob, the Heating Product Expert
+−
How do you lower pressure on this valve? Mine is delivering 30 PSI to the boiler and making relief valve drip.
Chris
from Colorado
December 02, 2016
Answer
The boiler feed valve should be factory set at 12 psi, but there are a couple things you can check to make sure it is set properly. First, make sure the fast fill lever is in the "A" position. If the pressure is still too high, loosen the lock nut on top and turn the screw counterclockwise several turns. Then release the pressure in your system and slowly turn the screw clockwise until your gauge reads the desired pressure. Finally, re-tighten the lock nut. For further details, see page 2 of the instruction manual.
