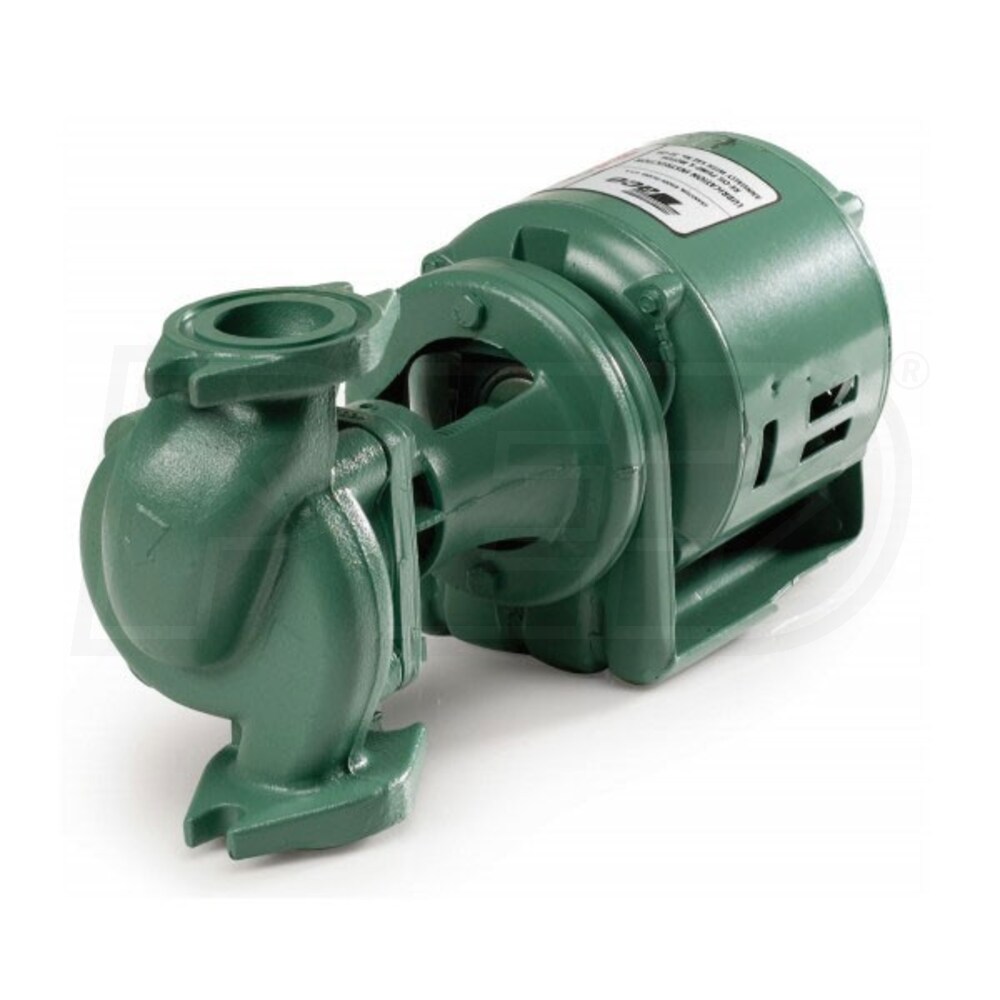

Taco 110 Series - 1/12 HP - In-Line Circulator Pump - Cast Iron - Flange

Model:

110-24

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Taco 110 Series - 1/12 HP - In-Line Circulator Pump - Cast Iron - Flange
Taco 110 Series - 1/12 HP - In-Line Circulator Pump - Cast Iron - Flange
Model: 110-24
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Taco is at the forefront of circulator innovation. Their drive to provide the most efficient, reliable pumps in the industry can be seen across their entire catalog. A member of the Red Baron line, the 110-24 is a well-rounded in-line circulator suited for a variety of applications. In this line, Taco has found the perfect blend of durability and efficiency. The 110-24 is a remarkably reliable circulator, designed to operate without frequent servicing. In the event your circulator does need a tune-up, service is quick, easy, and does not require any unconventional tools. A low maintenance design is coupled with durable components to provide you peace of mind. With Taco, your hydronic circulation is in good hands.
  • Advanced Motor
  • Red Baron circulators use a split-phase motor, which is known for its high starting torque and minimal energy loss. The included sleeve bearings guarantee that your 110-24 is not just efficient, but quiet as well.
  • Dependability
  • The 110-24 is well built top-to-bottom. Reliable one-piece construction is used for the impeller and spring coupling, while the seal assemblies are made from a durable carbon/ceramic blend.
  • Typical Product Applications
  • Hydronic Heating and Cooling
  • Zoning Large Installations
  • Product Note
    Cast iron cannot be used in domestic hot water or potable water applications.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

110-24
specs product image PID-33295
Overview
Product Category
Boiler Accessories
UPC
687752005547
General Information
Product Line
100
Product Category
Boiler Accessories
Motor Type
Single Speed
Connection Type
Flanged
Material
Cast Iron
Flange Orientation
Standard
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
No
Performance
Maximum Head
7.5 Feet
Maximum Flow Rate
33 GPM
Maximum Fluid Temperature
240 F
Horsepower
0.083
Maximum Operating Pressure
125 PSI
RPM
1725 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
7 7/8 Inches
Product Depth
14 5/8 Inches
Product Weight
21 Pounds
Shipping Weight
23 Pounds
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
